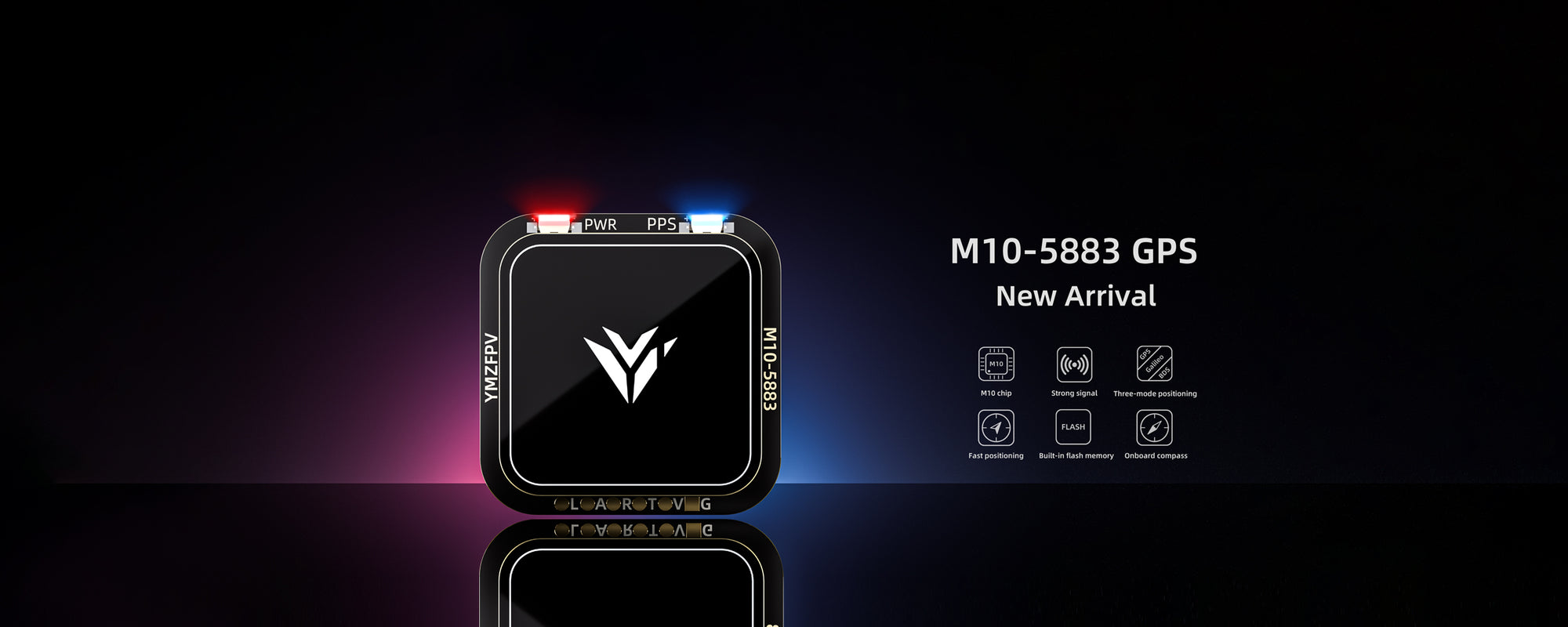

YMZFPV M10-5883 GPS w/Compass (10th gen)

22.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Experience superior navigation performance with the YMZFPV M10-5883 GPS (10th gen). Fast positioning, high accuracy, and strong signal reception lets you stay on course in any environment. Take the worry out of navigation with this reliable, 10th-generation GPS.

          Check out our other GPS options and the rest of our YMZFPV Products

          Features

          • Based on the new generation of M10050 chip, this product has a fast speed for star search and high positioning accuracy.
          • Using Nissan's LNA amplifier and custom the fine-tuned antenna of ceramic and three-frequency
          • This product can support: GPS Galileo, BDS three kinds of satellite system positioning to meet the positioning needs of users in different countries and regions
          • Built-in Flash chip, allowing you to use the U-CENTER software for personalized settings
          • The onboard electronic compass provides accurate orientation
          • The LED indicator of the side
          • High safety, and the protection circuit is designed in 5V and GND
          • The on-board farad capacitor can save the current satellite information for about 45-90min for a fast hot start

            Specifications

            • Model: M10-5883
            • MCU-Ublox-M10050
            • GNSS: GPS, Galileo, BDS
            • Protocol Ublox
            • Frequency: 5Hz (Max. 10Hz)
            • Flash: Onboard FLASH (Modifiable)
            • Tracking sensitivity: -167dBm
            • Speed precision: 0.05m/s
            • Maximum speed: 500m/s
            • Maximum acceleration: 50000m
            • Positioning accuracy: 1.5m CEP (ideal environment)
            • Cold start: 26s
            • Hot start: 1s
            • Input voltage: 3.3V-5V
            • Dimension: 29 x 29 x 8.4mm
            • Weight: 12.8g

            Includes

            • 1xYMZFPV M10-5883 GPS w/Compass (10th gen)
