Lightweight design, ultra-thin experience

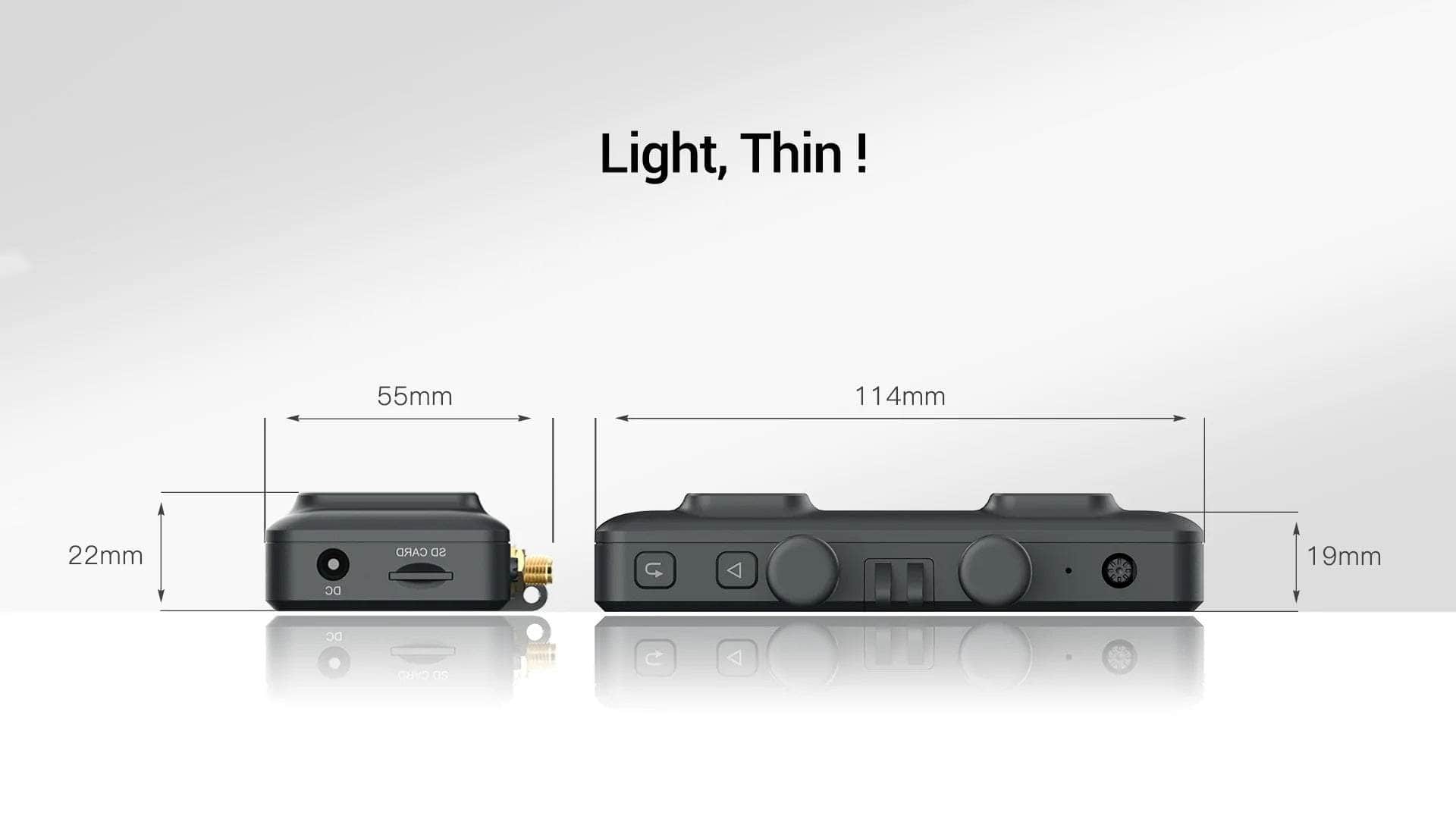

The Walksnail Avatar VRX Kit Combo is only 83g and comes with 114x55x22mm; a size easy to carry.

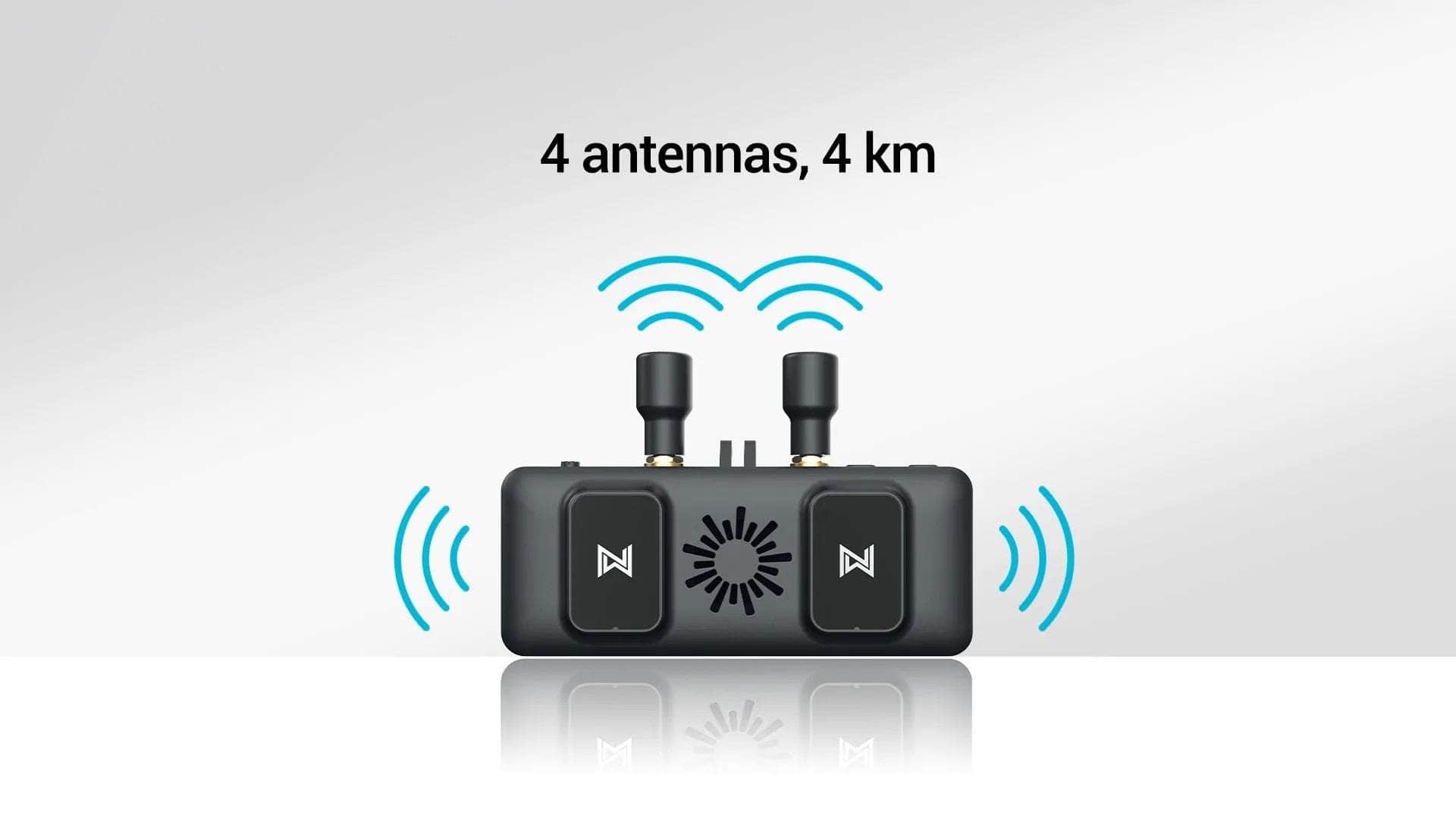

Walksnail VRX adopts a 4-antenna design. 2 directional antennas and the maximum transmission distance is 4km

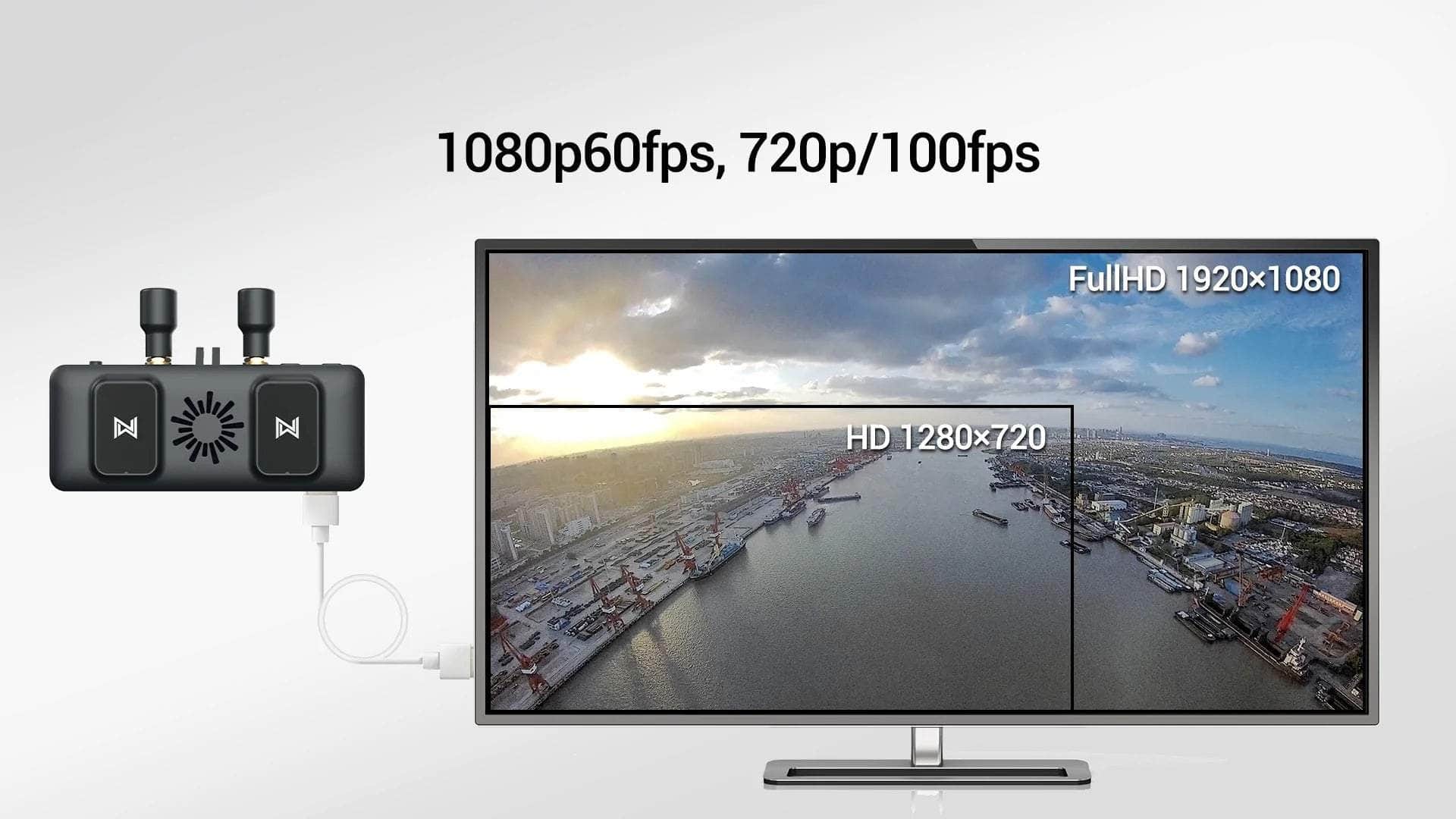

1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

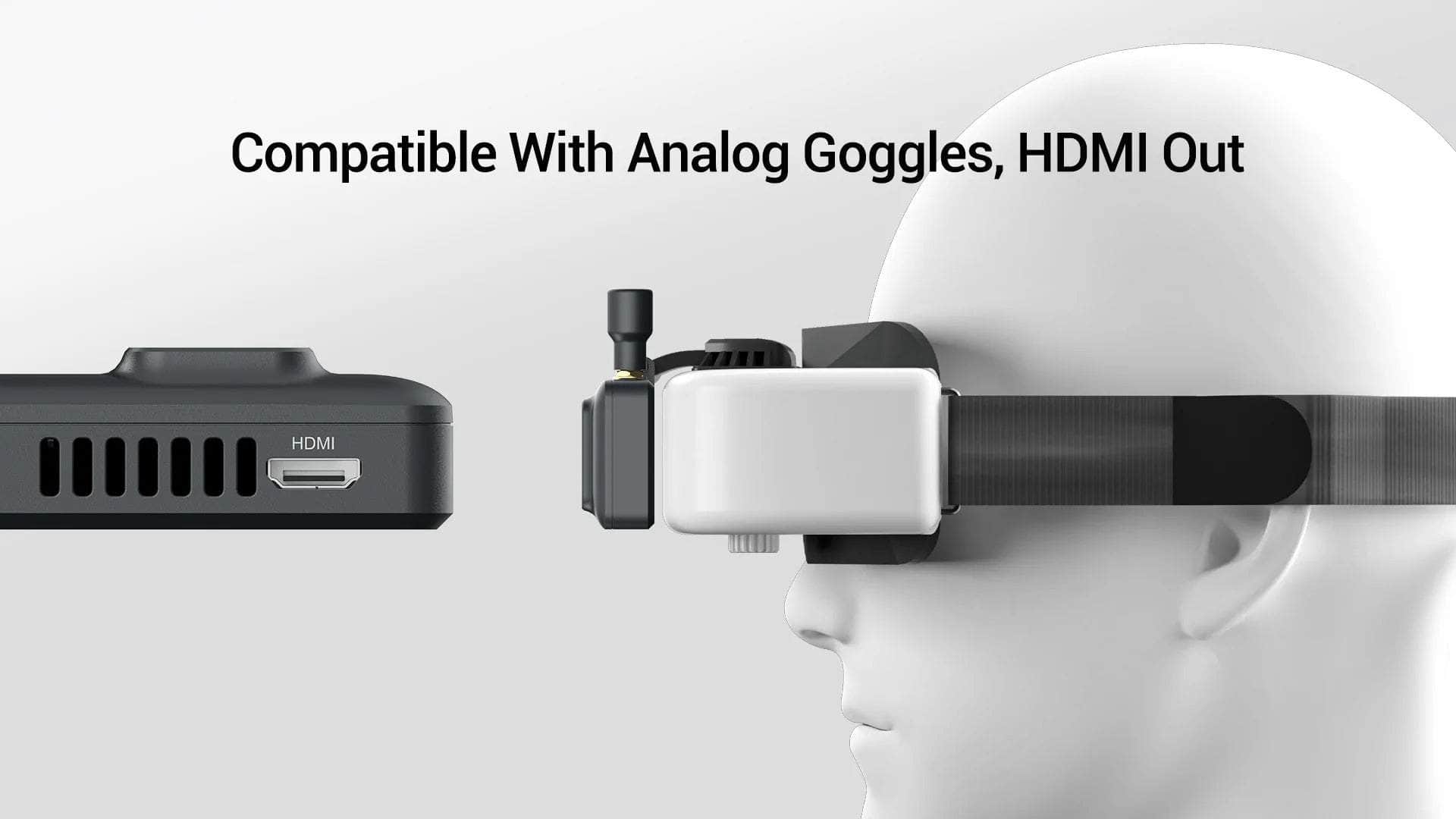

HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system

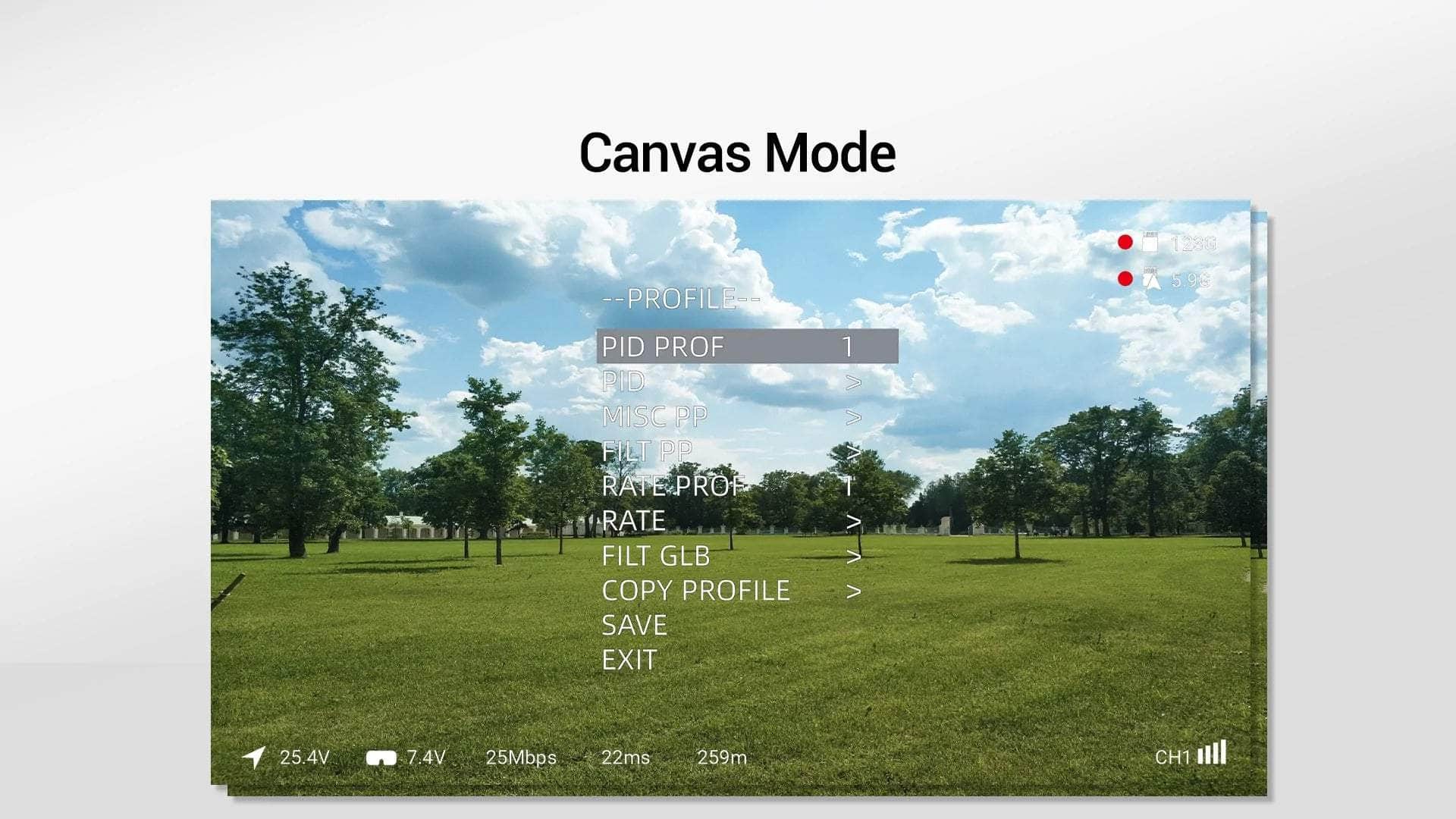

Canvas Mode
Supports Betaflight, INAV, and KISS with full OSD.
You can easily adjust the parameters you want by remote control.
Specification
AVATAR HD NANO CAMERA
- Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
- Aspect Ration: 16/9 and 4/3 Switchable
- Minimum Illumination: 0.001Lux
- Shutter Style: Rolling Shutter
- Dimensions: 14x14x17mm
- Cable Length: 90mm
- Image Sensor: 1/27'
- Field Of View: 170°
- Aperture: F 2.0
- Lens: 2.1mm
- Weight: 3.5g
AVATAR MINI 1S VTX MODULE
- Transition Power: FCC<25.5dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
- I/O Interface: JST1.0 x 6 (Power In) to JST1.0 x 4 (USB)
- Operational Frequency: 5.725-5.850GHz
- Operating Temperature: -20° to 40°c
- Supported FC Firmware: Betaflight
- Video Resolution: 1080p / 720p
- Dimensions: 33x33x6.5mm
- Antenna Connector: IPEX
- Bitrate: 25mbps/50mbps
- Mounting: 25.5x25.5mm
- Latency: 22ms Average
- Internal Storage: 32GB
- Input Voltage: 3.1-13V
- OSD: Canvas Mode
- Weight: 6.8g
- Channels: 8
Avatar HD VRX
- Model Avatar HD VRX
- CommunicationFrequency: 5.725-5.850GHz
- TransmitterPower: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
- I/O Interface: HDMI, micro SD card slot, DC5.5x2.1mm
- HDMI output: 1080p/60fps, 720p/100fps, 720p/60fps
- Power Input: 7-21V(2S-5S)
- SD Card Support: 256G
- System: Avatar HD system
Includes:
Avatar VRX: (or buy alone)
- RedBirdAntenna x2
- HDMI cable x1
- 2-in-1 DCPowerCable x1
- 1x Walksnail Avatar HD Nano Camera w/ Avatar Mini 1S VTX
- 1x 6-Pin Power Cable
- 2x M2 4mm Screws
- 1x 4-Pin USB Cable
