Ummagawd Botgrinder Grinderino 3.5 Micro Frame Kit

44.95
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          Once again, Botgrinder and the Ummagawd team make another absolute banger of a frame. - Imagine a Demibot-level frame but in a smaller package!   This frame will fit a single board whoop-style AIO or a 20 x 20 stack. The rear of the frame provides plenty of space to fit a VTX of your choice, and just the same, the front will accommodate any camera. Now updated to fit both 9x9 & 12x12 motor mounts! And, despite its size, it's still under 250g all-up weight!

          UPDATE: The Grinderino arms are now compatible with 9x9mm motor mounting!

          Be sure to check out all our 3.5' frames, as well as the rest of our Ummagawd selection!

          Specifications

          • Arms: 4mm
          • Top Plate: 2mm
          • Bottom Plate: 2mm
          • Mid Plate: 2mm
          • Standoffs: 6mm OD 7075 Aluminum
          • FC Mounting: 20x20 and 25.5x25.5 (whoop style)
          • VTX Mounting: 20x20 and 25.5x25.5 (whoop style)
          • Frame Weight: 65g
          • Motor Mounting Pattern: 9mm x 9mm &12mm x 12mm

          Includes

          • 1x Ummagawd Botgrinder Grinderino 3.5' Freestyle Micro Frame Kit
          • 1x Top Plate
          • 4x Arms
          • 1x Bottom Plate
          • 1x Mid Plate (with press nuts)
          • 1x Hardware Kit
          • 1x Ummagrip Battery Pad
          • 2x Battery Straps
          • 1x Set of TPU FPV Camera Mounts

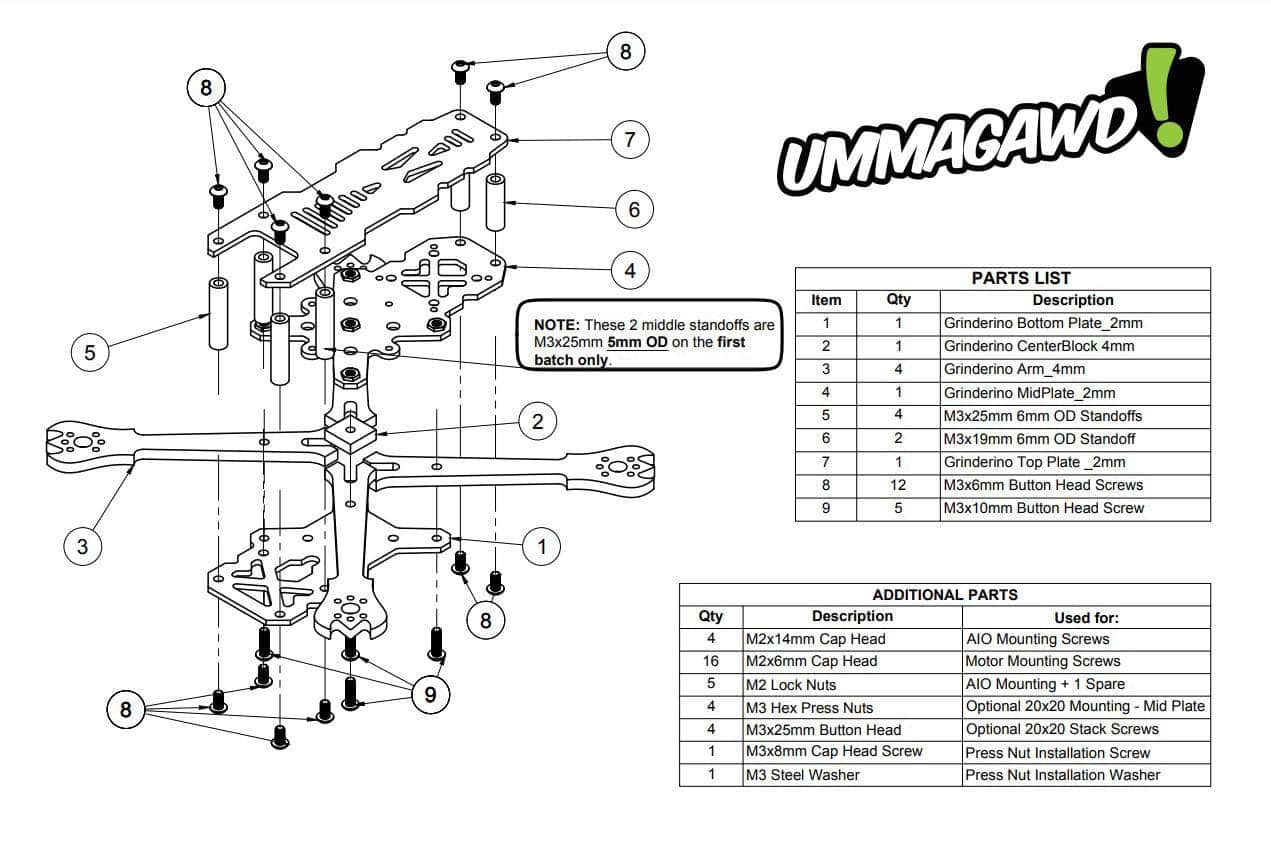

          Build Diagram

          Ummagawd Botgrinder Grinderino 3.5
