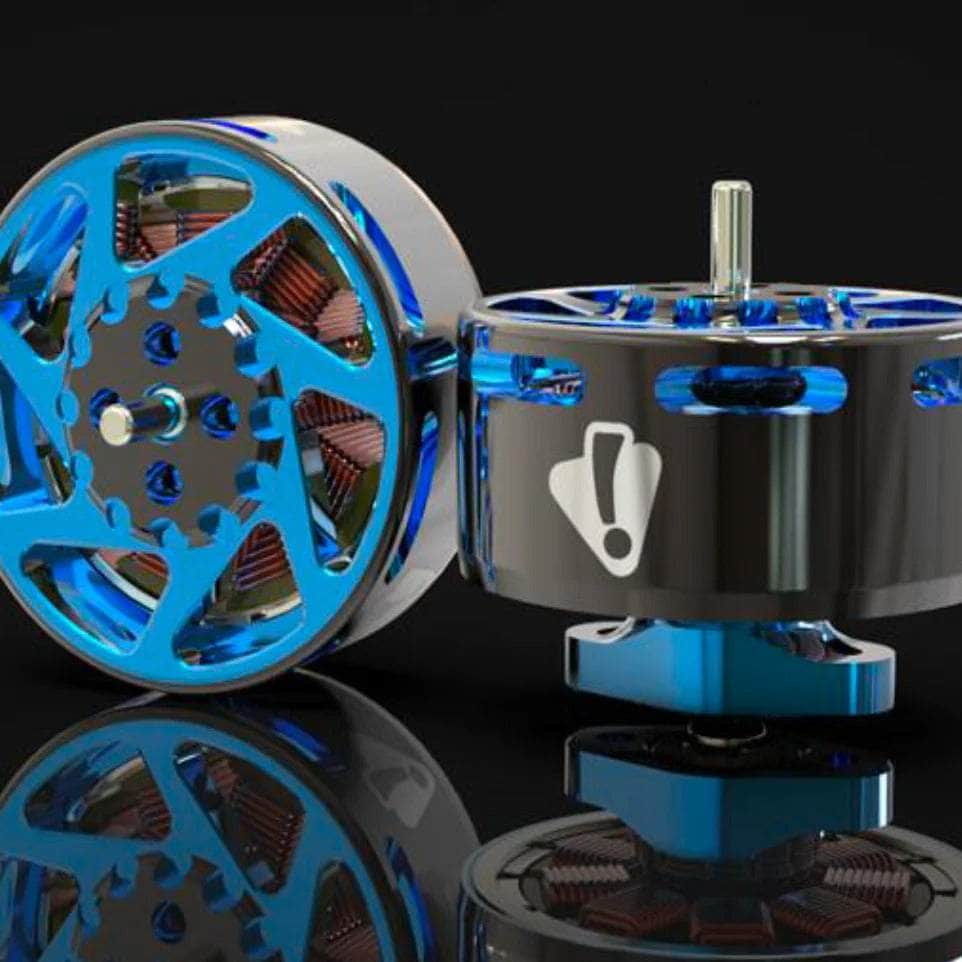

Experience high performance with the Ummagawd Aerolite Motor. Featuring a 1605 size and 3600Kv, this gunmetal and blue motor is engineered for optimum power and thrust for FPV racing for a smooth and efficient flight.
Check out our vast brushless motors selection, and make sure to check out our other Ummagawd products!
NOTE: The titanium screws use a M1.3 hex driver and is a 12x12 mounting configuration. This motor is designed specifically for the Ummagawd 2fiddy and the Ummagawd Grinderino frame, it may not work with other frames.

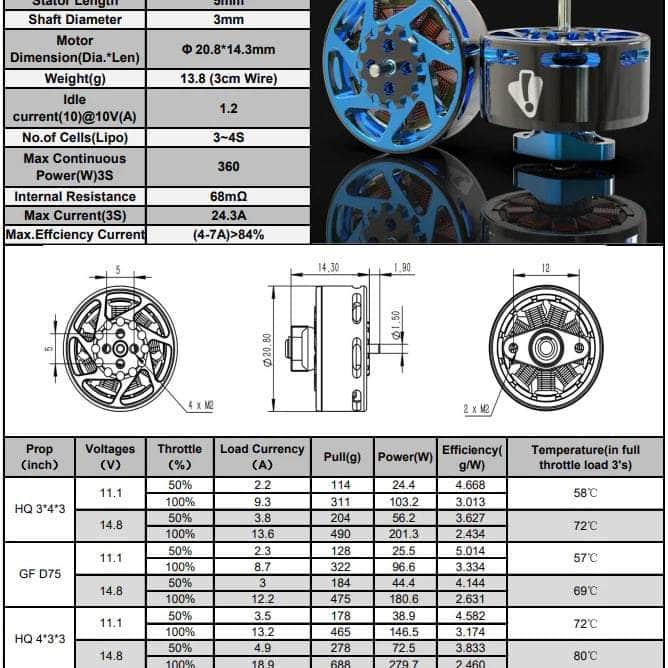

Specifications
- Kv: 3600Kv
- Installation hole position: 12×12mm，M2
- Prop mounting shaft diameter: 1.5mm
- Lead: 20#AWG 150mm
- Stator Length: 5mm
- Shaft Diameter: 3mm
- Stator Diameter: 22mm
- Idle Current: Idle Current (10 Seconds)@10V: 1.2A
- Weight: 13.8g (2cm Wires)
- Internal Resistance: 68mΩ
- Max Current (3S): 24.3A
- Max. Efficiency Current: (4-7A)>83%
- Max Continuous Power (W) 3S: 360
- Rated Voltage (Lipo): 2-4S
Includes
- 1x Ummagawd Aerolite 1605 3600Kv Motor - Gunmetal & Blue
- 1x Hardware Set
