UltraPower UP7 400W 10A 1-6S Dual Channel AC/DC Smart Charger

Ultrapower UP7 400W 10A Dual Channel AC/DC Charger is a powerful smart charger specially designed for RC hobby.

Check out our UltraPower Chargers and all our battery chargers and accessories!

Features

• Two independent shuttle key to control the charger.
• Wireless charging port, support to charge at Max.10W.

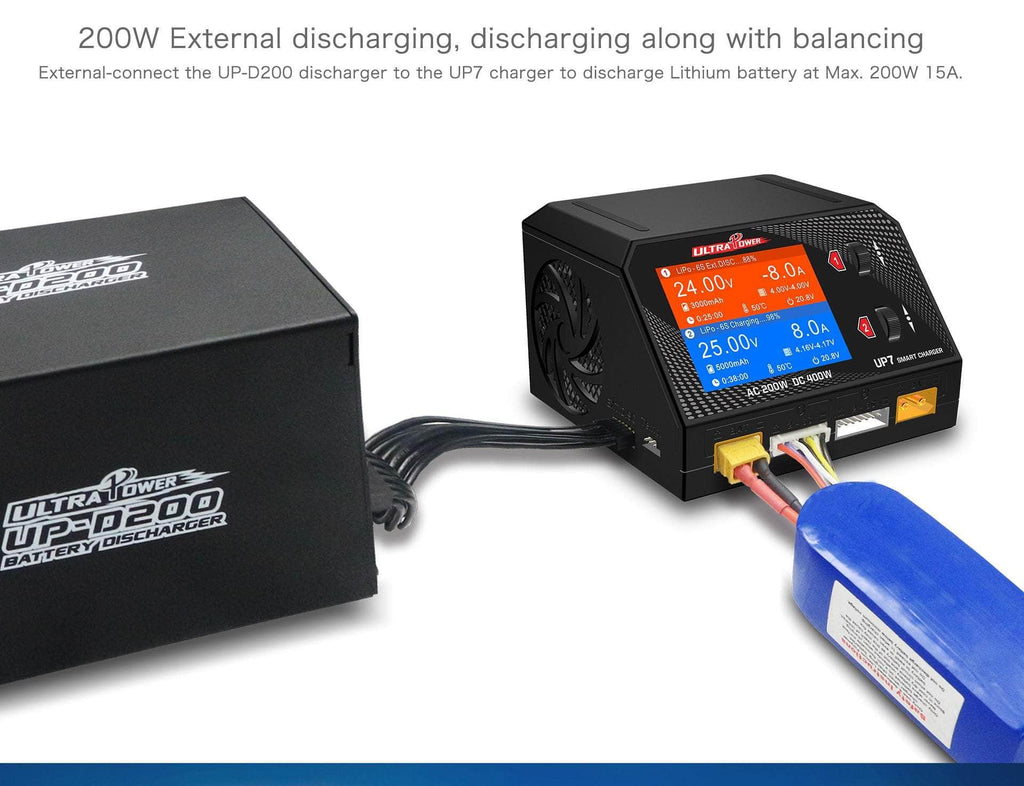

• Support external discharging at Max. 200W, 15A.

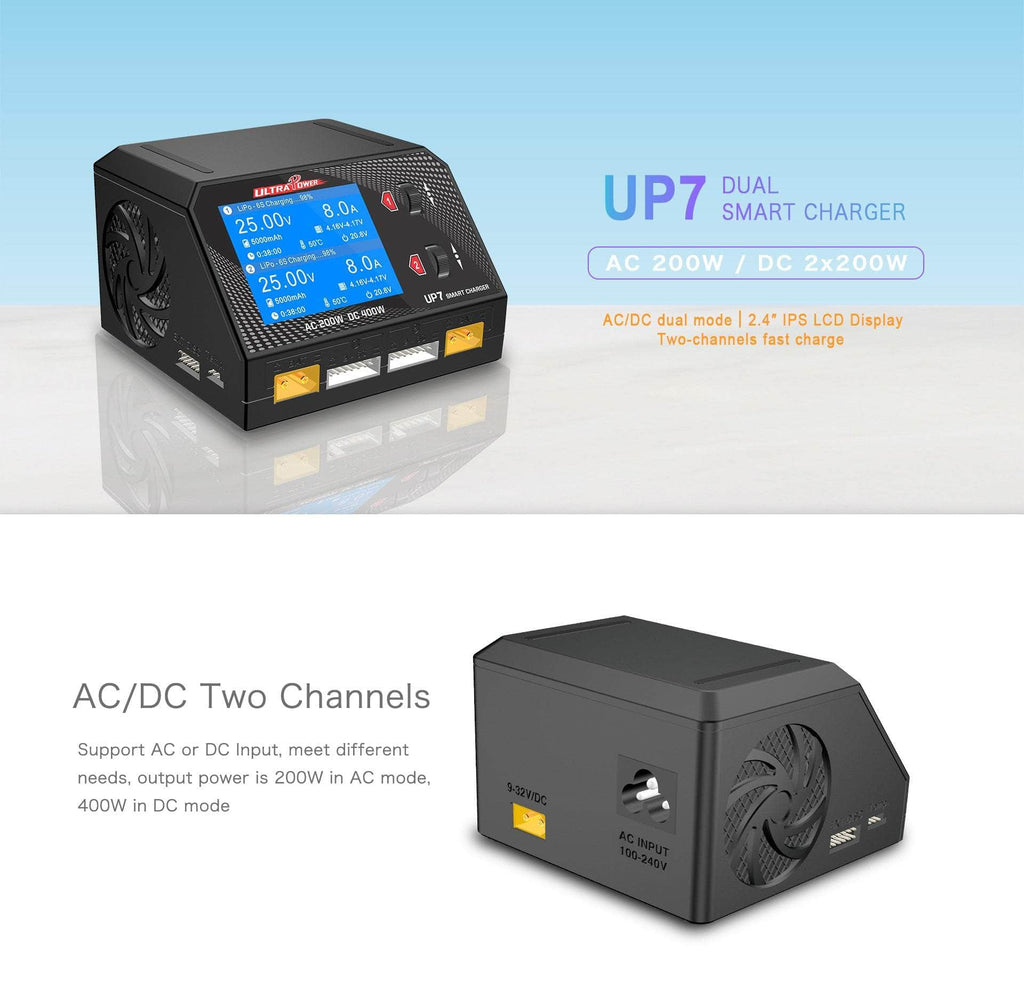

• Support power distribution both in AC and DC mode.
• PC Control & Firmware Upgrade
• LiHV capable

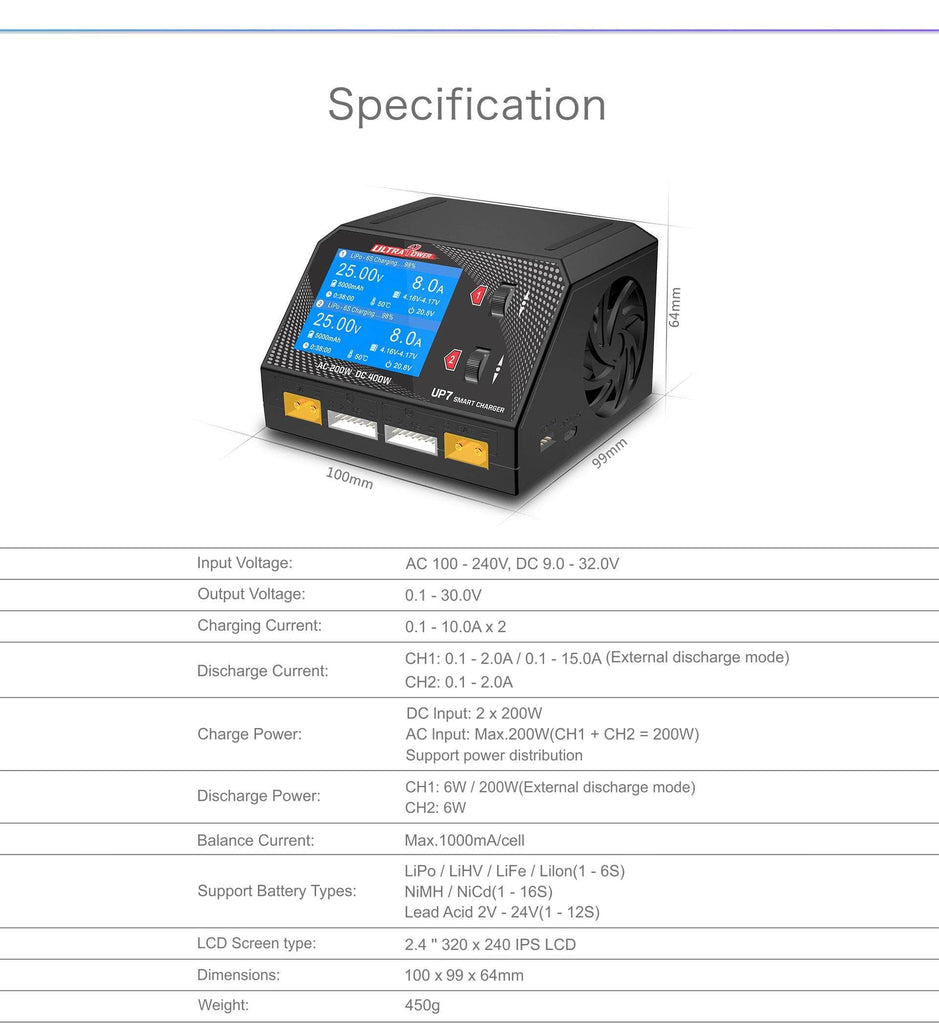

Specifications

• Input Voltage: AC 100 ~ 240 V, DC 9.0 ~32.0 V
• Output Voltage: 0.1~30.0 V
• Charging Current: 0.1~10.0 Ax2
• Discharging Current
• CH1: 0.1~ 2.0 A/0.1~15.0 A (External discharge mode)
• CH2: 0.1~2.0 A
• Charge Power
• DC Input: 2x200 W
• AC Input: Max 200 W (CH1 + CH2=200 W)
• Support power distribution
• Discharge Power
• CH1: 6 W/200 W (External discharge mode)
• CH2: 6 W
• Balance Current: Max 1000 mA/cell
• Support Battery Types:
• LiPo / LiHV / LiFe / Lilon (1~6S)
• NiMH / NiCd (1~16S)
• Lead Acid 2 V~24 V (1~12S)

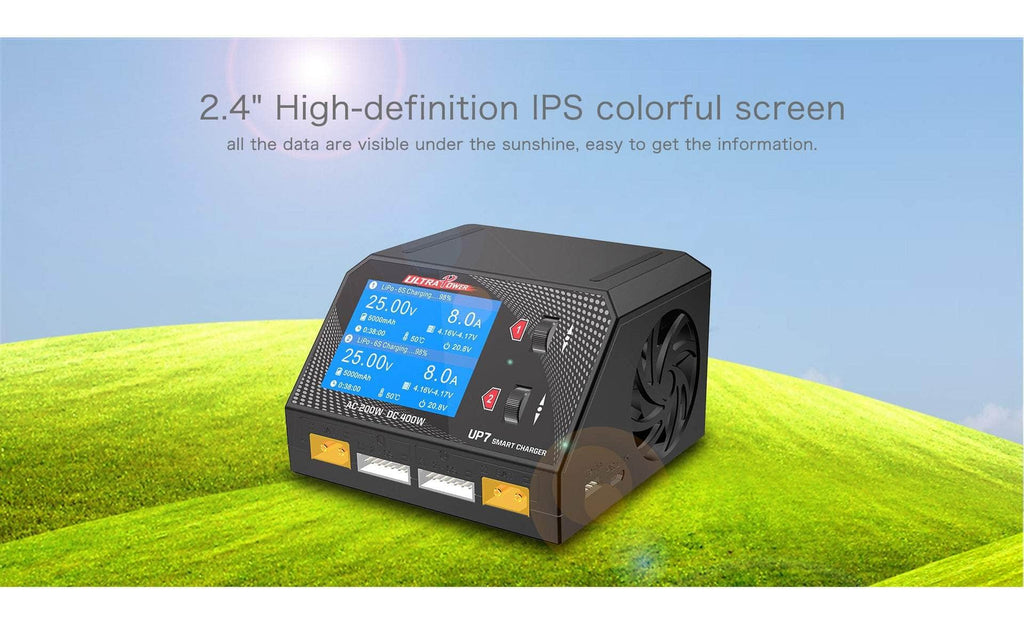

• LCD Screen Type: 2.4″ 320x240 IPS LCD
• Dimensions: 100x199x64mm
• Weight: 450g

Includes

• 1x - UltraPower UP7 400W 10A 1-6S Dual Channel AC/DC Smart Charger
