ToolkitRC M6DAC Pro V2 800W 16A 1-6S AC/DC Dual Channel Charger - XT60

The ToolkitRC M6DAC Pro V2 is a high-performance AC/DC charger with dual channels, each delivering up to 16A, and a total power output of 800W. It supports 1–6S LiPo/LiFe/LiIon/LiHV batteries and features XT60 connectors for secure, efficient charging. Compact and versatile, it's perfect for charging two batteries at once, whether at home or in the field.

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

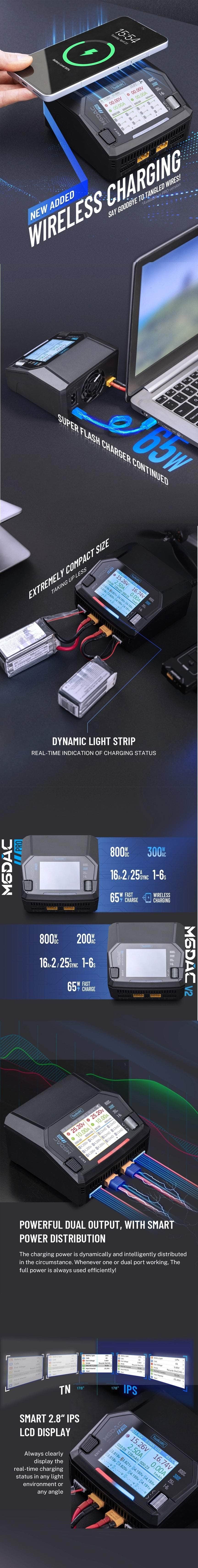

Features

• Pro-Grade Performance
• Wide Battery Support
• High Power Capacity
• Dual-Channel Output
• Compact & Portable
• XT60 Connectors
• Smart Charging
• AC/DC Input

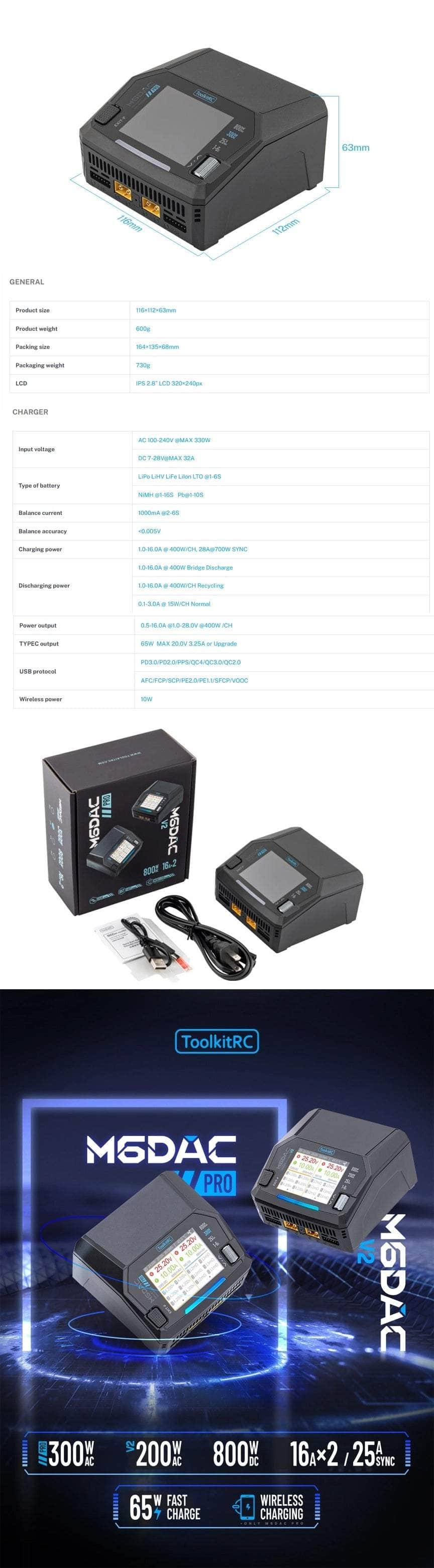

Specifications

• Display: 2.8” IPS LCD, 320 × 240px
• Packaging Size: 164 × 135 × 68mm
• Product Size: 116 × 112 × 63mm
• Packaging Weight: 730g
• Product Weight: 600g

OUTPUT

• USB Protocol Support:PD3.0 / PD2.0 / PPS / QC4 / QC3.0 / QC2.0/ AFC / FCP / SCP / PE2.0 / PE1.1 / SFCP / VOOC
• USB-C Output: 65W Max (20V, 3.25A) for charging or firmware upgrade
• Power Output: 0.5–16.0A @ 1.0–28.0V @ 400W/channel
• Wireless Charging: 10W

INPUT

• Battery Compatibility: LiPo, LiHV, LiFe, LiIon, LTO: 1–6S,NiMH: 1–16S
• AC Input: 100–240V @ Max 330W
• DC Input: 7–28V @ Max 32A
• Pb (Lead-Acid): 1–10S

DISCHARGING

• Recycling Discharge: 1.0–16.0A @ 400W/channel
• Normal Discharge: 0.1–3.0A @ 15W/channel
• Bridge Discharge: 1.0–16.0A @ 400W

CHARGING

• Balance Current: 1000 mA @ 2–6S
• Balance Accuracy: <0.005V

CHARGING POWER

• 28A @ 700W (Synchronous Mode)
• 1.0–16.0A @ 400W/channel

Includes

• 1x ToolkitRC M6DAC Pro V2 800W 16A 1-6S AC/DC Dual Channel Charger - XT60
• 1x AC Input Charger
• 1x Screen Protector
• 1x Charging Cable
• 1x Quick Manual
