TBS Tracer Nano RX

The next generation of crossfire with 2.4GHz technology. Smaller and faster than ever with diversity antennas.

Check out the rest of out TBS Products and our RC Transmitters!

Features

• 250Hz: Fastest available radio and telemetry link!

• Next-generation 2.4GHz technology meets robust Crossfire radio engine

• 3ms end to end latency

• Nano-sized receiver with antenna diversity

• 15mi+/25km+ range

• For drones, planes, helicopters, cars, and boats

Specifications

• Antenna ports: 2x u.FL / IPEX (diversity)

• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables

• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)

• Weight: 0.5g (receiver only)

• Size: 11mm x 18mm

TBS Tracer User Manual

Includes

• 1x TBS Tracer Nano RX

• 2x Immortal-T

• 1x silicone cable set

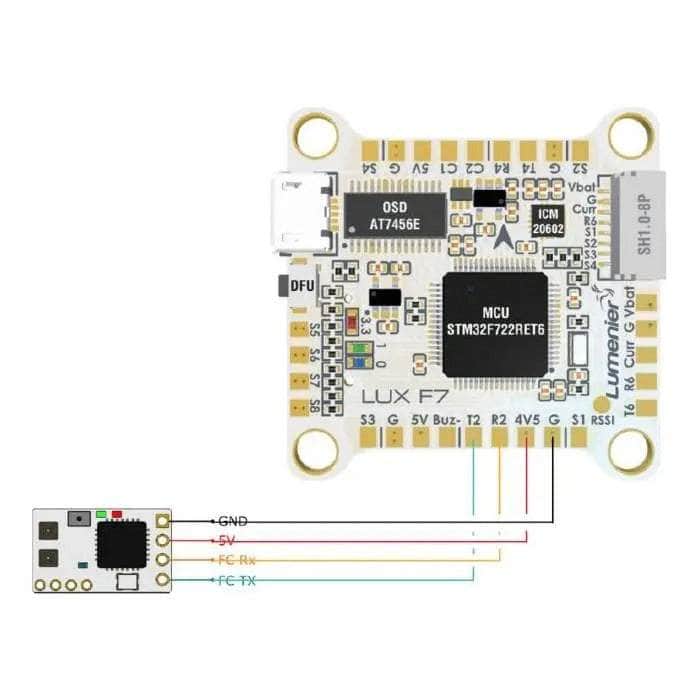

Wiring Diagram
