T-Motor Velox V2 32Bit 45A 3-6S 30x30 4in1 ESC

TMotors popular Velox ESC is back and better than ever.

Upgrades include a better heatsink, higher quality MOSFETs, bigger soldering pads, and even a 10V/2A BEC for those of you flying DJI.

Check out the 30x30 4in1 ESCs and all our T-Motor products!

Features

• Heatsink
• 10V/2A BEC for DJI
• 45A Current with 55A Peak
• 32Bit
• Big soldering pads

Specifications

• Current: 45A
• Peak Current: 55A(10S)
• BEC: 10V/2A
• Input Voltage: 3-6S LiPo
• Sofware: BLHeliSuite32
• ESC Firmware: TMotor_32Bit
• Size: 46.4x41x7mm
• Mounting Hole: 30x30, M3
• Weight: 21g

Includes

• 1xTMotor Velox V2 45A 32Bit 3-6S 30x30 4in1 ESC

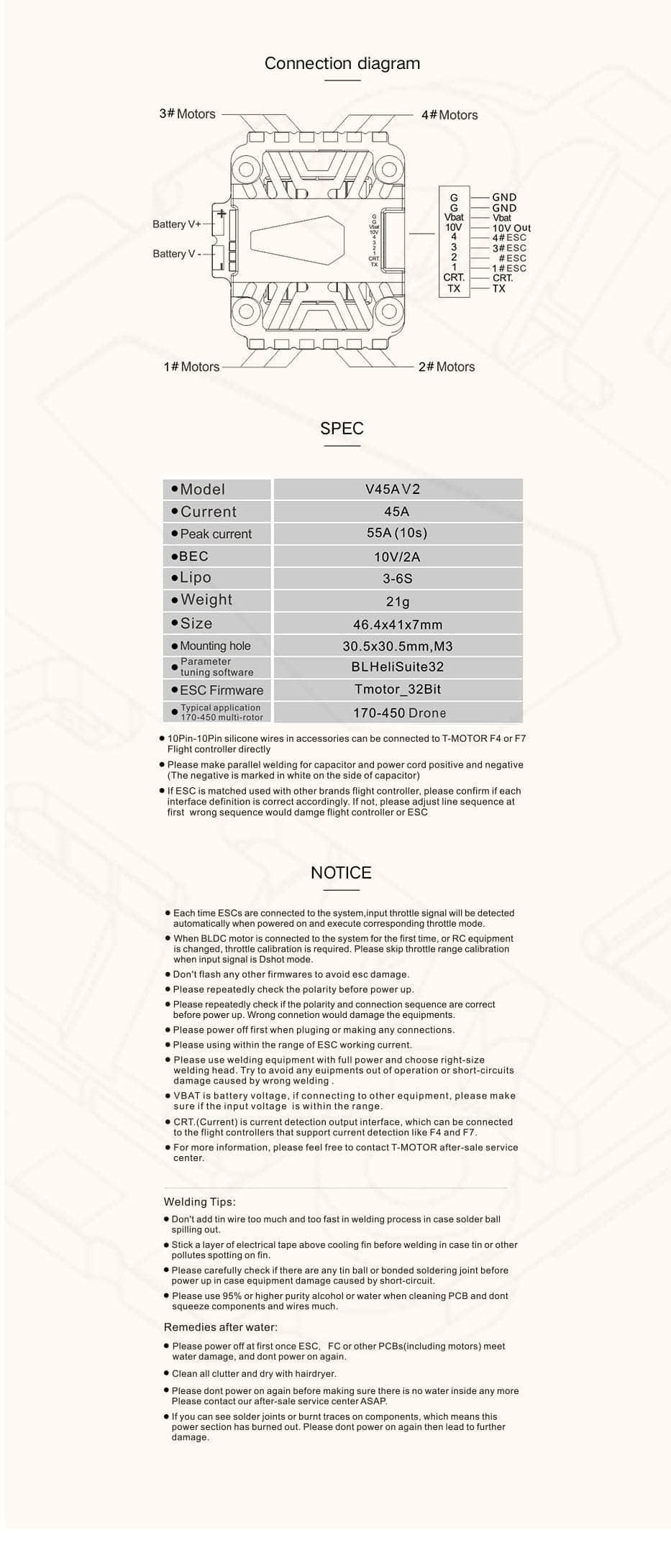

Wiring Diagram
