T-Motor M1103 11000Kv Micro Motor

14.49
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

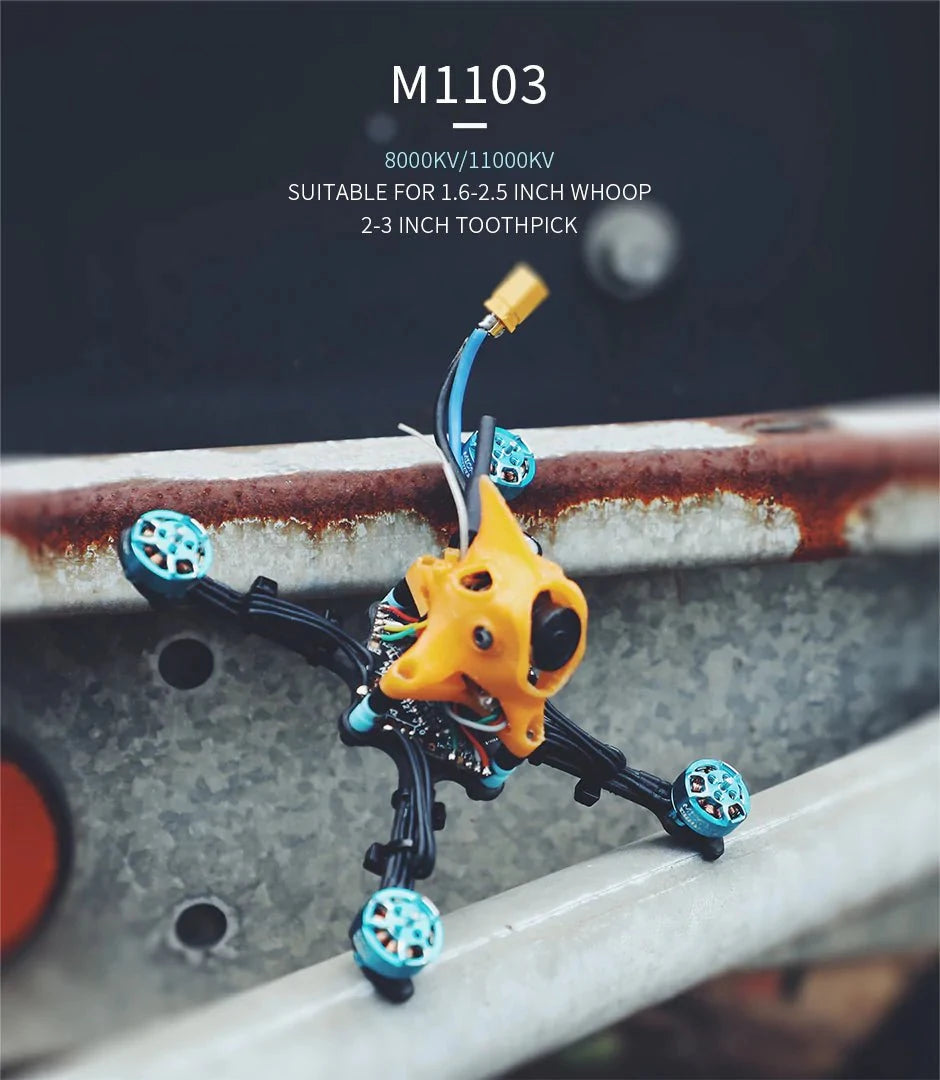

          T Motor designed these specifically for use in 2-3S toothpick builds where smooth and steady operation is key. Perfect for 65mm (t-mount or 1.5mm)props!

          Check out all our micro motors and all our T-Motor products!

          Features

          • Specially designed for 2-3S Toothpicks
          • Smooth across the entire RPM range

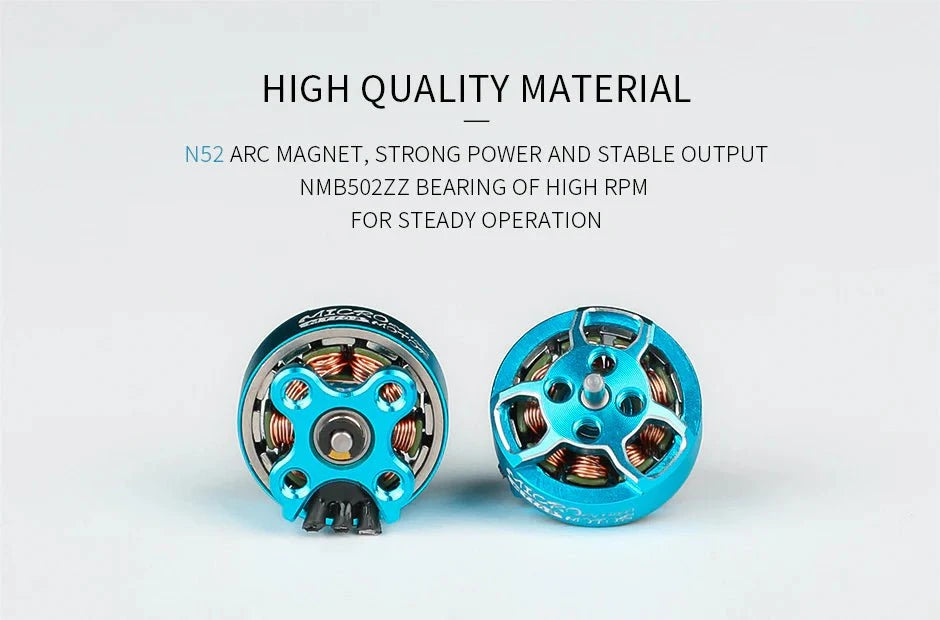

          • NBM502Z Bearing for steady operation
          • Stepped shaft design keeps the shaft from disengaging

          Specifications

          • Kv: 11000
          • Input Voltage: 2-4S
          • Configuration: 9N12P
          • Max Continuous Current: 11.5A
          • Internal Resistance: 163mΩ
          • ldle Current@3V: 0.58A
          • Motor Dimensions: Φ14.4x14mm
          • Stator Dimensions: Φ11x3mm
          • Shaft Diameter: 1.5mm
          • Output Shaft Dimensions: Φ1.5x4mm
          • Wire Dimensions: 24AWG x 75mm
          • Mounting Pattern: Φ9mm, 4x M2

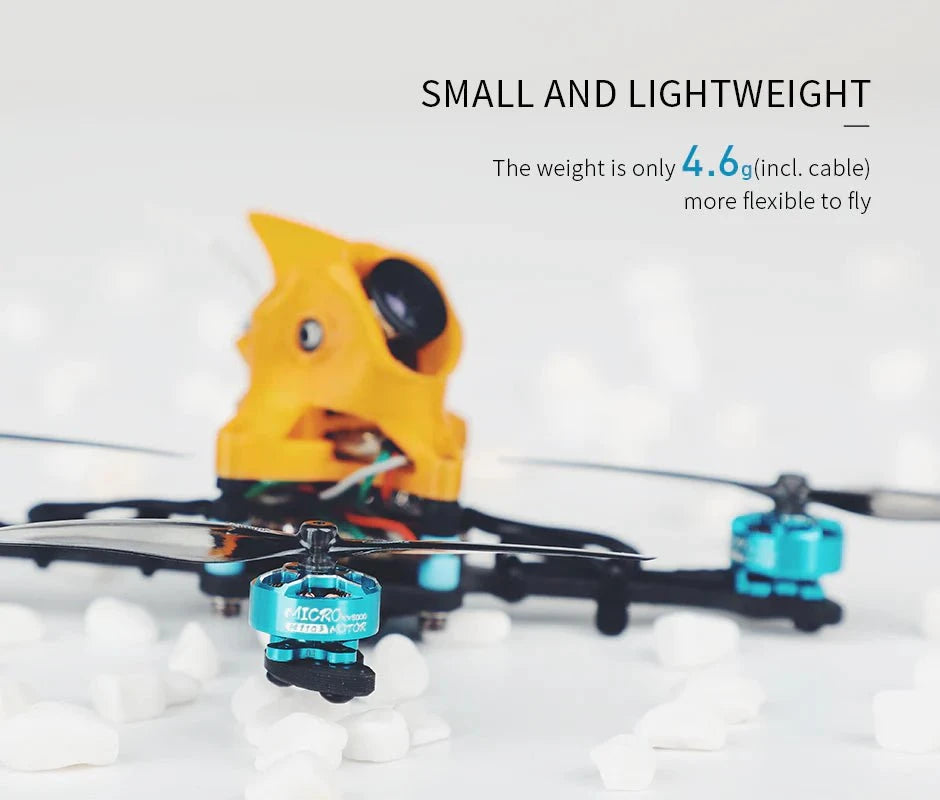

          • Weight (w/ wires): 4.6g

            Includes

            • 1x T-Motor F 1103 11000Kv Micro Motor
