T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 45A 8Bit 4in1 ESC

148.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          The T-Motor F7 AIO Flight Controller is designed for serious drone pilots, offering a 3-6S compatible 45A 8Bit 4in1 ESC for optimal power and performance. Perfect for 3' cinewhoop, 4-5' toothpick, and long range drones, this flight controller brings unwavering stability and agility to your flight.

          Check out all our Whoop/AIO Flight Controllers and all our T-Motor products!

          Features

          • Integrated Barometer
          • HD VTX Socket
          • The onboard ESC works with Bluejay & BLHeli_S ESC firmware
          • 16MB of Black Box space
          • A quality MPU series gyroscope for better noise reduction & robustness

          Specifications

          • MCU: STM32F722
          • Gyro: MPU6500
          • Barometer: BMP280
          • OSD: AT7456&HD
          • Black box: 16MB
          • BEC: 5V/1.5A
          • Input voltage: 3-6S
          • Continuous current: 45A
          • Peak current: 50A
          • ESC firmware: BLS\Bluejay
          • Size: 39x39mm
          • Mounting hole: 25.5x25.5/φ3mm
          • Supports HD and Analog
          • Recommendation: P1804/F2004/F2203.5

          Includes

          • 1x T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 45A 8Bit 4in1 ESC

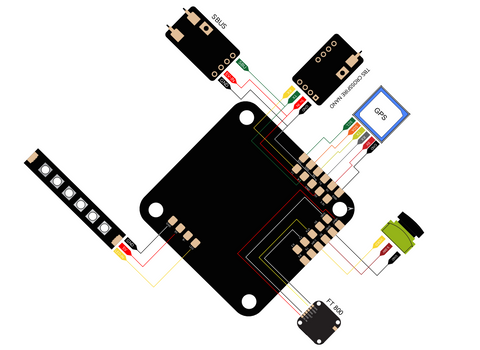

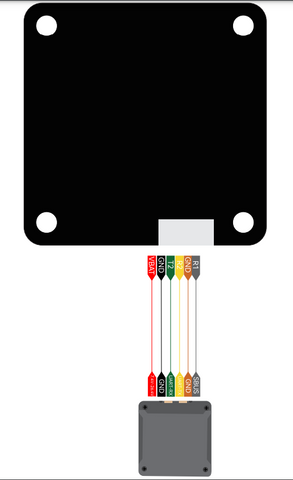

          Wiring Diagram
