T-Motor F7 3-6S 30x30 Flight Controller

75.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

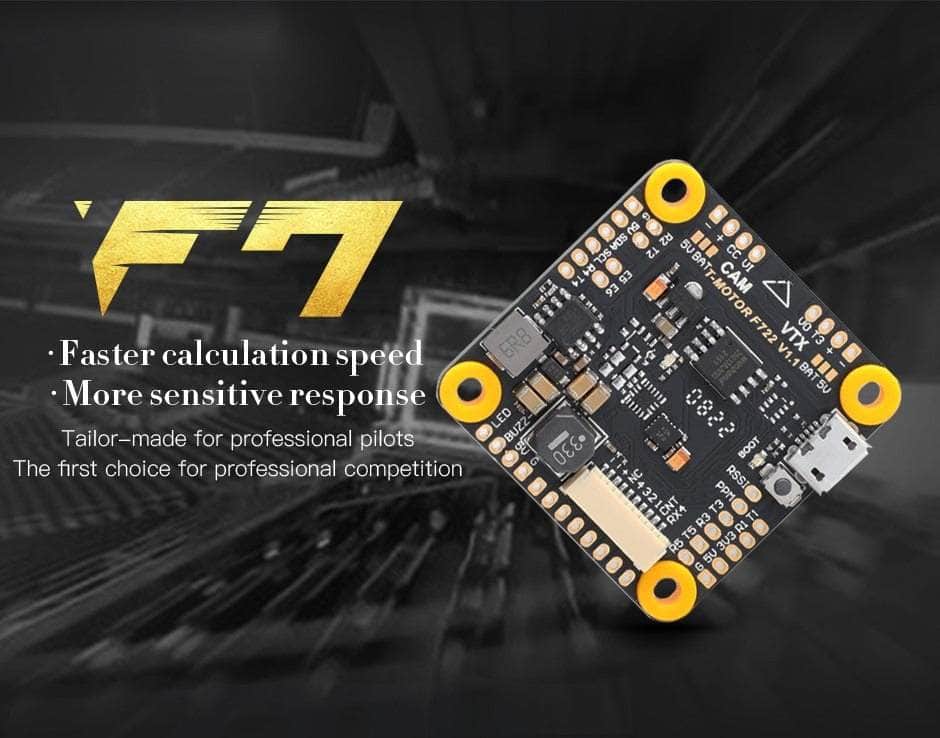

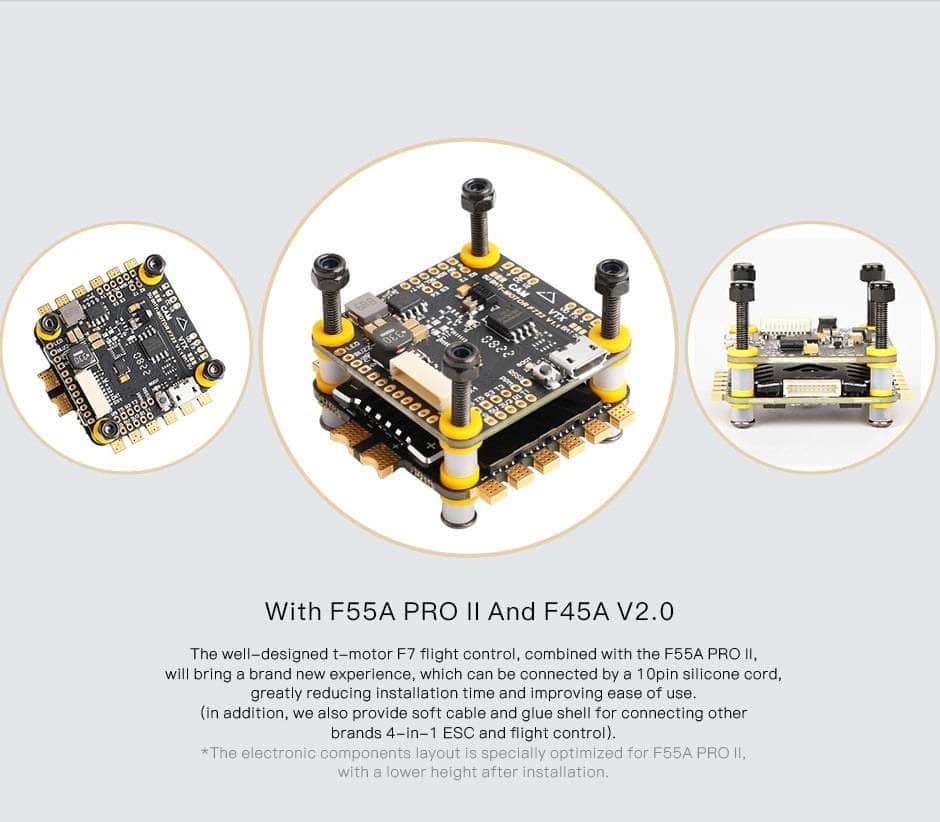

          T-Motor's F7 Flight Controller has arrived at RDQ! Logical layout, and is designed to work seamlessly with the T-Motor F45 and F55 ESC.

          Browse our 30x30 Flight Controllers and all our T-Motor products!

          Specifications

          • MCU: STMF722RET6
          • Gyro: BMI270
          • Memory: 16M
          • Input Voltage: 12v-25-2v (3-6S)
          • BEC: 5V/2A
          • Dimensions: 37mm x 37mm
          • Mounting Holes: 30.5mm x 30.5mm
          • Weight: 7.4g
          • Firmware Target: TMOTORF7 (Betaflight)



          Includes

          • 1 x T-Motor F7 Flight Controller
          • 2 x FC to ESC Cable
          • 4 x Vibration Dampeners

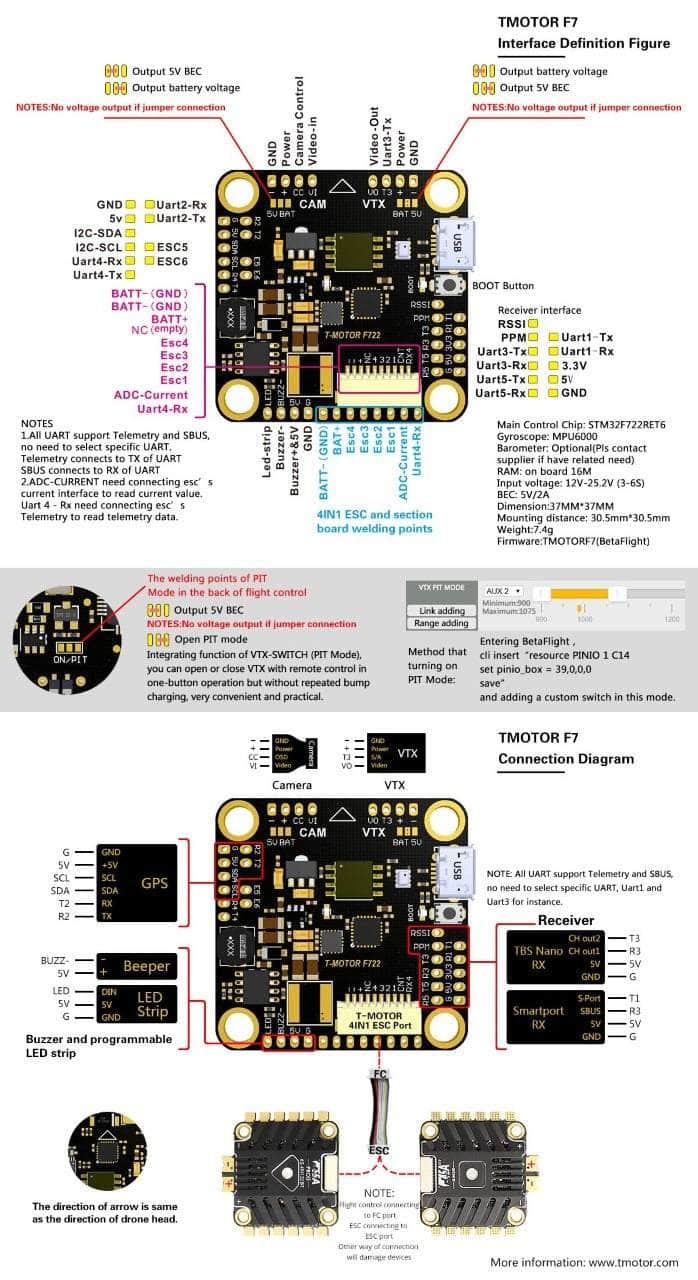

          Wiring Diagram
