SpeedyBee F405 V3 BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 50A 4in1 ESC)

The Speedy Bee F405 50A Stack V3 includes all the features a user would expect from a modern flight controller and ESC stack, but at an incredible price.  The F405 V3 flight controller features the STM32F405 MCU, an onboard 4-level battery life indicator, a Micro-SD card slot for Blackbox logging, 4 groups of LED strip pads, a DJI plug for digital quads, and built-in Bluetooth for wireless configuration through the SpeedyBee App.  The 50A 4-In-1 ESC features a built-in TVS protective diode, and Japanese made TDK SMT capacitors, and even comes with a low ESR 1500uF capacitor.

Check out all our 30x30 stacks & combos, and all our Speedy Bee products!

Specifications

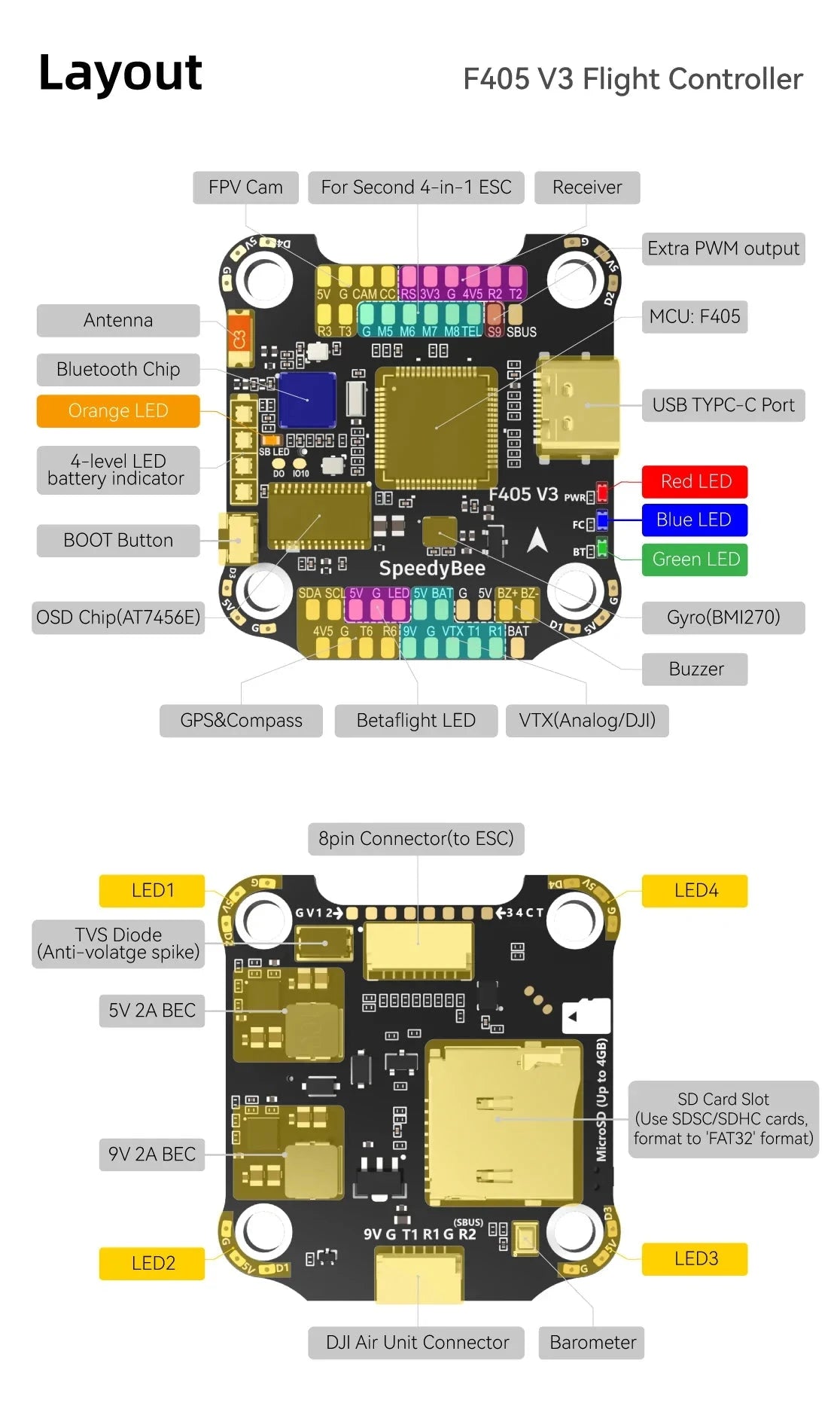

Speedy Bee F405 V3 Flight Controller

• MCU: STM32F405
• IMU(Gyro): BMI270
• USB Port: Type-C
• Barometer: Built-=In
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported
• DJI Air Unit Connection: 6-pin connector and solder pads
• Blackbox Micro-SD Card: 32GB max
• Current Sensor: Supported
• Power Input: 3S-6S LiPo
• Power Output: 9V (2A), 3.3V (500mA), 4.5V(1A), 5V(2A)
• ESC Signal: M1-M8 available
• UART: 5 Sets
• I2C: Supported
• LED: Supported
• Buzzer: Supported
• Boot Button: Press for DFU mode, press when powered to change LED modes
• Firmware Target: SPEEDYBEEF405V3
• Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
• Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight: 9.6g

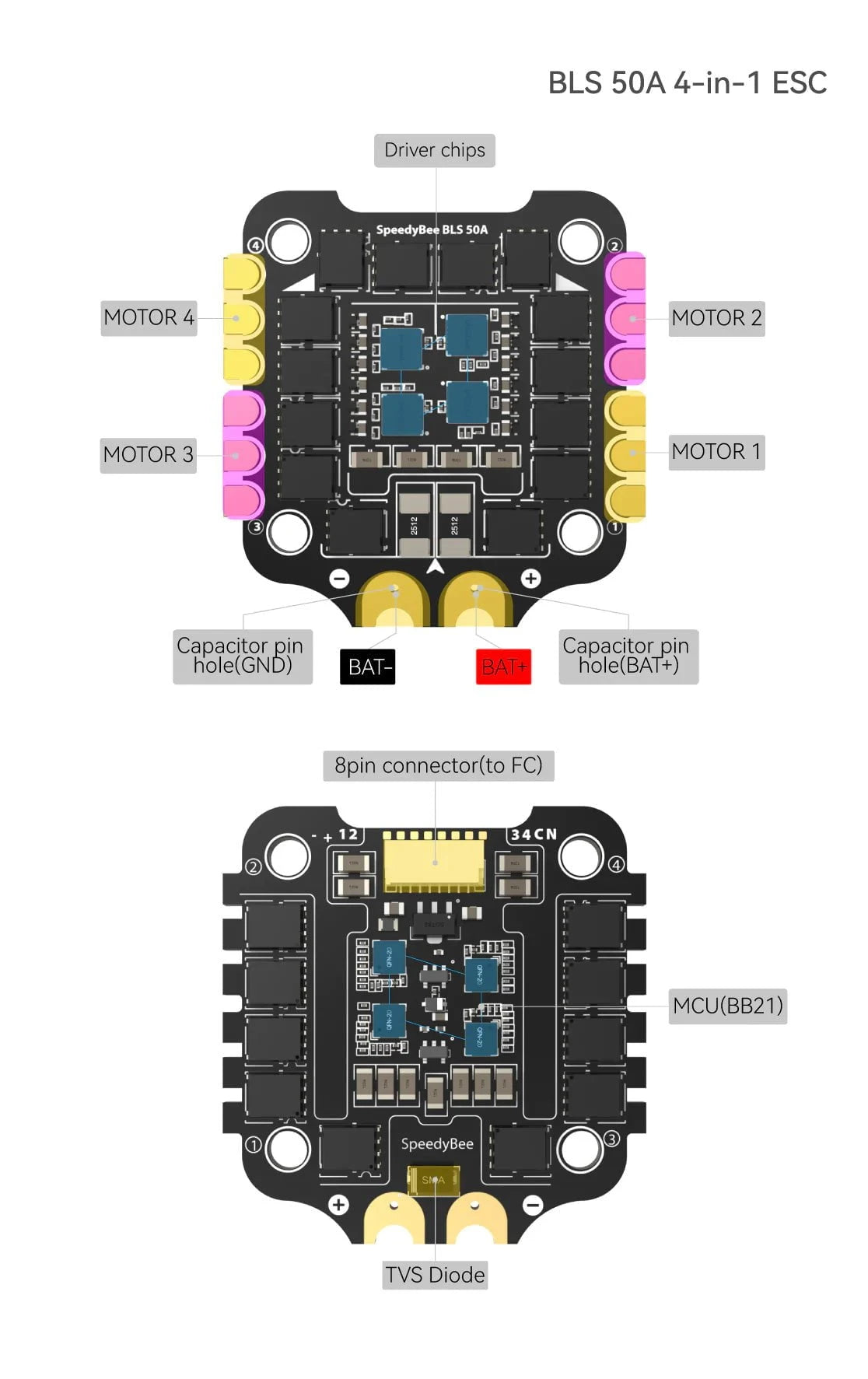

32Bit 50A 3-6S 4in1 ESC

• Firmware: BLHeli_S JH50
• Wireless Configuration: Full Configuration Supported in Speed Bee App
• PC Configurator: https://esc-configurator.com/
• Continuous Current: 50A * 4
• Burst Current: 55A * 4
• TVS Protective Diode: YES
• External Capacitor: 1500uF Low ESR Capacitor Included
• ESC Protocol: DShot 300/600
• Power Input: 3-6S LiPo
• Power Output: VBAT
• Current Sensor: Scale=386 Offset=0
• Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
• Dimensions: 45.6(L) * 44(W) * 6.1mm(H)
• Weight: 13.8g
