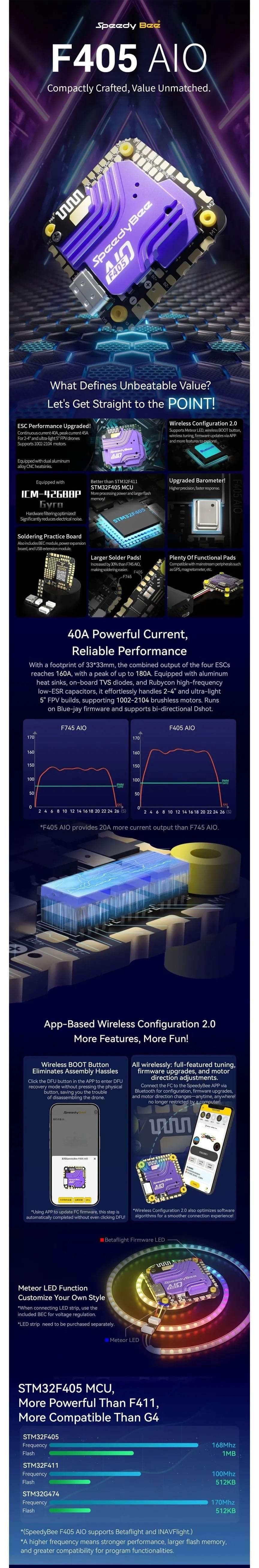

SpeedyBee AIO - F4 FC + 40A 3-6S 4-in-1 Bluejay ESC - 25x25

The SpeedyBee AIO - F4 FC + 40A 3-6S 4-in-1 Bluejay ESC combines a high-performance electronics with a powerful 40A ESC. It runs on 3-6S LiPo batteries allowing for a variety of drone setups. It offers Bluetooth BLE, wireless firmware updates, and with multiple UART ports and LED pads for customization. Weighing only 13.6g, it provides reliable performance in a lightweight AIO.

Check out our other AIO flight controllers and all our Speedy Bee products!

Features

• Camera Parameter Adjustment via Betaflight CC pads supported

• Battery Support 3-6S LiPo

• 40A Continuous Current

• Betaflight Compatibility

• 45A (10s) Burst Current

• 8MB Flash Memory

• BLE Bluetooth

• Lightweight

Specifications

FLIGHT CONTROLLER

• 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order

• BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery

• 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A

• Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)

• DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering

• UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])

• 5V BEC Output: Three 5V outputs, total current 2A (shared with 4V5)

• Supported Flight Controller Firmware: BetaFlight (Default), INAV

• Betaflight CC Pads (Camera Parameter Adjustment): Supported

• Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)

• Bluetooth BLE: Supported, Bluetooth speed enhancement 2.0

• LED Pads: Supported, used to control WS2812 LED lights

• Wireless Download & BlackBox Analysis: Not supported

• 4V5 Output: Two 4V5 outputs, total current 1A

• Firmware Target Name: SPEEDYBEE F405AIO

• Mounting: 25.5 x 25.5mm, 2mm hole diameter

• Buzzer Pads: Supported, BZ+ and BZ- pads

• Product Name: SpeedyBee F405 AIO

• Input Voltage: 3S-6S LiPo battery

• Weight: 13.6g (including CNC)

• SmartPort: Not supported

• Flash (for BlackBox): 8MB

• Barometer: SPA06-003

• USB Port Type: Type-C

• ESC Telemetry: None

• Gyro: ICM-42688P

• MCU: STM32F405

• RSSI Pads: None

• OSD: Supported

• I2C: Supported

ESC

• ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors; please use with caution

• Output Voltage: VBAT battery voltage (used to power the flight controller)

• Current Sensor: Supported (Scale = 254, Offset = 0)

• Product Name: SpeedyBee F405 AIO

• Input Voltage: 3-6S LiPo battery

• Firmware: Bluejay JH-40 48kHz

• Continuous Current: 40A

• Burst Current: 45A (10s)

Includes

• 1x SpeedyBee AIO - F4 FC + 40A 3-6S 4-in-1 Bluejay ESC - 25x25

• 1x Black Heat Shrink Tube for Type-C Extension Module

• 1x 4-pin x 80mm Cable for Type-C Extension Module

• 1x Transparent Heat Shrink Tube for External BEC

• 1x DJI Air Unit 6pin x 80mm Connection Cable

• 4x M2 x 6.6mm Silicone Dampering Sleeve

• 1x 6-pin x 30mm Cable for External BEC

• 1x 35V 470uF Electrolytic Capacitor

• 2x Capacitor Heat Shrink Tube

• 1x Type-C Extension Module

• 1x Practice Soldering Board

• 1x XT30 Power Cable (7cm)

• 1x Power Expansion Board

• 1x Hardware Set

• 1x User Manual

• 1x BEC
