SkyStarsRC Fly Stack F7 HD Pro 3 3-6S 30x30 Stack/Combo (F722 FC / KO45 32Bit 45A 4in1 ESC)

118.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

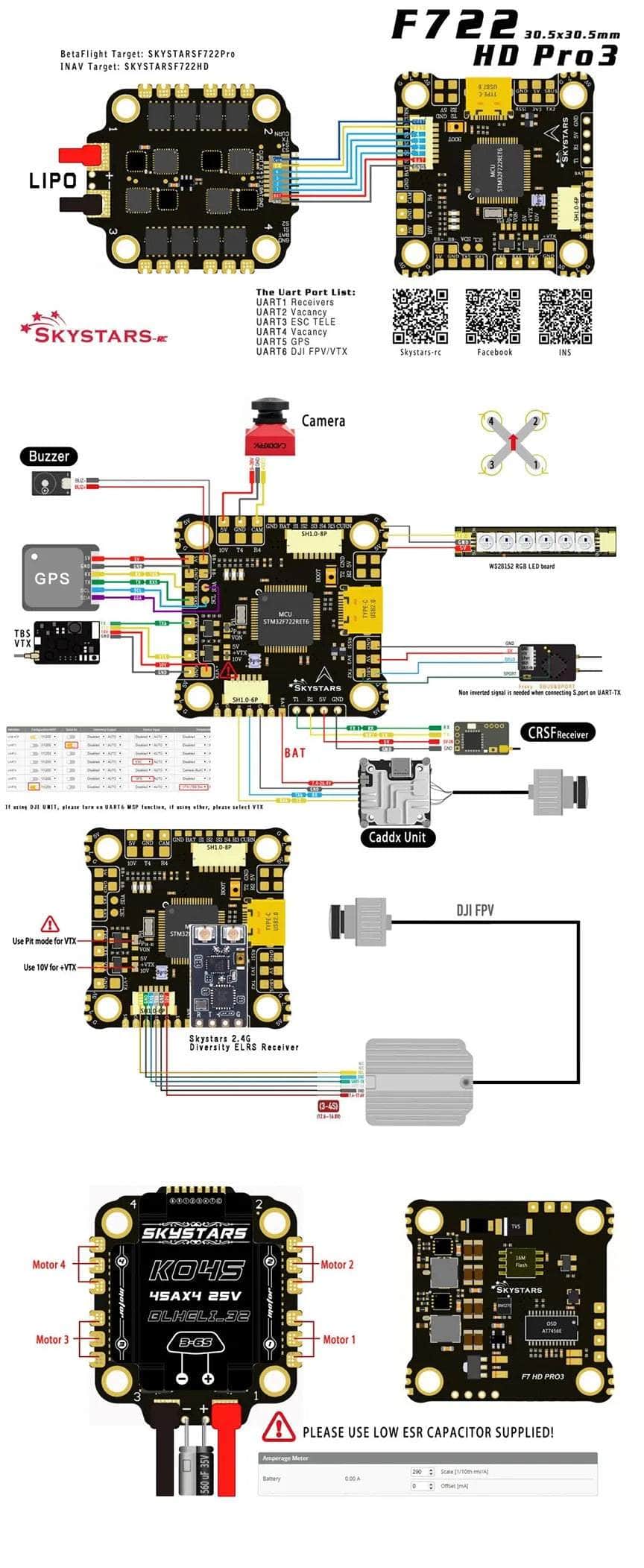

          The SkyStars Fly Stack features an F722 HD Pro 3 flight controller and a KO45 45A BLHeli_32 4-in-1 128K ESC with a 30x30 mounting pattern!

          Features

          • The ESC has an onboard filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
          • Built-in inverter, which can actually be installed in any spare UART.
          • EMI Shell provides a stronger anti-interference capability.
          • DJI FPV OSD is supported by any spare UART
          • VTX 10V/Vbat filtered power ON/OFF switch
          • Flight control onboard voltage sensor
          • F722 HD Pro 3 Flight Controller
          • 30x30 Mounting Pattern
          • KO45 45A 128K ESC
          • 3-6S LiPo Support

          Specifications

          F722 HD PRO 3 OSD FC



          • Receiver: Support Sbus, CRSF, IBUS, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a
          • Installation size: 30.5x30.5mm (The installation hole is M4 and supports shock column installation)
          • BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
          • LED: 4 LED independent pads, support WS2812 programming lamp output.
          • 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
          • LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) :3
          • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
          • OSD: Betaflight SPI OSD DJI HD OSD(UART6)
          • BetaFlight firmware: SKYSTARSF722Pro
          • INAV firmware: SKYSTARSF722HD
          • MCU: STM32F722RGT6 216MHz
          • External size: 39x39mm
          • 6x Uarts: UART 1/2/3/4/5/6
          • USB Type: Type-C (USB2.0)
          • Flight control weight: 6.9g
          • LDO 3.3V: Max.250mA
          • Barometer :Bmp280
          • Input voltage: 3-6S
          • Gyroscope: BMI270
          • Black box: 16MB
          • PWM outputs: 4
          • I2C: 1

          KO45 45A 4in1 ESC

          • Support: 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
          • Continuous working current: 45A 60A
          • Power supply voltage: 3-6S (12-26V)
          • Moutning Pattern: 30.5x30.5MM
          • Firmware: BLHELI 32 ESC
          • 5V BEC output: NO
          • Aperture: 4MM
          • Weight: 14.6g

          Includes

          • 1x SkyStarsRC Fly Stack F7 HD Pro 3 3-6S 30x30 Stack/Combo (F722 FC / KO45 32Bit 45A 4in1 ESC)
          • 1x JST-GH-6P cable for DJI port, 10cm
          • 2x JST-SH1.0_8pin cable, 4cm
          • 8x Silicon grommets M4 to M3
