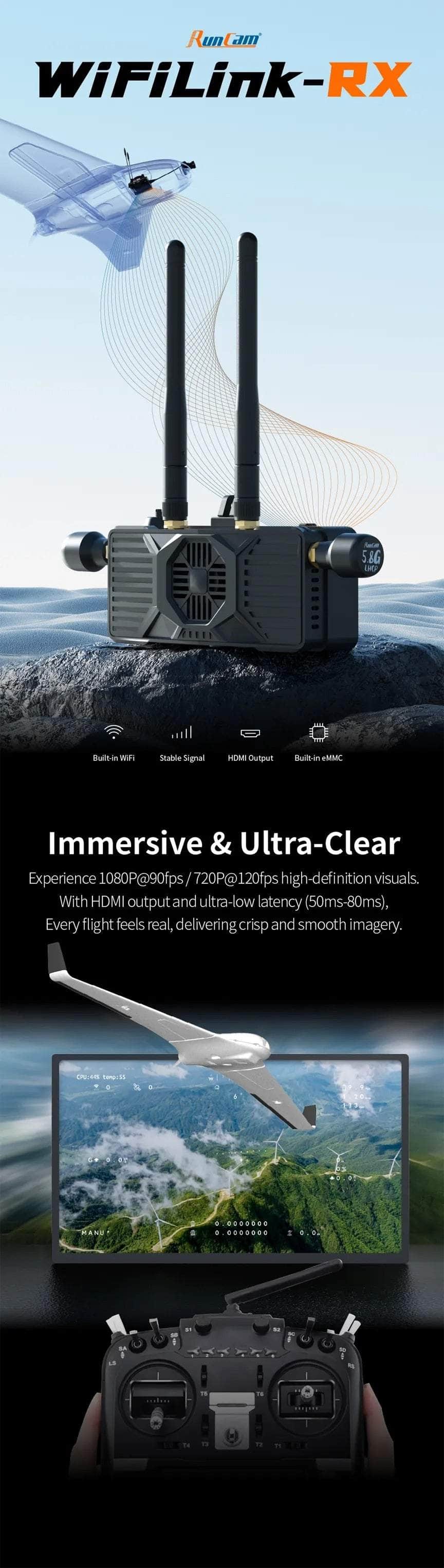

RunCam WifiLink-RX VRX w/ OpenIPC

The Runcam WiFiLink-RX Digital HD Receiver is a compact, high-performance video receiver designed for use with the Ruby FPV and OpenIPC systems. Supporting a wide frequency range of 5180–5885 MHz, it delivers crisp HD video via Mini-HDMI at 1080P/60fps or 720P/60fps. With multiple interface options including Type-C, OTG, Mini-HDMI, and Micro-SD (up to 256GB), it offers versatile connectivity and convenient data handling.

Check out all our VTXs and our other RunCam products!

Features

• Dual polarization for better reception

• Includes stick and Pagoda antennas

• 1080P/60fps or 720P/60fps video

• Compact and lightweight design

• Wide 9–30V power input range

• Supports Ruby FPV & OpenIPC

• MicroSD support up to 256GB

• HD output via Mini-HDMI

• 32GB built-in storage

Specifications

• Interfaces: Mini-HDMI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG

• Video Output: 1080P/60fps or 720P/60fps via Mini-HDMI

• Storage: 32GB built-in + MicroSD support up to 256GB

• Receiver Dimensions: 110 × 27.3 × 46 mm

• Receiver Weight: 122g (antenna excluded)

• Transmission Power: Up to 25dBm (FCC)

• System Support: Ruby FPV / OpenIPC

• Frequency Range: 5180–5885 MHz

• Power Input: 9–30V (3–6S)

Stick Antenna:

• Dimensions: Ø4.8 × 108.4 mm

• Frequency: 5150–5850 MHz

• Polarization: Vertical

• Gain: 2.5dBi

• Weight: 6.6g

• SWR: ≤ 2.0

Pagoda Antenna:

• Polarization: LHCP (Left-Hand Circular)

• Dimensions: Ø8.0 × 23.9 mm

• Frequency: 5500–5900 MHz

• Gain: 2.5dBi

• Weight: 4.4g

• SWR: ≤ 2.0

Includes

• 1x RunCam WifiLink VRX w/ OpenIPC
