RunCam Link Wasp HD Micro Kit for DJI

167.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          The Runcam Link Wasp HD Camera and VTX Kit is another advanced video transmission module by Runcam and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Runcam Link Wasp HD Camera and VTX Kit is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range of up to 4km. The Link system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

          User can wirelessly connect their Link Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers.

          Phoenix HD camera also available separately!

          Check out all our DJI-compatible gear, and our RunCam selection!

          Features

          • Beautiful 1280x720@120fps FPV feed
          • Excellent low-light performance
          • Microform factor for better frame compatibility

          Specifications

          Phoenix Wasp HD Camera

          • Image Sensor: 1/3”
          • Resolution: 720p@120fps(4:3)
          • LENS: FOV D:155° H:125° V:96°
          • Shutter: Rolling Shutter
          • Coaxial Cable: 120 mm

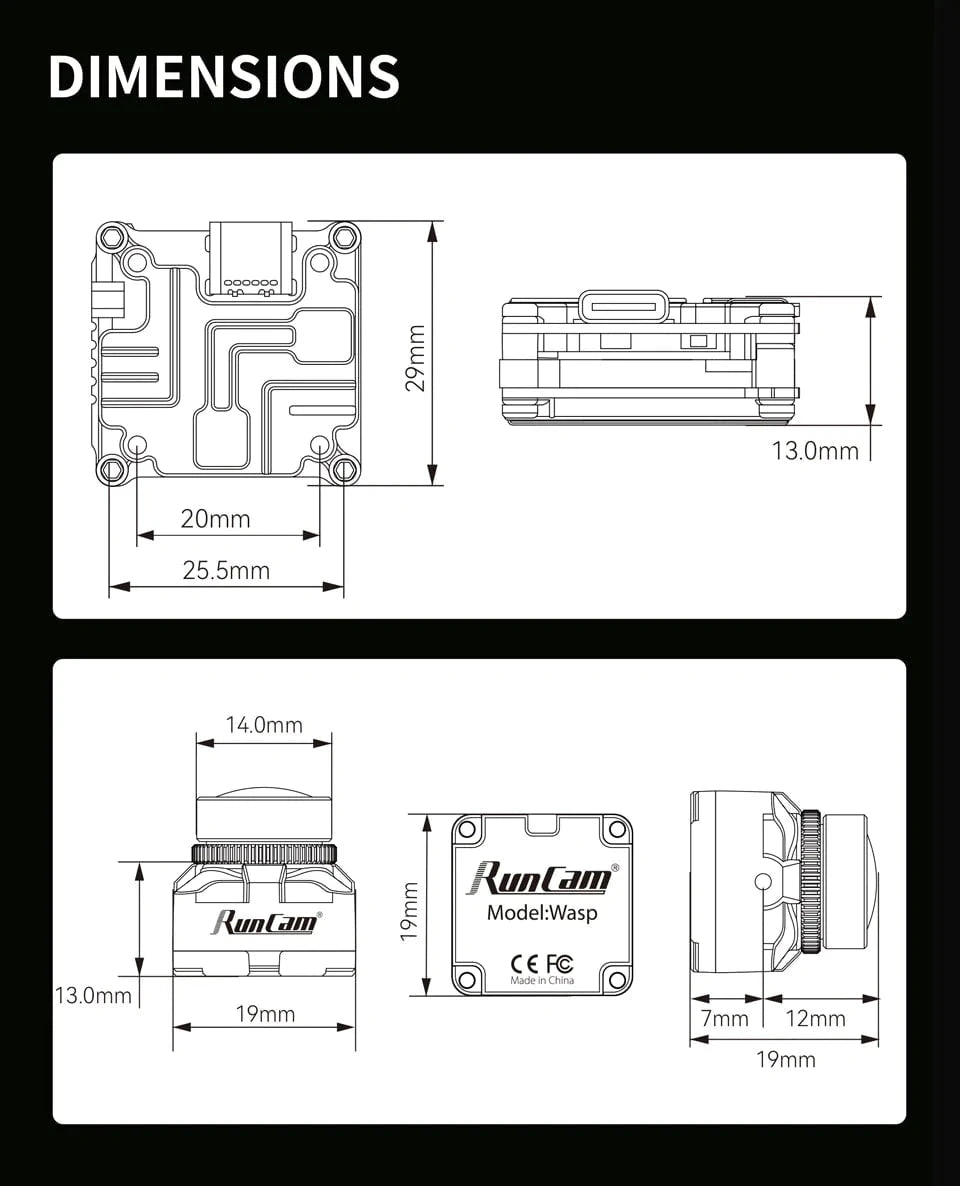

          • Dimensions: L19mmxW19mmxH19mm
          • Net Weight: 7.5g

          Link Air Unit

          • Input Voltage: 7.4-26.4V@ 4-9W
          • Operating Frequency: 5.725-5.850 GHz
          • Transmitter Power: (EIRP) FCC/SRRC: <30 dBm; CE: <14 dBm
          • Min. Latency (end-to-end): 1280 x 720 60fps: 32 ms
          • Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km;
          • I/O Interface: Type-C, IPEX, 3-in-1 port,
          • Supported Flight Control System: BetaFlight
          • Operating Temperature Range: 0° to 40° C (32° to 104° F)
          • Coaxial Cable: 120 mm
          • Dimensions: 29x29x13mm
          • Weight(camera included): 27g

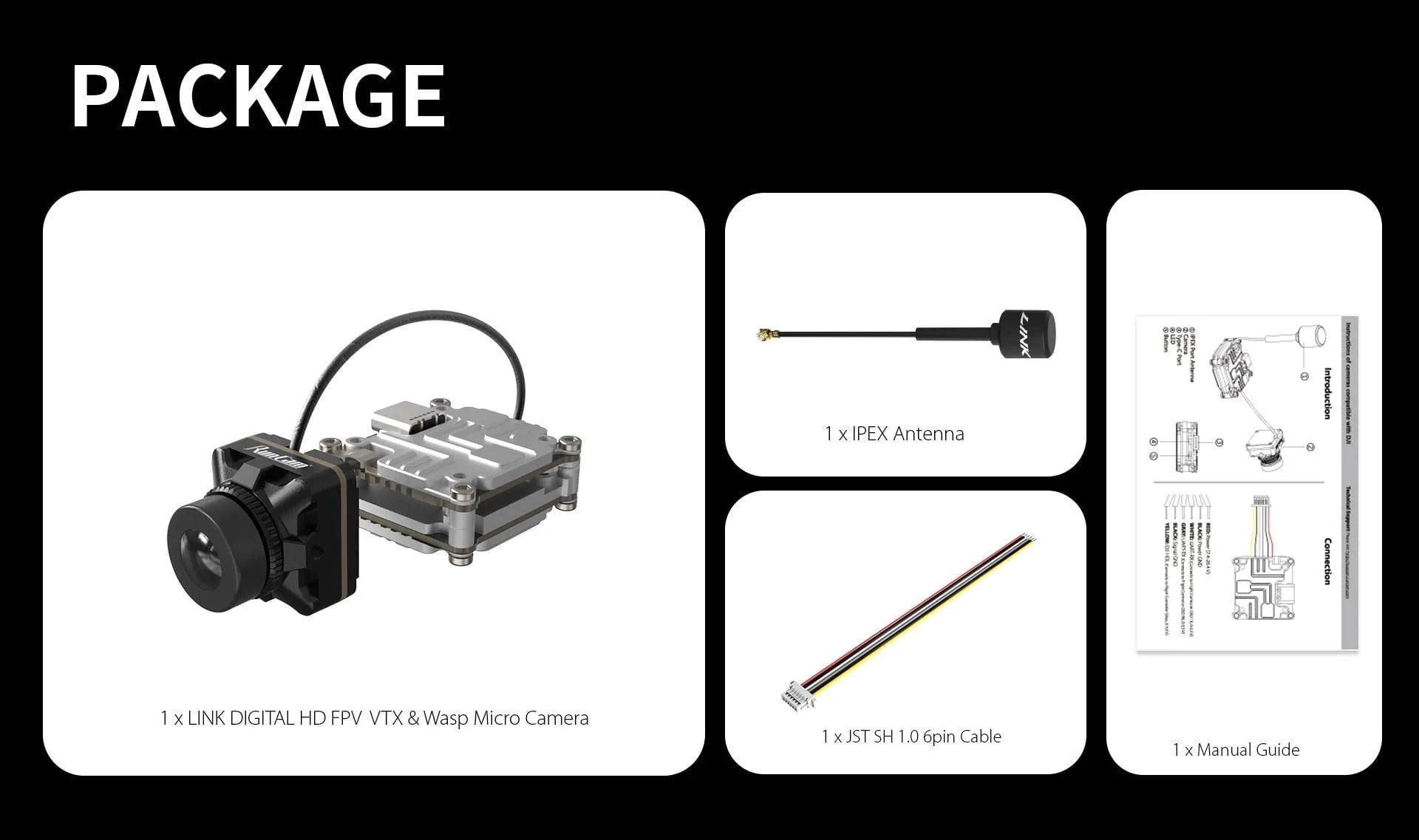

          Includes

          • 1x RunCam Link Wasp HD Micro Kit for DJI
          • 1x RunCam Link Air Unit
          • 1x RunCam Link U.FL Antenna
          • 1x 6 Pin Cable - JST-SH1.0
          • 1x 12cm Cable
