RadioMaster XR1 Nano Multi-Frequency Receiver - 900MHz

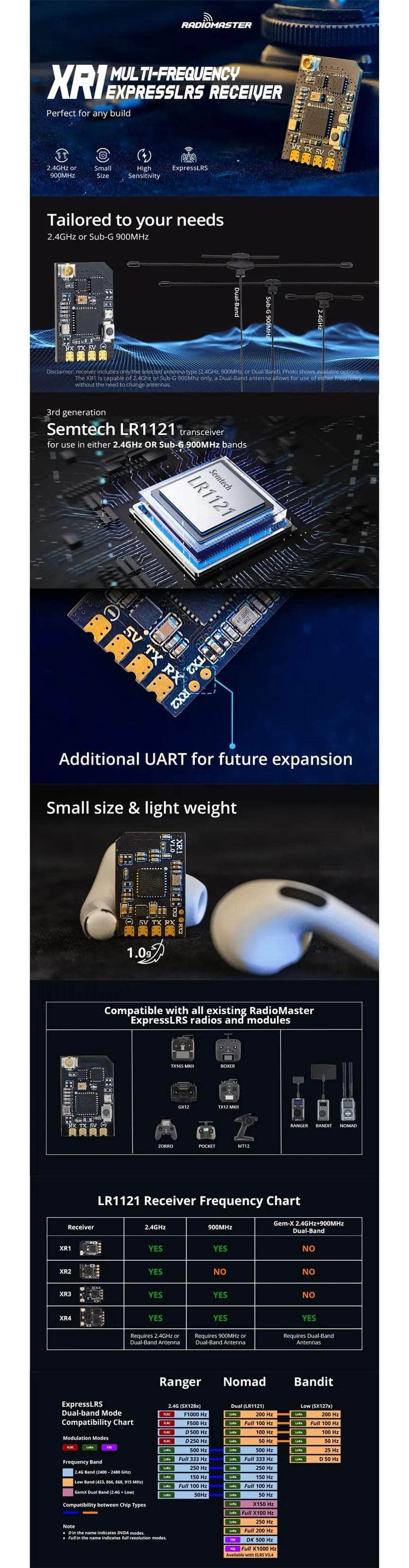

The XR1 Receiver is a tiny ExpressLRS receiver, powered by the most up to date Semtech LR1121 transceiver. It operates Sub-G 900MHz, offering exceptional range and sensitivity in a compact form. It will fit a variety of drone frames. With built-in Wi-Fi, configuration, and firmware updates are effortless via an intuitive WebUI on your PC or mobile device.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• High-Performance MCU
• Advanced Transceiver
• Secondary UART Port
• Telemetry RF Power
• Castled Pads

Specifications

• Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
• Firmware Version: ExpressLRS v3.5.1 pre-installed
• Maximum Packet Rate: DK500Hz / K1000Hz
• Firmware Target: RadioMaster XR1 900 RX
• Minimum Packet Refresh Rate: 50Hz
• Dimensions: 20mm x 13mm x 3mm
• Frequency Range: Sub-G 900MHz
• Weight: 1.0g (without antenna)
• Telemetry Power: 100mW
• RF Chip: Semtech LR1121
• Antenna: 1x T-Antenna
• Bus Interface 2: UART
• RF Connector: IPEX-1
• Bus Interface 1: CRSF
• Working Voltage: 5V
• MCU: ESP32C3
• Type: ISM 2.4

Includes

• 1x RadioMaster XR1 Nano Multi-Frequency Receiver - 900MHz
