Note: The packaging in this product will mention V2, however the software is confirmed ELRS V3.
The RP2 has a ceramic antenna, super light & small, ideal for racing. Built-in WIFI lets you upgrade firmware & configure the receiver via WebUI on PC/mobile. Low latency & high refresh rate makes it perfect for FPV & long-range flights. Also great for whoops, drones & fixed-wing models, as this nano receiver can fit anywhere! Developed by Jye Smith & the ExpressLRS team, it uses ESP8285 MCU & SX1280 RF chip. The EP2 comes with ELRS Firmware V3 pre-installed and a TCXO oscillator for solid connection & reliability.
Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!
Features
- TCXO oscillator for solid connection & reliability.
- Improved PCB design is better for heat dissipation.
- LED on the top side of PCB.

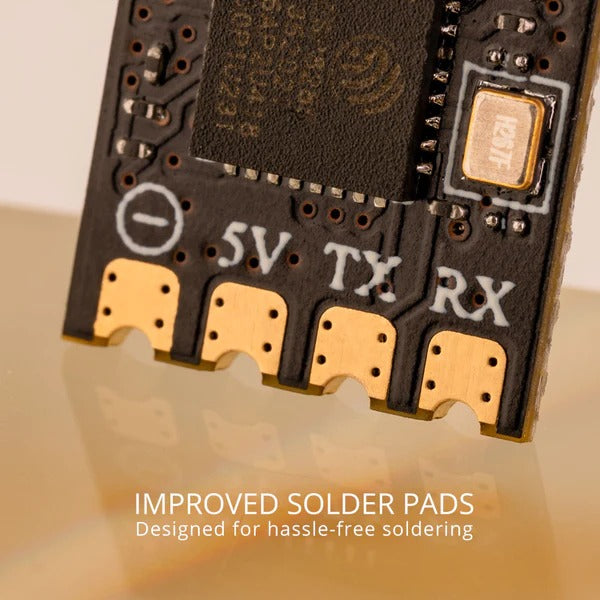

- Solder pads are improved and easier to solder to.
- Open-source receiver based on ExpressLRS
- Upgraded rigid antenna with greater durability and performance
Specifications
- MCU: ESP8285
- Type: ISM
- Antenna: On Board SMT Antenna
- Bus interface: CRSF
- Power input range: 5V
- RF Chip: SX1280IMLTRT
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Firmware Version: ExpressLRS V3.0 pre-installed
- Signal format: ELRS
- FW Target: RadioMaster RP2 2400 RX

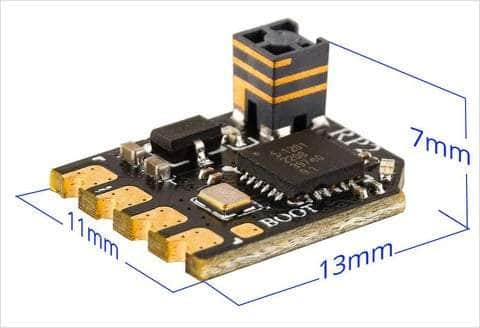

- Size: 13 x 11 x 7mm
- Weight: 0.55g (On Board antenna)
User Manual
- RP2 Receiver User Manual
Includes
- 1 x RadioMaster RP2 V2 2.4GHz ELRS Nano Receiver - Ceramic Antenna
- 1 x User Manual
