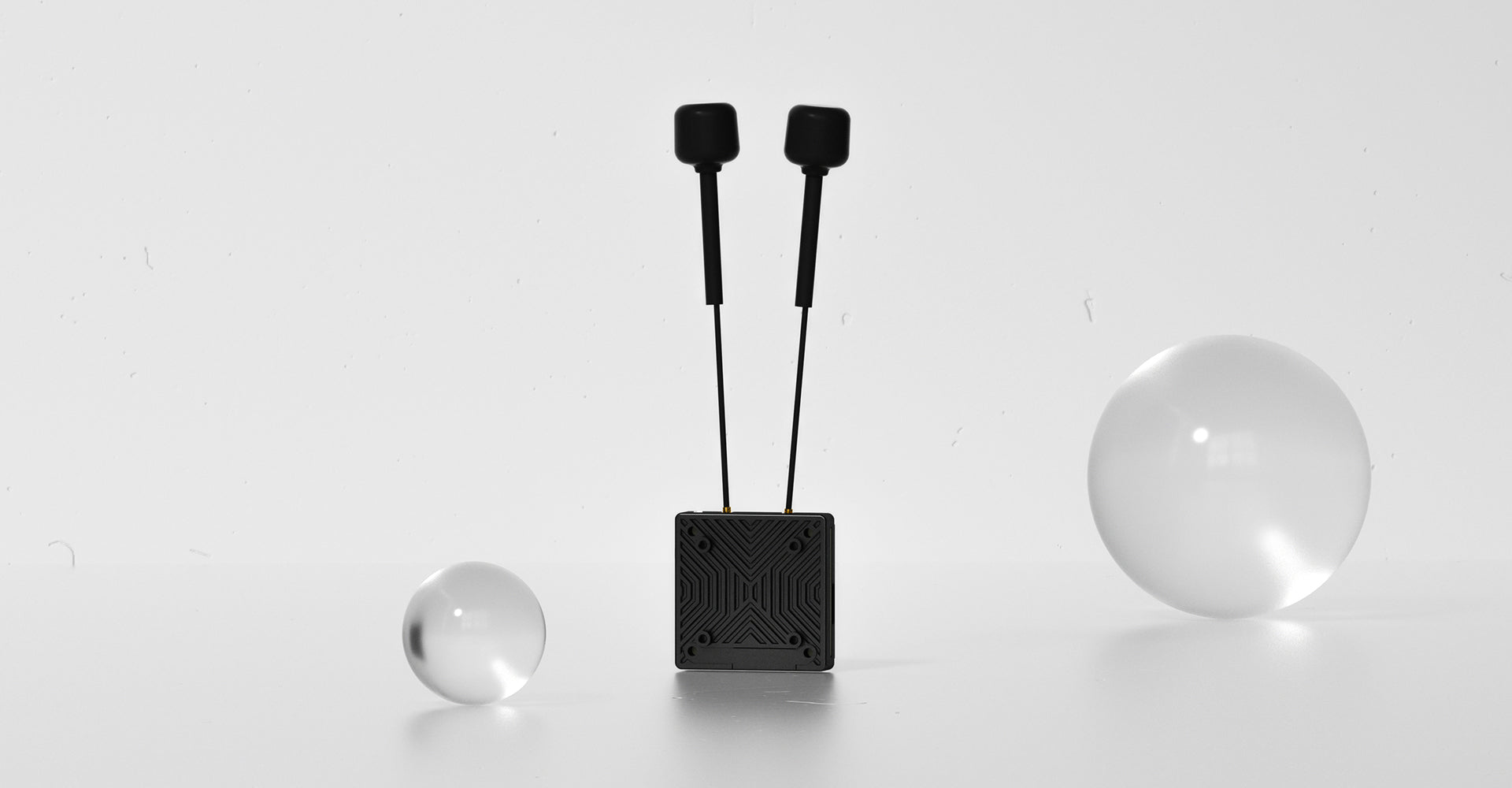

Walksnail Avatar HD V2 20x20 / 25x25 VTX Module - (Dual Antenna Version)

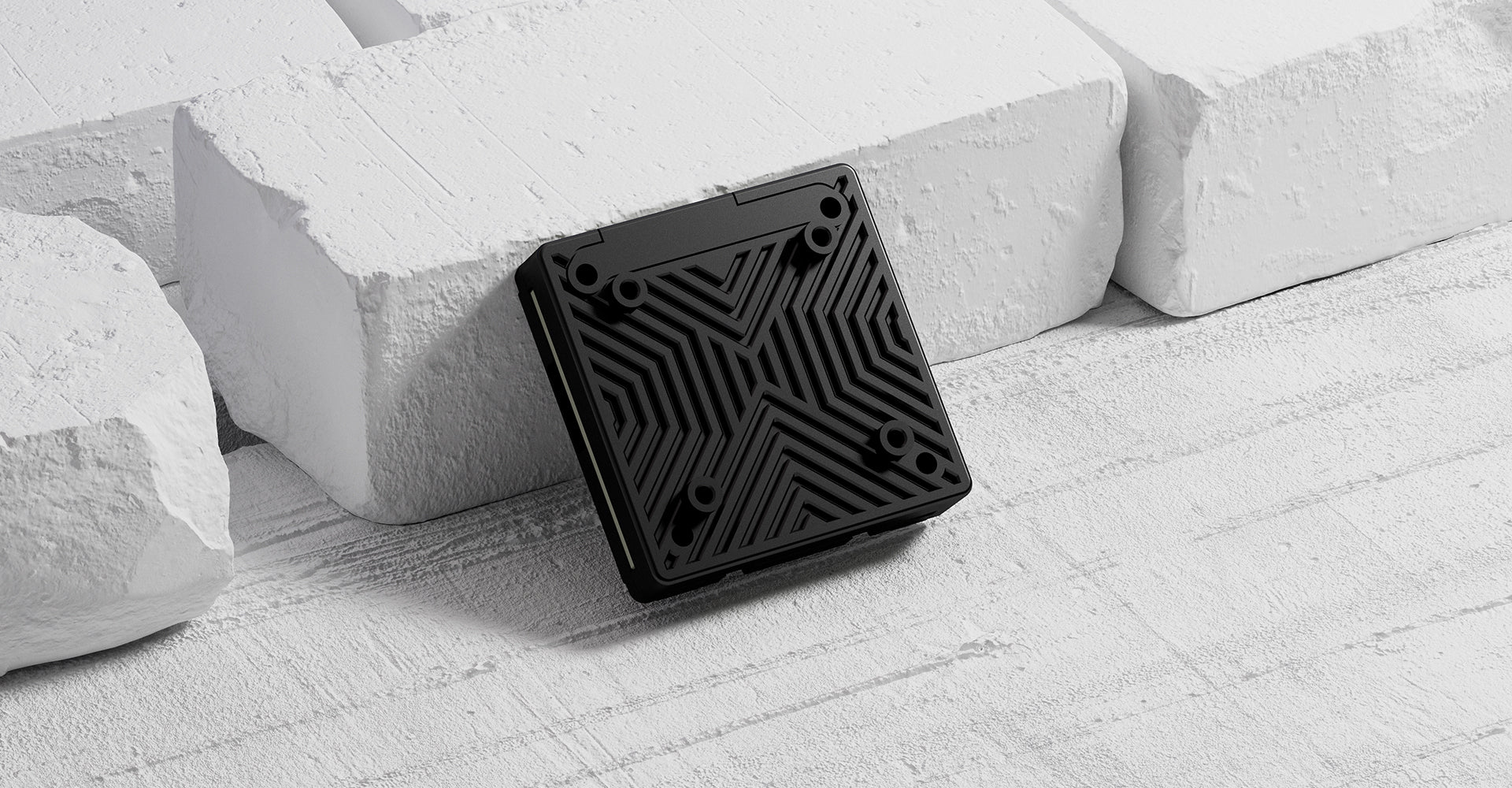

The VTX has a new higher quality casing and is equipped with 20mm x 20mm and 25mm x 25mm mounting holes, allowing compatibility with a vast array of FPV drone models. The PCB board and shell design is more advanced, and the antenna-optimized installation place offers greater protection to the VTX. Dual antennas provide more stable and powerful signals. Using H.265 encoding for industry-leading 1080p images with low latency.

Check out all our Walksnail HD products and check out all our Walksnail compatible products!

Features

• The module includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
• Updated the design of PCB board and shell, improved the quality of VTX, more durable.
• Optimized the installation place of the antenna, it's better to protect the VTX.
• The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.

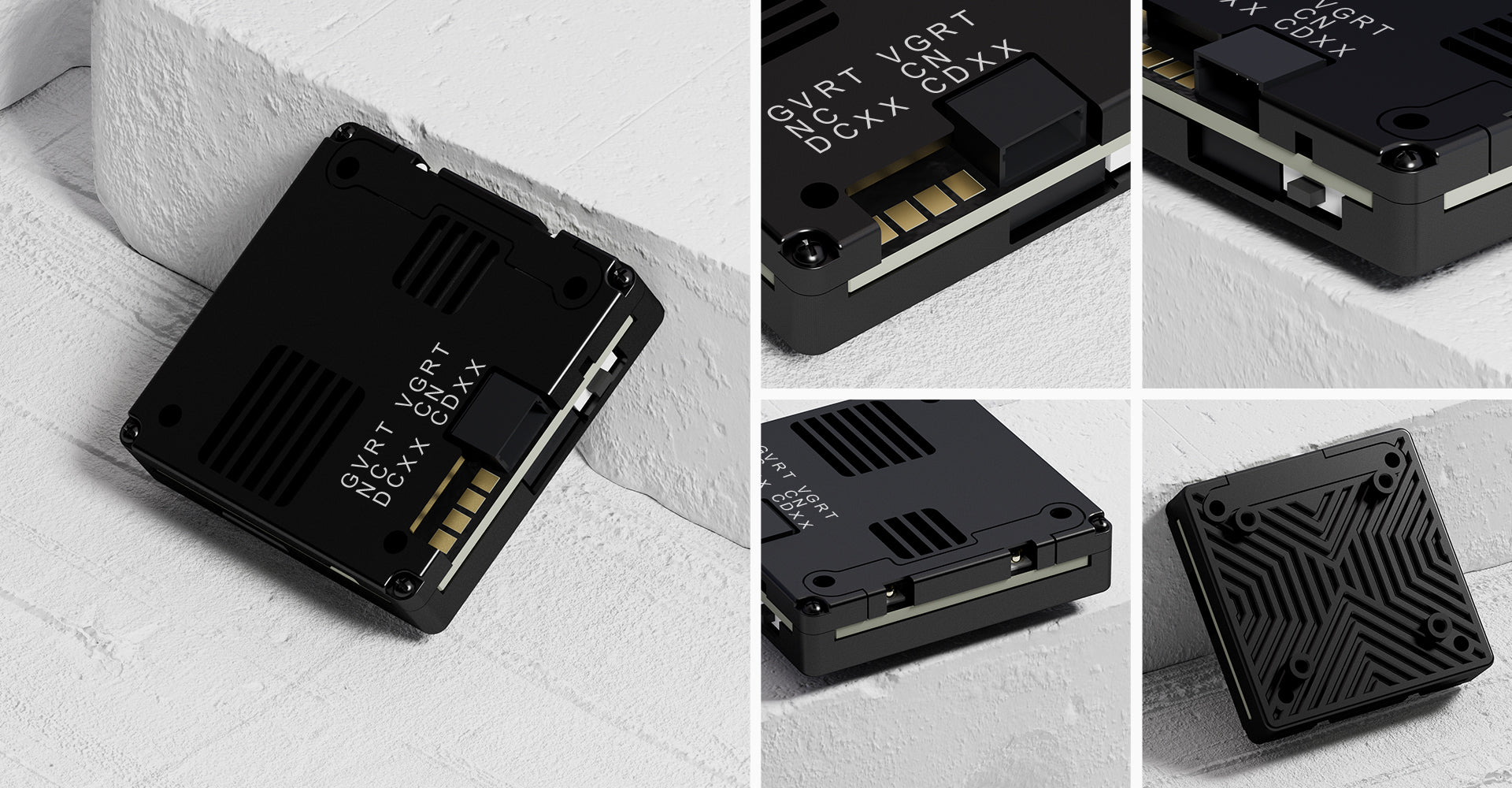

• The module includes a spare power pad, providing an extra opportunity for welding.

• A spare pad is added to provide two power connection modes.

• New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

Specifications

• Model: Avatar V2 module(Dual Antenna)

• Communication Frequency: 725-5.850GHz

• Transmitter Power (EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

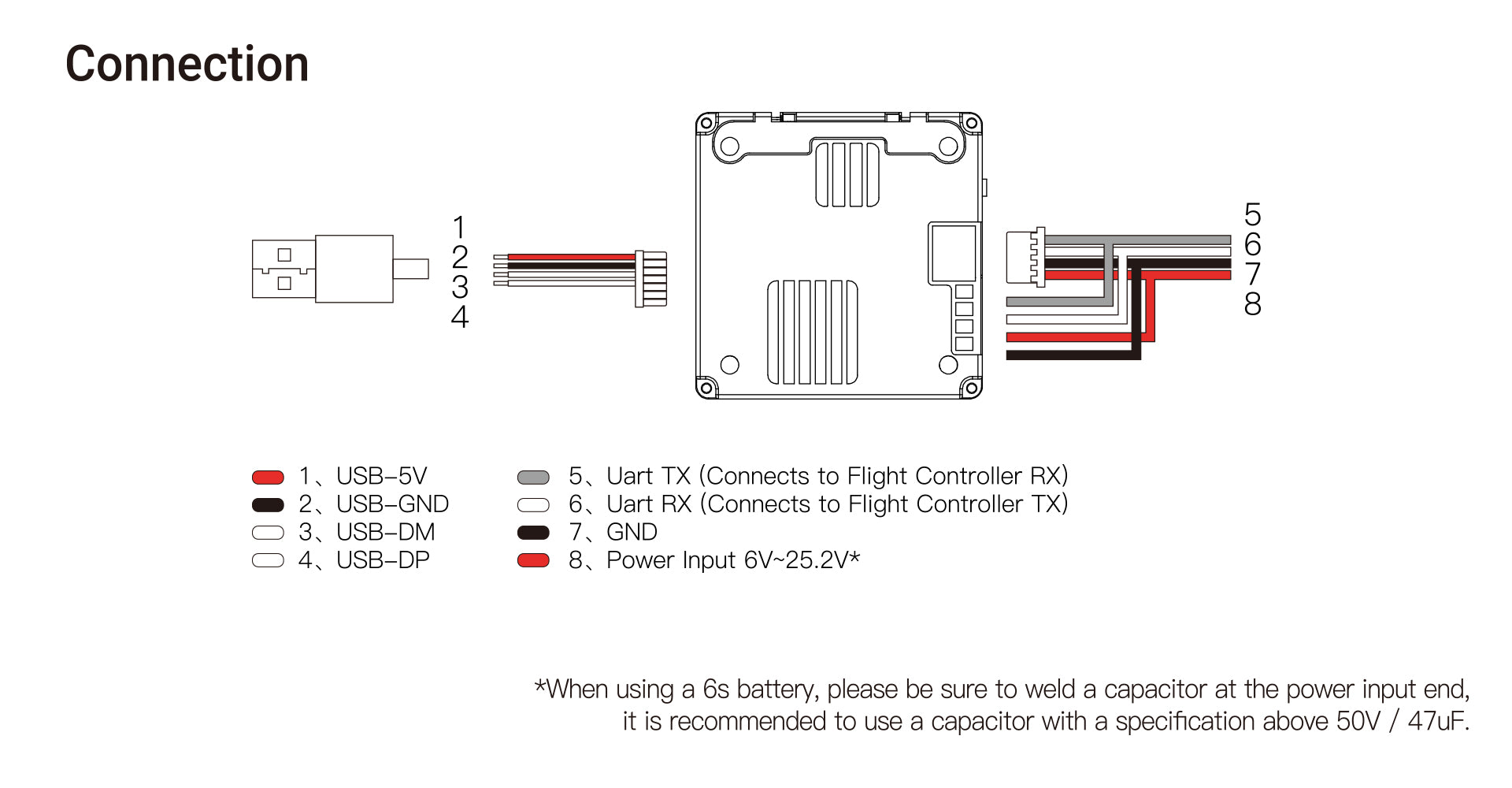

• 1/O Interface: JST1.0x4(Power in)JST0.8x6(USB)

• Mounting Holes: 25.5x25.5mm; 20x20mm

• Dimensions: 33.5x33.5x10.5mm

• Storage: 32G

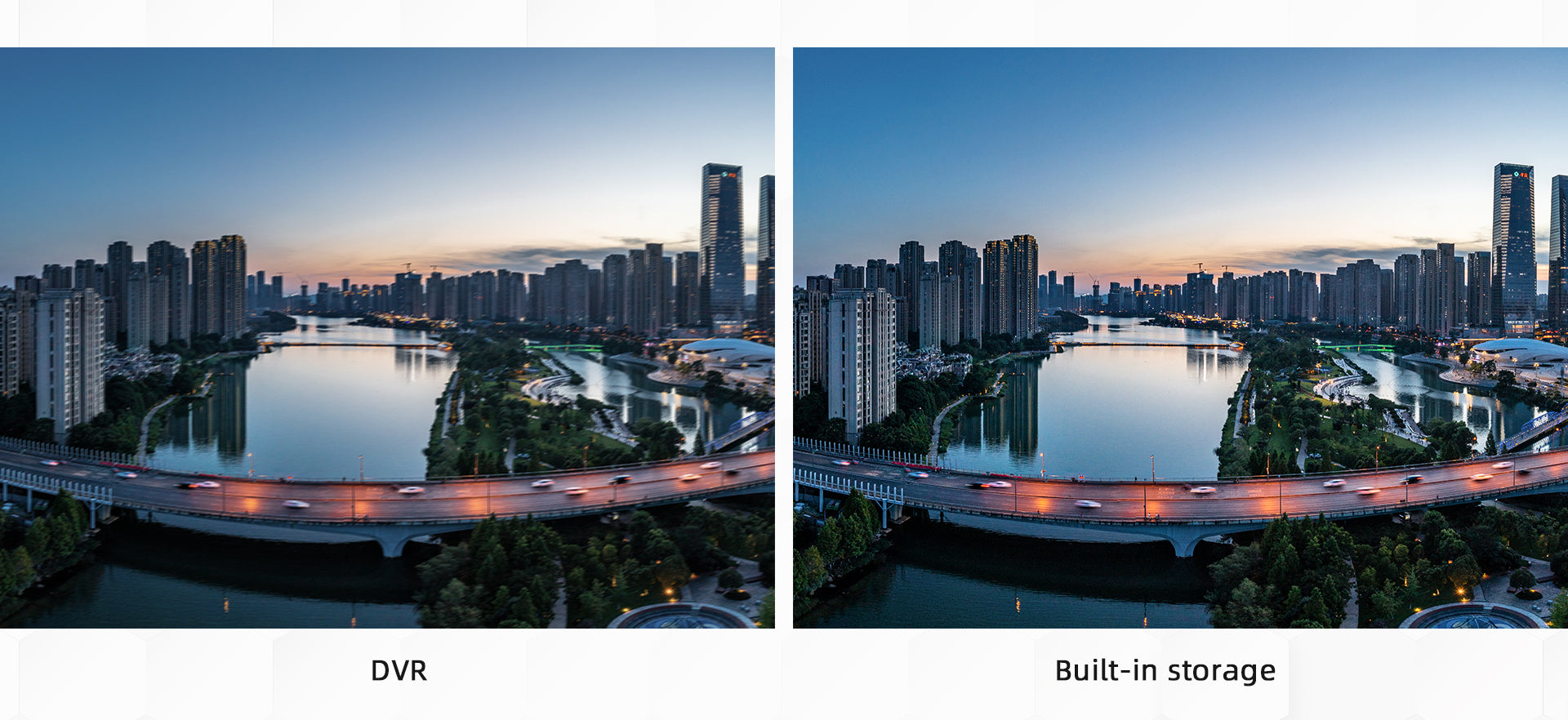

• Recording: 1080p/720p

• Weight: 15.4g

• Operating Temperature: -20-40℃

• Channels: 8

• Wide Power Input: 6V-25.2V

• Supported FC System: Betaflight; Inav; Fettec; ArduPilot; Kiss

• OSD: Canvas mode

• Latency: Average delay 22ms

• Antenna: 2(IPEX)

Includes

• 1x Walksnail Avatar HD V2 20x20 / 25x25 VTX Module - (Dual Antenna Version)
