NewBeeDrone Infinity200 F4 Flight Controller

26.99
34.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Note: the Infinity200 FC now uses a USB-C connector.

          -Infinity200 Flight Controller Firmware on Official Betaflight
          Target name: NBD_INFINITYF4

          Flight Controller Spec:

          • MPU6000 Gyro
          • STM32F405 CPUE @ 168mhz, can be overclocked
          • 3-6S direct battery input
          • 5V 2A
          • 9V 2A 18W Design for DJI FPV Air Unit
          • 5V Camera Power
          • betaflight OSD
          • 31.5x27 CB with 20x20 mounting holes, weight: 5.85g
          • 6 UARTS. UART1 (INVERTER FOR SBUS)
          • UART2 (FREE)
          • UART3 (INVERTED TELEMETRY)
          • UART4 (Free)
          • UART5 (Smart Audio)
          • UART6(Free)
          • Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
          • Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.
          • Built-in solder pads for ESC signal output and power
          • Printed layout instructions ON the board - no need for instructions!
          • DJI FPV Air Unit socket (use UART1 and UART6)

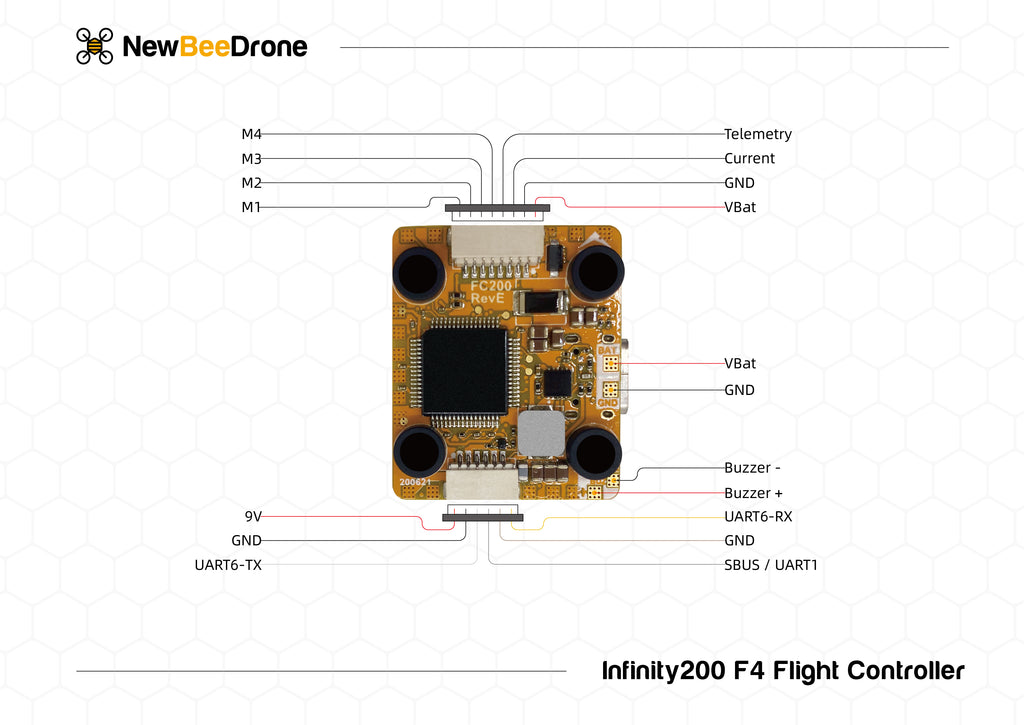

          Pinout for USB-C Version (Recent)

          NewBeeDrone Infinity200 Flight Controller Pinout

          NewBeeDrone Infinity200 Flight Controller Pinout

          Pinout for Micro USB Version

          NewBeeDrone Infinity200 Pinout

          Includes:

          • 1x Infinity200 flight controller
          • 4x Grommets short 4x Grommets Long
          • 1x Infinity200 FC to DJI Air module cable 40mm
          • 1x Infinity200 FC to DJI Air module cable 100mm
          • 1x Infinity200 FC to DJI Air module cable 150mm

          NOTE: We suggest running a Electrolytic capacitor on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
