The NewBeeDrone Infinity 200 V2 is a 55A 3-6S BLHeli_32 4-in-1 20x20 ESC, upgraded to include a full aluminum shield for protection. This new configuration brings an optimized layout, improved power support, and a double-sided heatsink and aluminum shield, which improves protection and heat dissipation from the previous single-sided version.
Check out the rest of our 20x20 ESCs, and the rest of our NewBeeDrone products.
Features
- Upgraded version of the first-generation Infinity 200 ESC
- Double-sided heatsink for improved heat dissipation
- Optimized layout and power support
- Enhanced durability and reliability
- Full aluminum shield coverage
Specifications

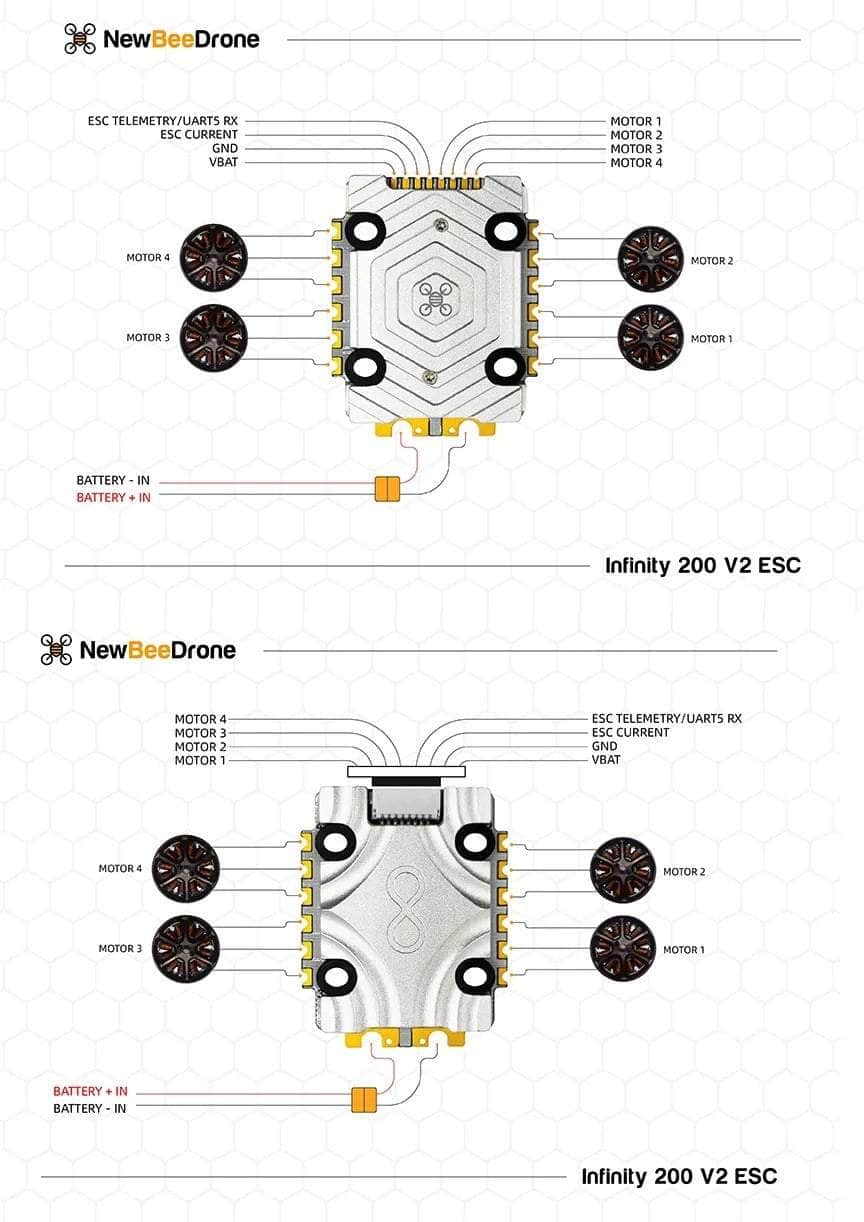

- Signal plug JST1.0 8pin plug with NBD Infinity 200FC
- Smoov performance design by Team NBD
- Solder pad ready for signal and power
- Weight / Size: 13.0g / 39x29.5x8mm
- 8 Layer PCB with 2Oz Copper
- ESC Programming: BLHeli32
- Mounting holes: 20x20mm
- LiPo Power input: 3S-6S
- Burst Current: 65Ax4
- Cont.Current: 55Ax4
- Heatsink design
Includes
- 1x NewBeeDrone Infinity 200 V2 32Bit 55A 3-6S 20x20 4in1 ESC
- 1x FC to ESC cable 30mm
- 1x FC to ESC cable 50mm
- 1x FC to ESC cable 85mm
- 4x Short Grommets & 4x Long Grommets
- 470uf 35v Electrolytic capacitor
- 5x Steel Screw 25mm
- 13x Nylon Nuts
