NewBeeDrone Cricket200 V2 F722 3-6S 20x20 Dual BMI270 Flight Controller

83.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Experience top-tier flight performance with the NewBeeDrone Cricket200 V2 F722 3-6S 20x20 Dual BMI270 Flight Controller. This controller features a 3-6S power range, 20x20 mounting, and dual BMI270 processing power for a stable, reliable flight experience. Get ready for smooth, long-distance flight with this advanced drone controller.

          Check out our 20x20 FCs, and all our NewBeeDrone products!

          Features

          • Built-in 4 IN 1 ESC socket (including ESC telemetry, External current sensor) JST1.0 8Pin
          • Plug and plug with NBD Cricket200 ESC/Infinity200 ESC. Also compatible with most of the ESC on the market.
          • Built-in solder pads for ESC signal output and power
          • Printed layout instructions ON the board - no need for instructions!
          • DJI FPV Air Unit socket (use UART1 and UART6)
          • 6 UARTS on board.

          Specifications

          • MCU：STM32F722 - 216MHz
          • Gyro: 2 BMI270
          • BEC: 5V/3A
          • Interface：6
          • Mounting Size: 20x20mm
          • Size: 31.5x27mm
          • Input Power:  3-6S

          Additional Infomation

          • 3V3 100mA
          • 9V 2A 18W Design for DJI FPV Air Unit
          • 5V Camera Power
          • BetaFlight OSD
          • UART1 (Only RX, Air Unit connector)
          • UART2 (Free)
          • UART3 (Free)
          • UART4 (TX and RX connected together for F.Port)
          • UART5 (Only RX, ESC Telemetry)
          • UART6 (MSP/Configuration Port for Air Unit)
          • Firmware can be downloaded HERE.

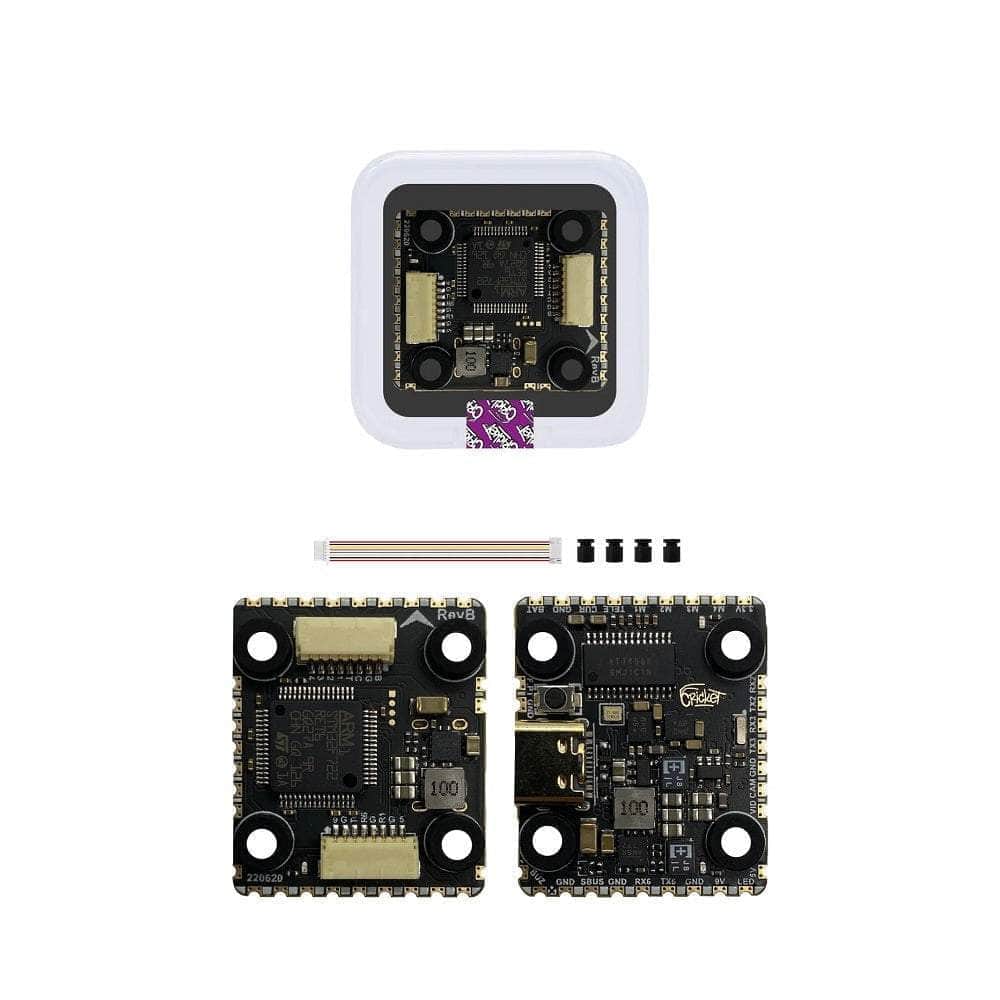

          Includes

          • 1x NewBeeDrone Cricket200 V2 F722 3-6S 20x20 Dual BMI270 Flight Controller
          • 4x Grommets short 4x Grommets Long
          • 1x Cricket200 FC to DJI Air module cable 70mm

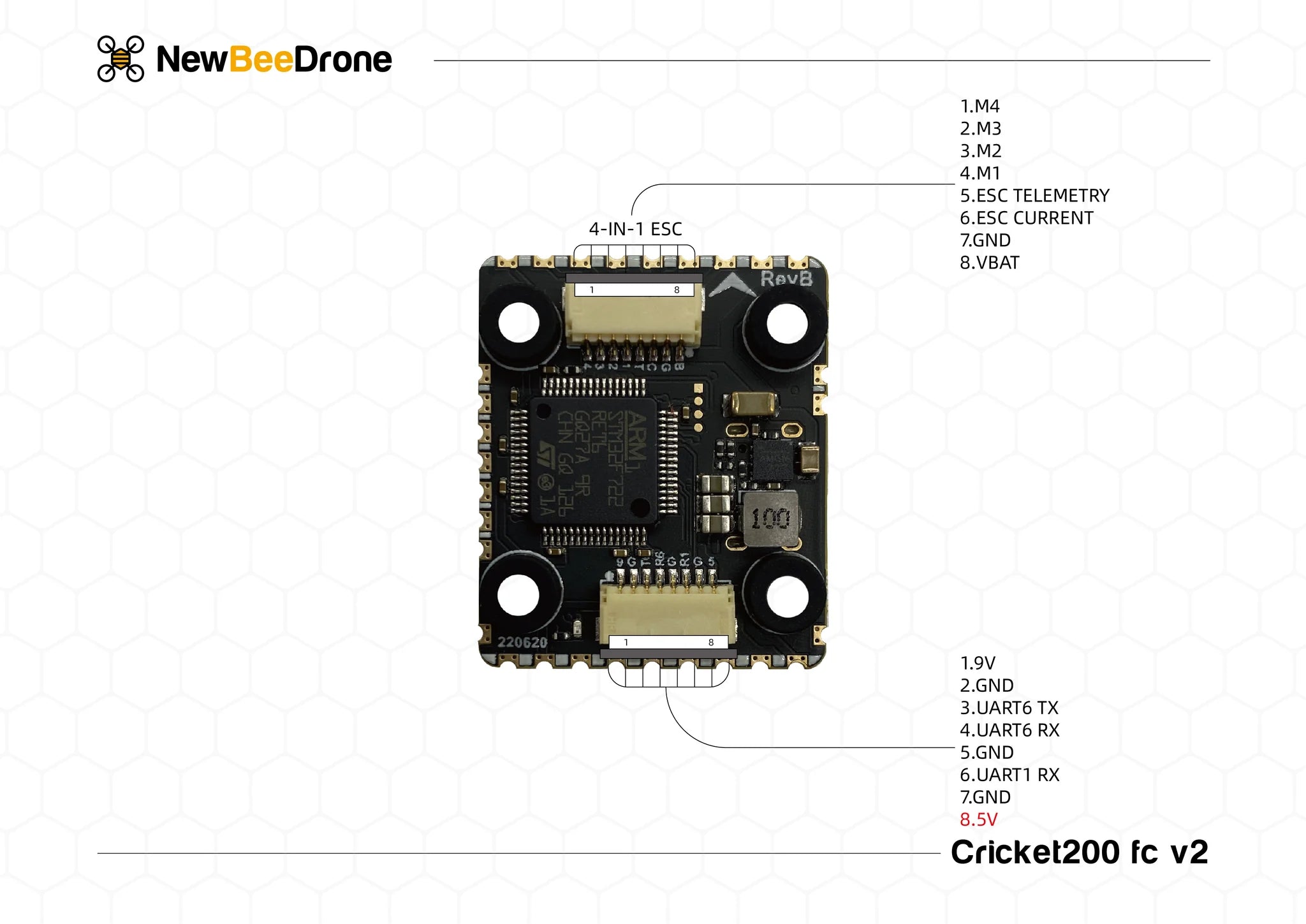

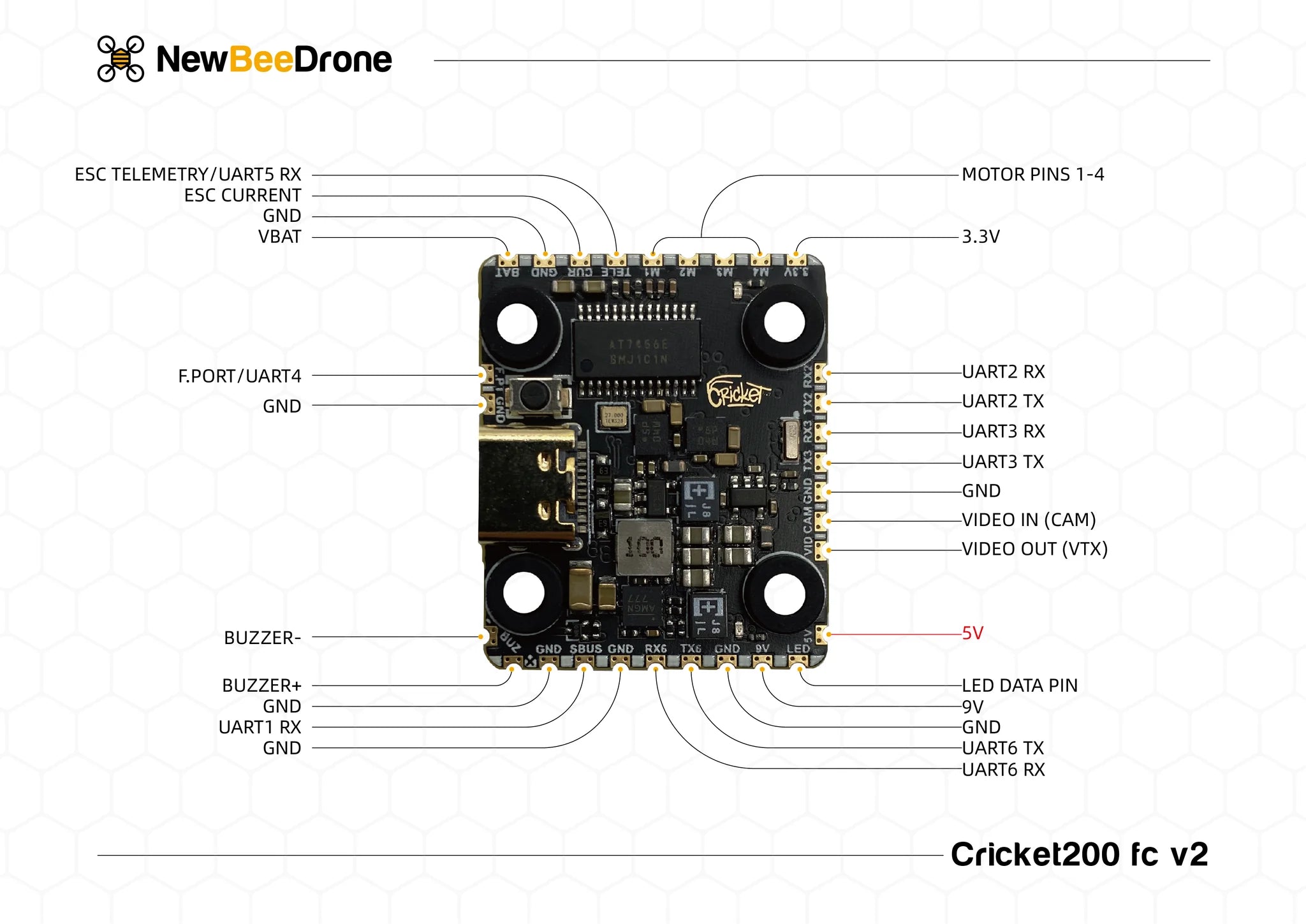

          Wiring Diagram
