NewBeeDrone Cricket200 V2 ESC

The Cricket200 V2 ESC are now fully covered by aluminum shield. Base on the first generation Cricket200 ESC, we also optimize the layout and the Power support for the whole system. The new double sided Heatsink/Aluminum Shield compare to single side Heatsink solution can provide better protection and heat dissipation.

Cricket 200 ESC Spec:

• LiPo Power input: 3S-6S
• ESC Programming: BLHeli32
• Cont.Current: 55Ax4
• Burst Current: 65Ax4
• Weight / Size: 13.0g / 39x29.5x8mm
• Mounting holes: 20x20mm

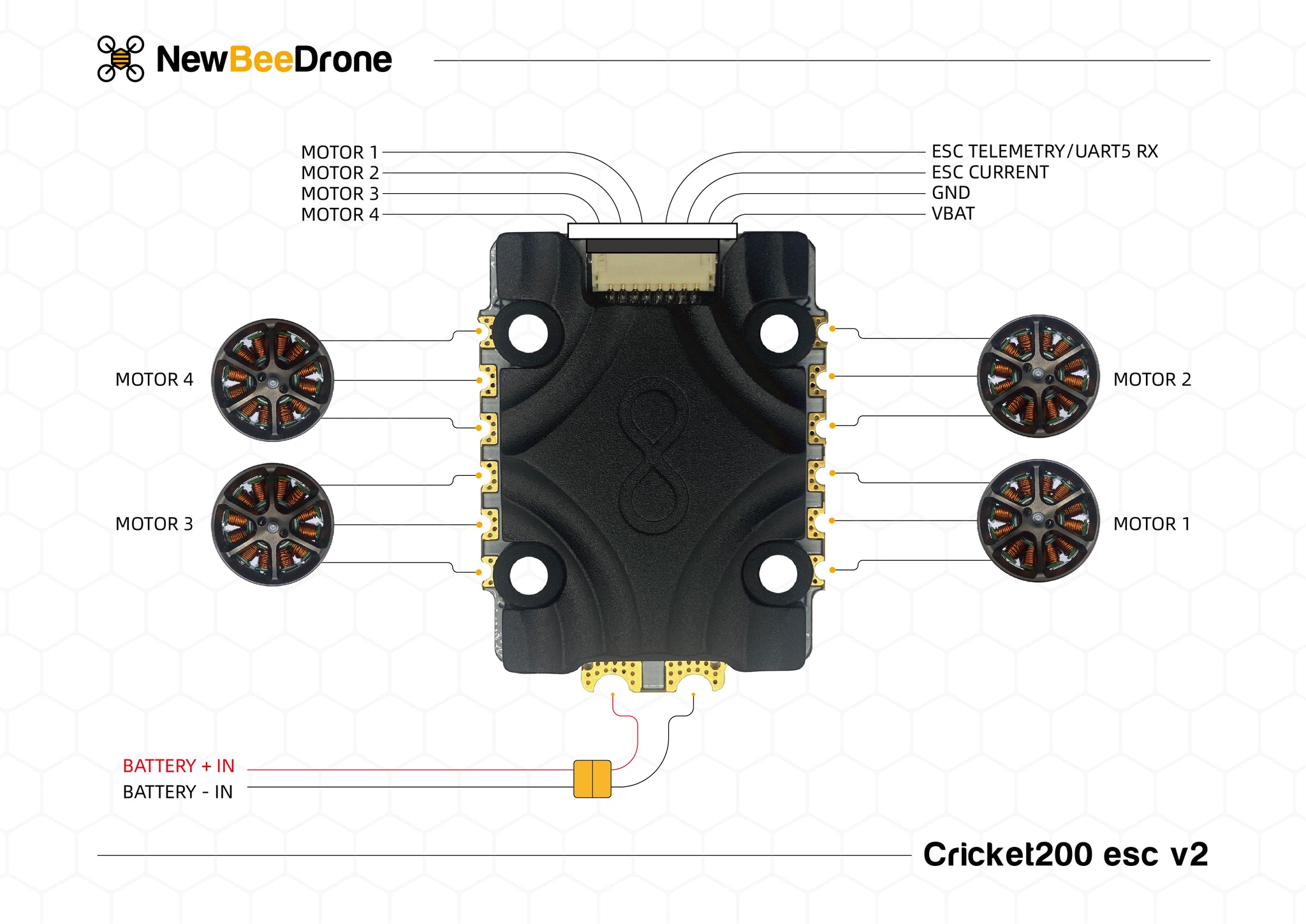

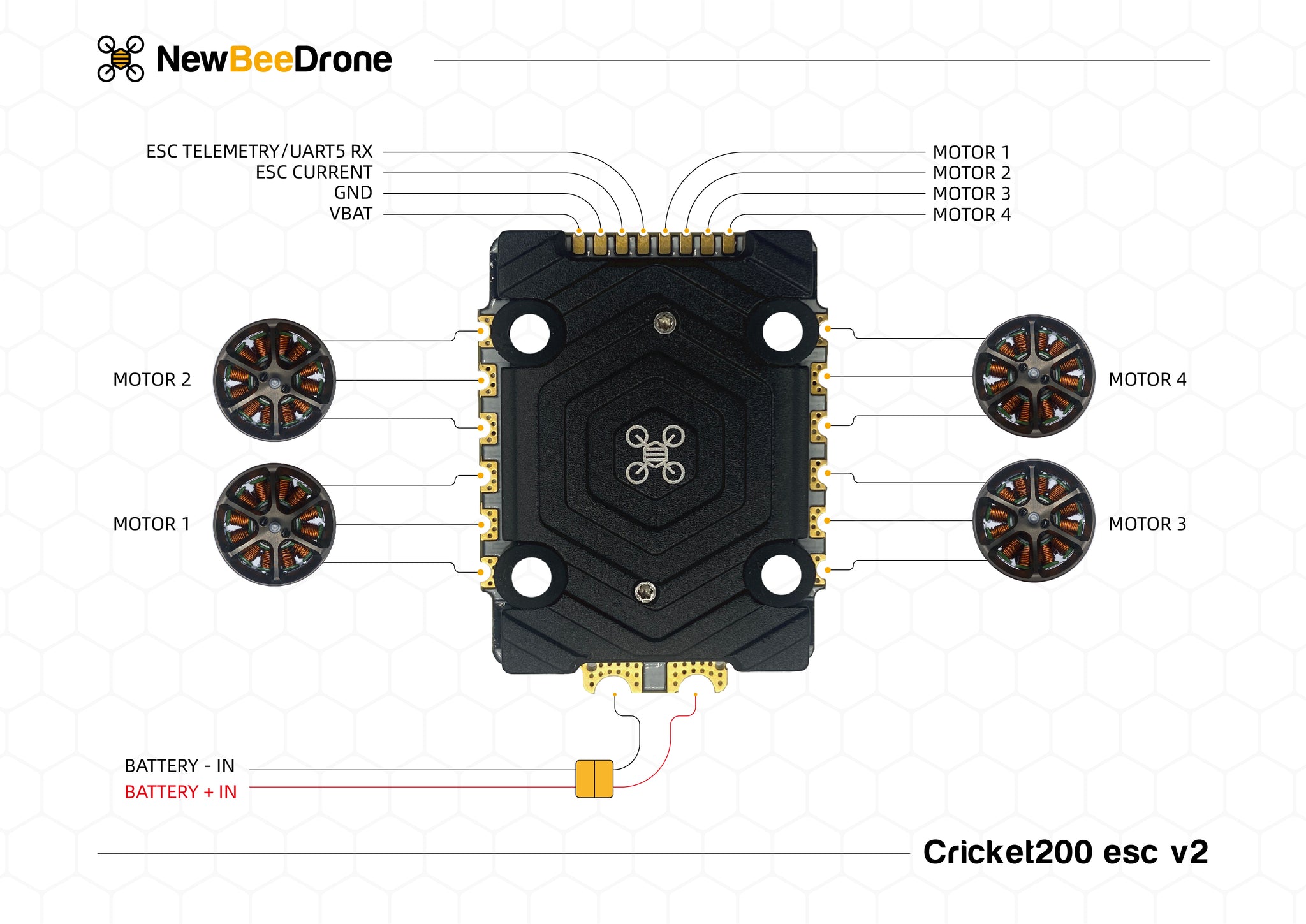

• Signal plug JST1.0 8pin plug with NBD Cricket200FC
• Solder pad ready for signal and power
• Heatsink design
• 8 Layer PCB with 2Oz Copper
• Smoov performance design by Team NBD

Includes:

• 1x Cricket200 v2 4 in 1 ESC BLHeli32 55A
• 4x Short Grommets & 4x Long Grommets
• 5x Steel Screw 25mm
• 13x Nylon Nuts
• 1x Cricket200 FC to Cricket200 ESC cable 30mm
• 1x Cricket200 FC to Cricket200 ESC cable 50mm
• 1x Cricket200 FC to Cricket200 ESC cable 85mm
• 470uf 35v Electrolytic capacitor
