The MATEKSYS PM20S-2 Power Module is ready to distribute ultimate power for your systems. Equipped with 100V DC components, it supports an input voltage range of 9V to 85V DC with built-in 85V TVS protection. This power module has two independent step-down voltage regulators with continuous current support up to 15A and peak currents of up to 22A. Compact and lightweight, the PM20S-2 is ideal for advanced projects requiring robust and adaptable power solutions.
Check out all our BECs and PDBs, as well as the entire Matek selection!
Features
- Dual Step-Down Voltage Regulators
- Compact and Lightweight
- Wide Input Voltage Range
- High Voltage Capacity
- High Current Support
- Durable Design

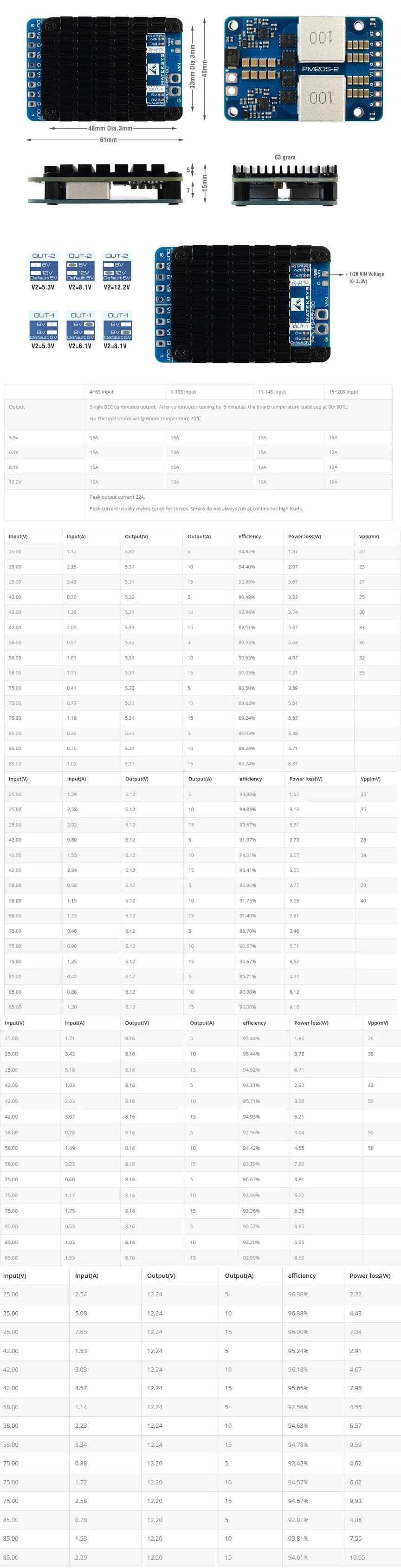

Specifications
- Input Voltage Range: Supports 9V to 85V DC with 85V TVS protection
- 2x Independent Step-Down Voltage Regulators
- Regulator 1: 5.3V / 6.1V / 8.1V output options
- Supports continuous output current: up to 15A
- Regulator 2: 5.3V / 8.1V / 12.2V output options
- Peak current of up to 22A
- Supports continuous output current of up to 15A
- 1K: 25K voltage divider built-in for 3.3V-based voltage ADC
- Made with: 100V DC components
- Size & Weight: 61x40x15mm, 63g
- Peak current: up to 22A
Includes
- 1x Matek PM20S-2 Power Module
