MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX

The MATEKSYS mLRS 2.4GHz TX Module Kit offers reliable long-range communication, ideal for drone flights and remote control applications. It includes the mR24-30 TX, IPEX MHF1 to SMA and RP-SMA adapter cables, and a 5V fan for stable operation.

Check out the rest of our receivers, as well as all of our Matek selection!

Features

• Reliable Long-Range Communication
• Adapter Cables Included
• mR24-30-TX Module
• Customizable Setup
• Cooling Fan

Specifications

mR24-30

• RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
• Antenna Connector: IPEX MHF-1 to SMA/RP-SMA
• STM32G431KB: mLRS firmware
• RF Frequency: 2.4GHz ISM
• LoRa SX1281: TCXO
• PA/LNA: SKY68383-11

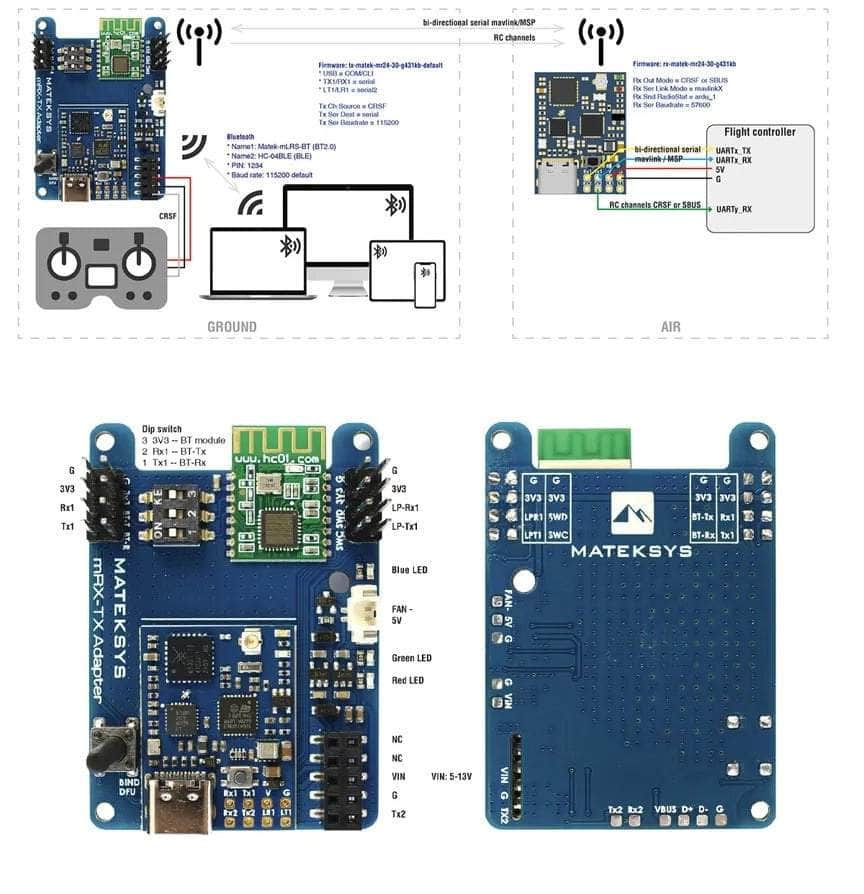

mRx-Tx ADAPTER

• Built-in: 5V fan controller, running if output power ≥ 500mW
• Power Supply: 5-13V DC @ JR_PIN3 (VIN)
• Red and Green LEDs: for mLRS status
• One button: DFU mode and Bind
• Built-in: HC-04 Bluetooth module
• Blue LED: Bluetooth status
• TX2: RC IN (CRSF)

Includes

• 1x MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX
• 1x IPEX MHF1 to RP-SMA adapter cable (5cm)
• 1x IPEX MHF1 to SMA adapter cable (5cm)
• 1x 5V Fan (25×25×10mm)
• 1x Hardware Kit
