Lumenier TOURQ 3120 FPV Motor - 500KV

The Lumenier TOURQ 3120 is a high-power 12S 500KV motor designed to handle a wide range of applications, from heavy-lift cinematography rigs to industrial drone operations. Its reinforced 6mm inner shaft and premium materials deliver maximum strength and reliability, even under extreme loads. With a standard 5mm prop shaft and broad mounting compatibility, it’s ready for your most demanding flights.

Features

• High quality materials for durability and performance
• Standard 5mm propeller shaft
• Increased 6mm inner shaft
• Designed for 12S power
• Sleek black design

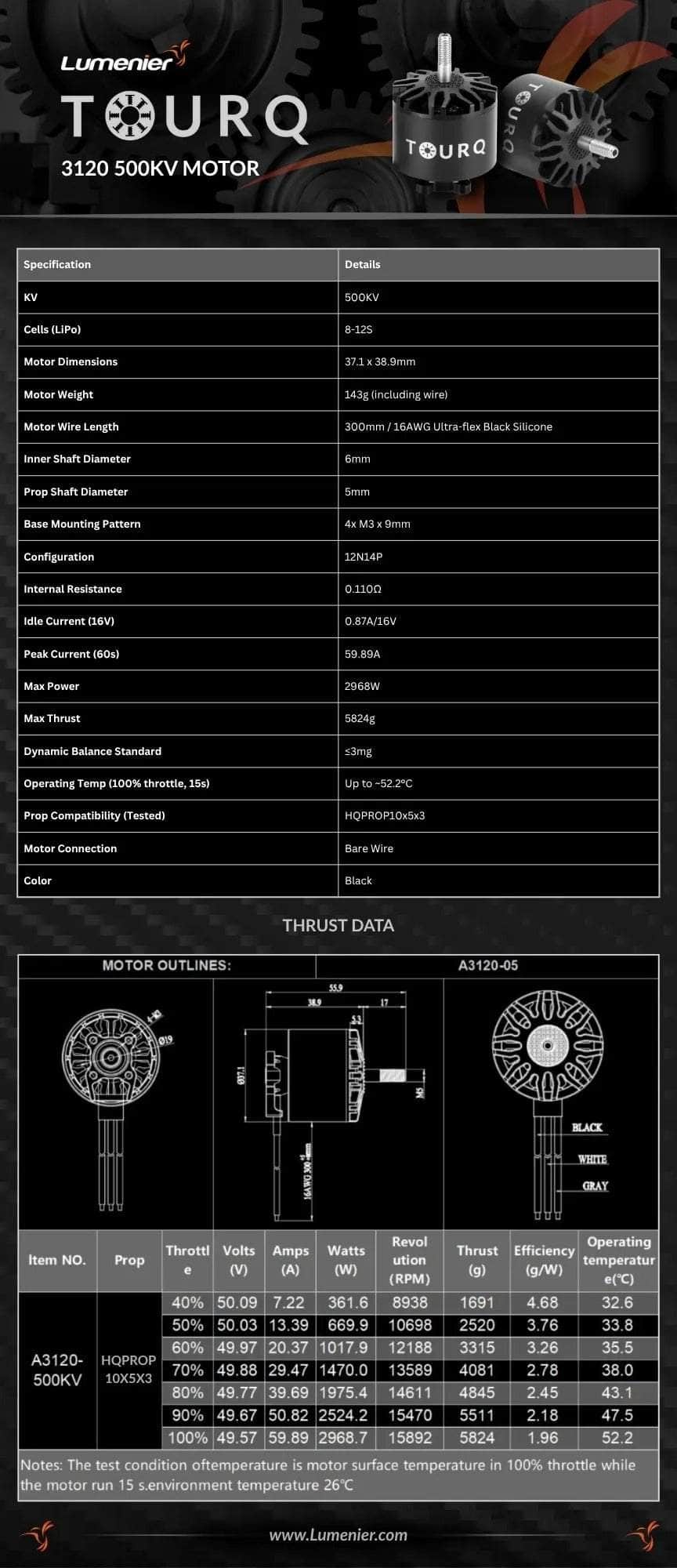

Specifications

• Motor Wire Length: 300mm / 16AWG Ultra-flex Black Silicone

• Operating Temp (at 100% throttle for 15s): Up to ~52.2°C

• Prop Compatibility (Tested): HQ PROP 10x5x3

• Base Mounting Pattern: 4x M3 x 9mm

• Motor Dimensions: 37.1 x 38.9mm

• Motor Weight: 143g (including wire)

• Dynamic Balance Standard: ≤3mg

• Motor Connection: Bare Wire

• Internal Resistance: 0.110Ω

• Peak Current (60s): 59.89A

• Inner Shaft Diameter: 6mm

• Prop Shaft Diameter: 5mm

• Idle Current (16V): 0.87A

• Configuration: 12N14P

• Max Power: 2968W

• Max Thrust: 5824g

• Cells (LiPo): 8-12S

• Stator: 3120

• Color: Black

• KV: 500KV

Includes

• 1x Lumenier TOURQ 3120 FPV Motor - 500KV
• 4x Socket Head Hex Screws 12.9 Carbon Alloy Steel (Black Oxide) M3 x 10mm
• 4x Socket Head Hex Screws 12.9 Carbon Alloy Steel (Black Oxide) M3 x 8mm
• 4x Socket Head Hex Screws 12.9 Carbon Alloy Steel (Black Oxide) M3 x 5mm
• 1x Standard M5 Nylon Insert locking Prop Nut
• 1x Aluminum Washer - Serrated M5
