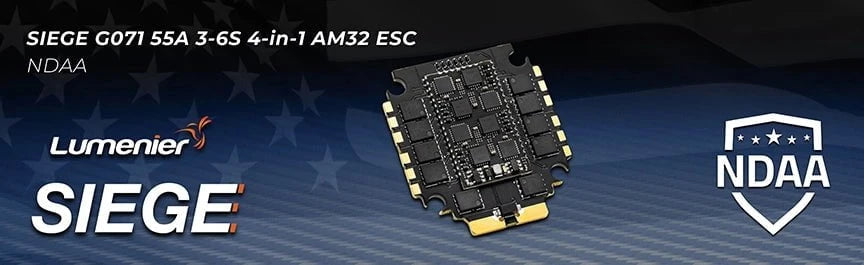

Lumenier Siege 55A 3-6S AM32 4-in-1 ESC - NDAA

Lumenier Siege G071 55A 3-6S 4-in-1 AM32 NDAA ESC has arrived. Built for 3S to 6S LiPo batteries, this powerful ESC works with Betaflight and KISS systems. Delivering a constant current of 55A and a burst current of 65A, it provides ideal power for racing or freestyle. Ideal for builders and pilots seeking unmatched reliability and precision, this 4-in-1 ESC is designed to level up your drone!

Make sure to check out our other ESCs and our Lumenier product selection!

Features

• Motor Protocol Support - Servo PWM and DSHOT 300/600
• Pinout - VBAT/GND/CURR/TELEM/M1/M2/M3/M4
• Firmware upgradable via Betaflight passthrough
• Betaflight and KISS Standard ESC Telemetry

• Variable PWM Frequency
• Sinusoidal startup Mode
• Stuck Motor Protection
• Bi-directional DSHOT
• AM32 Firmware
• NDAA (Designed in the USA)

Specifications

• Mounting holes: 30.5mm x 30.5mm
• Input: 3S to 6S battery voltage
• Constant Current: 55Amp
• Dimensions: 45x39x5mm
• Burst Current: 65A
• Weight: 14g

Links

• Lumenier Siege 55A ESC Manual

• Download the latest AM32 manual and configurator here

• Download the original AM32 .hex file for the Lumenier SIEGE ESC here

Includes

• 1x Lumenier Siege G071 55A  2-6S 4-in-1 AM32 ESC - NDAA
• 1x 25mm 8 pin JST-SH Cable
• 1x 35V 1000uf Capacitor
• 4x M3 Rubber Grommets
