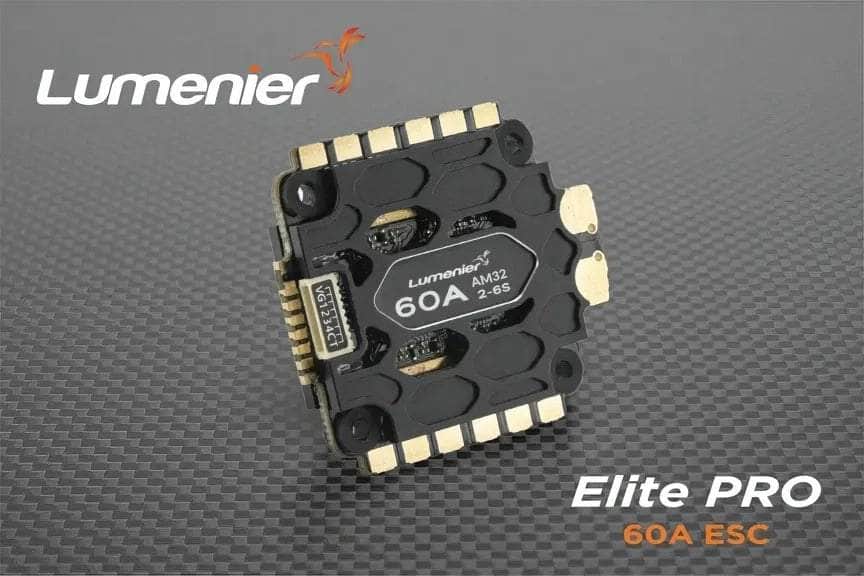

Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30

The Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC delivers maximum power and efficiency for Cinelifters, large drones, and high-speed racing builds, supporting up to 60A per channel on 2-6S LiPo batteries. Featuring the latest AM32 firmware, it offers ultra-fast processing, lower latency, and real-time telemetry for advanced flight control. Its heavy-duty 2mm copper PCB and dual aluminum heatsinks ensure superior heat dissipation, making it the ultimate choice for high-performance drones.

Make sure to check out our other ESCs and our Lumenier product selection!

Features

• Supports DSHOT 1200/600, Proshot, Oneshot125 (125-250 µs), Oneshot42 (41.7-83.3 µs), and Multishot (5-25 µs) with Auto-Detection
• Synchronous Rectification Technology for Improved Efficiency and Damped Light
• Powerful Regenerative Braking/Active Braking
• Dual heatsinks for Improved Cooling
• Programmable PWM Frequency
• 2-6S LiPo Battery Compatible
• RGB LED Control
• Adaptive Timing
• ESC Telemetry
• Lightweight
• AM32

Specifications

• Dimensions: 43 x 46 x 9 mm (including heatsink)
• Mounting Holes: 30.5 x 30.5 mm
• Constant Current: 60 Amps
• Burst Current: 100 Amps
• Input: 2-6S LiPo
• Weight: 27 g

Links

• AM32 Configurator
• AM32 Manual

Includes

• 1x Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30
• 1x 8pin to 8pin JST-SH cable
• 1x 35V 1000uF Capacitor
