JHEMCU GHF745 F7 HD 3-6S AIO Whoop/Toothpick Flight Controller (w/ 50A AM32 4in1 ESC)

JHEMCU GHF745 F7 HD 3-6S AIO Whoop/Toothpick Flight Controller is the perfect choice for professional racing, freestyle, long-range, & cinematic drone pilots. This powerful controller features a 50A AM32 4in1 ESC and supports 3-6S batteries. This is an O3 compatible AIO flight controller!

Browse the rest of our Whoop AIO boards and the rest of our JHEMCU selection!

 Features

• HD plug-in port
• MPU6000 Gyro
• It comes with a practice solder board

Specifications

• Brand name: JHEMCU

• Model: GHF745AIO

• MCU： STM32F745/216MHZ

• IMU: MPU6000/Gyro/Accel

• OSD： AT7456E

• Baro： YES

• Blackbox： 8MB

• Input voltage: 3S-6S（11.5V-26V）

• 5V-BEC： 5V/2.5A ±0.1V

• 10V-BEC: 10V/2A ±0.1V

• Receiver： ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

• HD： YES

• USART: UART1,UART2,UART3,UART4,UART5,UART6

• IIC: IIC1

• Led_Strip: YES

• Buzzer: 5V

• USB: Micro USB

• Current port: YES

• Voltage sensor: YES

• DFU button:  YES

• FC Firmware: betaflight_4.4.2 JHEF745.HEX

• Size: 33x33mm

• Mounting Hole:25.5x25.5x3mm

• Weight: 8.5g
• ESC Current: 50A

• ESC TYPE: AM32


Includes

• 1x JHEMCU GHF745 F7 HD 3-6S AIO Whoop/Toothpick Flight Controller (w/ 50A AM32 4in1 ESC)
• 1x XT60

• 4x M2 x 6.5MM shock absorber

• 2x 50A-14AWG wire

• 1x O3 connecting line 5P to 6P

• 1x 470UF/35V capacitor

• 1x TYPE-C adapter board

• 4x 28AWG Wire

• 1x Welding practice board

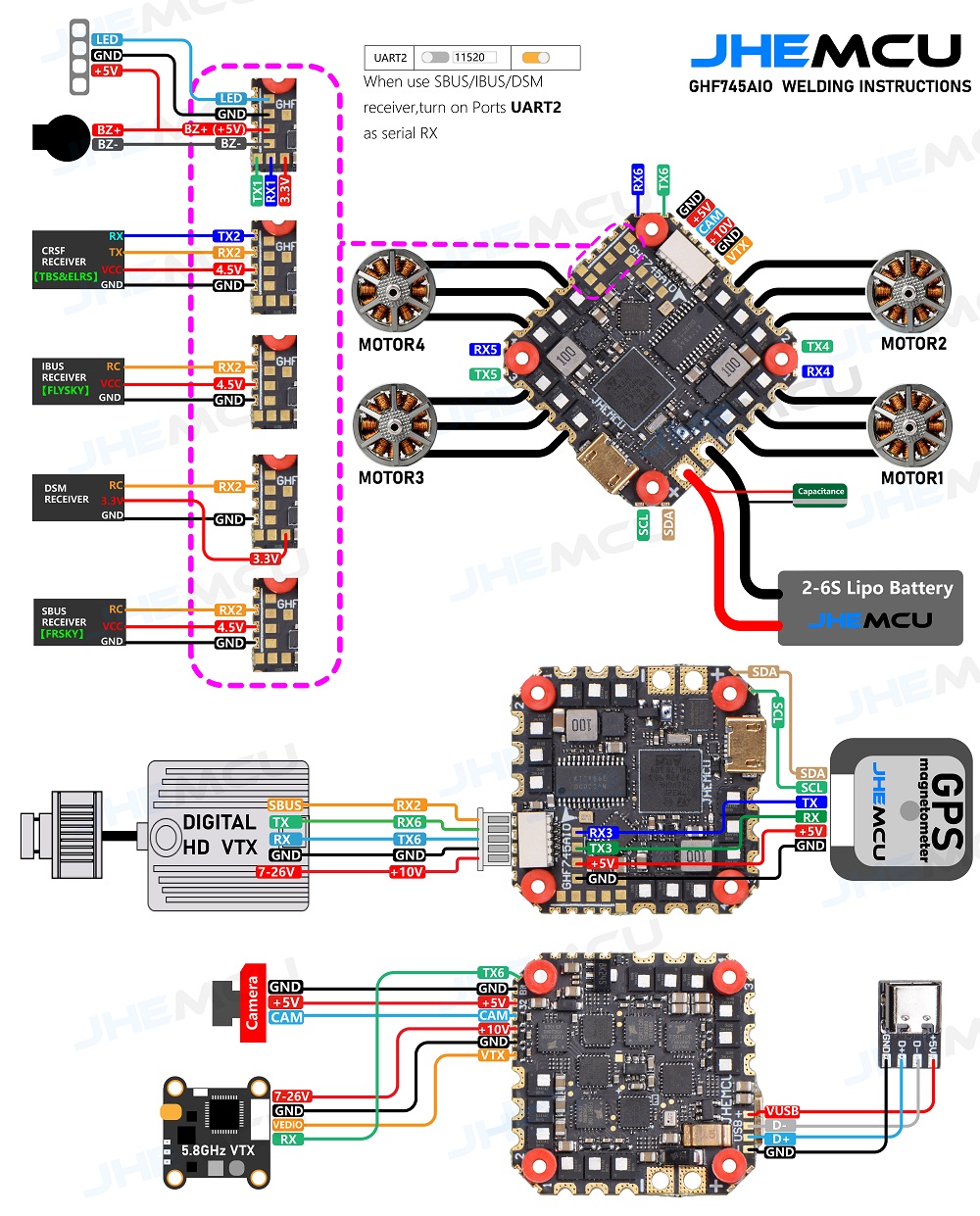

Wiring Diagram
