iFlight Blitz F7 V1.1 30x30 Flight Controller

The new iFlight blitz series offers stellar performance at an affordable price. With an F7 processor and high quality BMI270 gyro, this FC is all you could ever need for daily cruising or even hardcore freestyle and racing!

Check out our other 30x30 FCs, as well as the rest of our iFlight selection!

Specifications

• MCU: STM32F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456E
• Blackbox: 32MB
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• BEC: 5V 2.5A
• I2C: SDA / SLA pads
• LED: Yes
• Beeper: Yes
• Firmware Target: IFRC-IFLIGHT_BLITZ_F722
• Mounting Pattern: 30.5x30.5mm
• Dimensions: 36.5x35mm
• Weight: 7.8g

Includes

• 1x iFlight Blitz F7 V1.1 30x30 Flight Controller

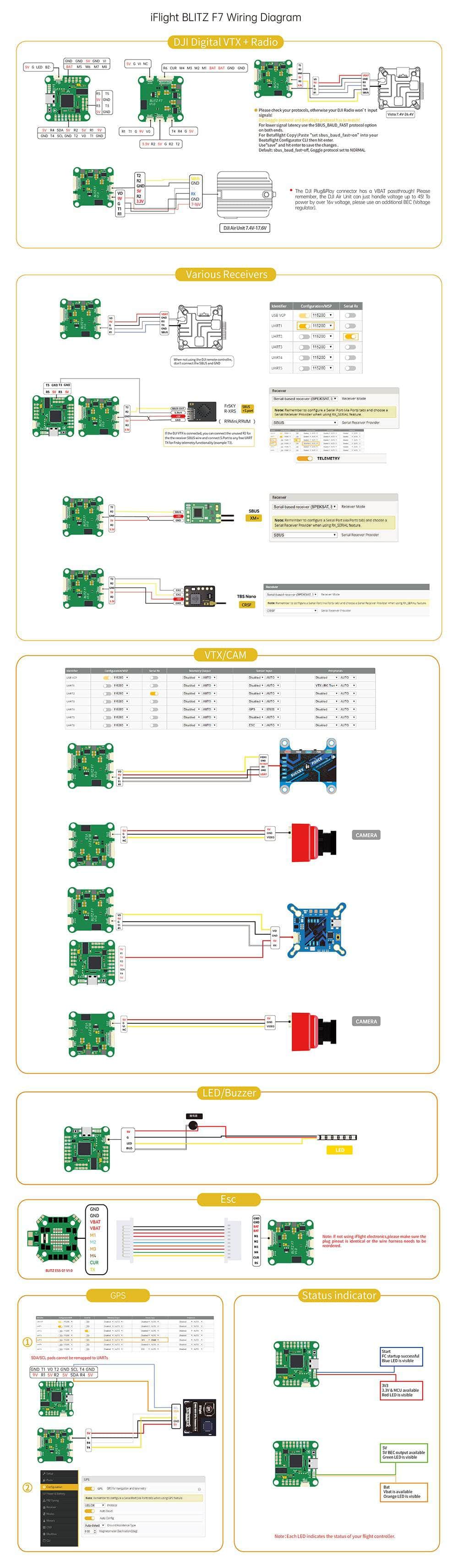

Wiring Diagram
