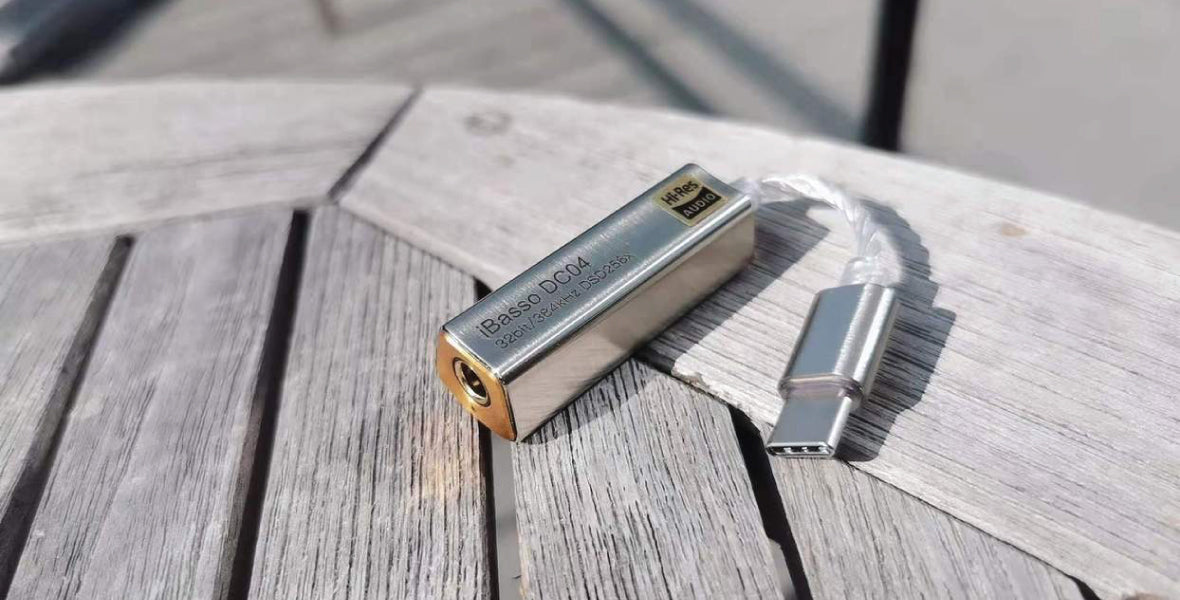

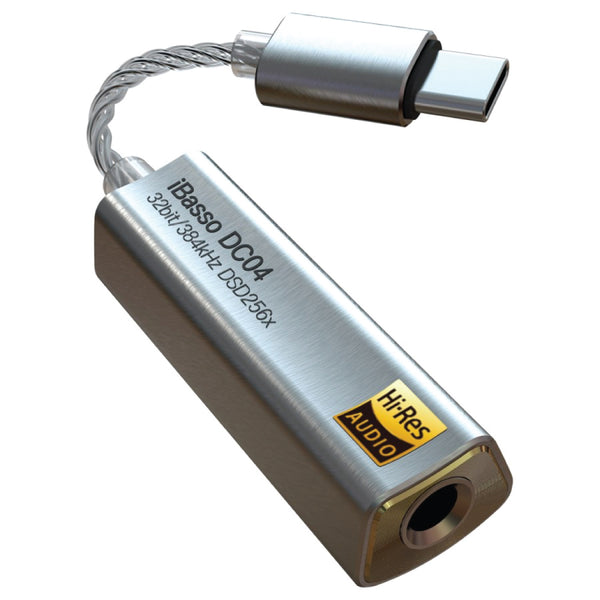

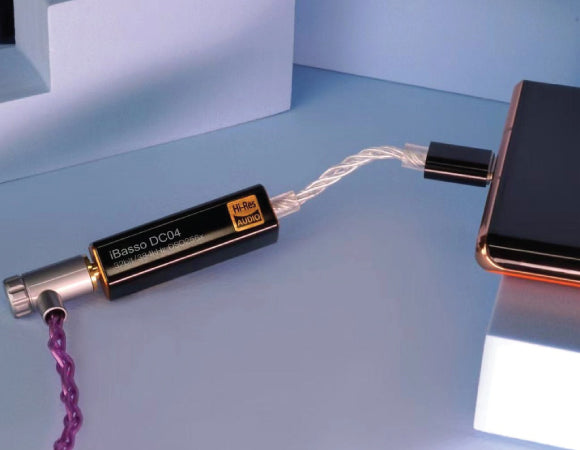

Driving a 4.4mm balanced cables with your smartphone? The iBasso DC04 does it with ease and grace.
PRAVEEN KAMATH
Headphone Guru
About PRAVEEN KAMATH
DESCRIPTION
ENJOY MUSIC IN EXCELLENT CLARITY AND UBER LOW DISTORTION

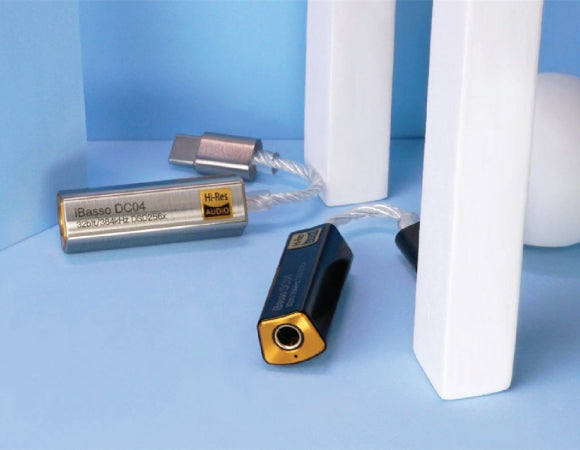

iBasso features dual chipset setup including two CS43131 high-performance DAC chips from Cirrus Logics. These DACs offer excellent audio clarity along with super low distortion and reduced background noise. To offer the best performance, these DACs are placed in a balanced setup, one for each channel.
SPORTS 4.4 MM PENTACONN FULLY BALANCED HEADPHONES JACK

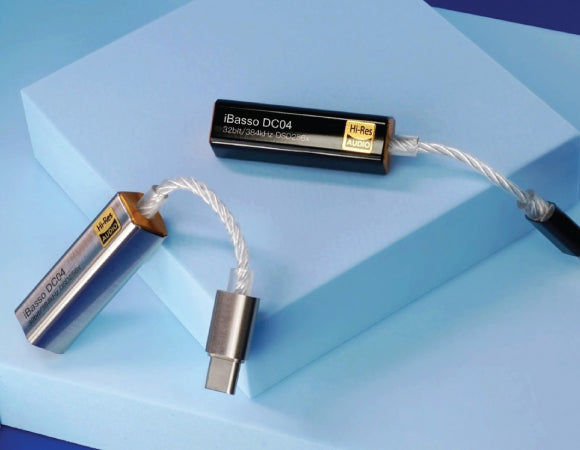

You get the 4.4mm fully balanced headphone jack with DC04 and it also supports the latest Japanese Pentaconn 4.4mm headphone plugs making it more reliable and durable than the traditional 2.5mm and 3.5mm plugs. iBasso DC04 can be used with even the high-end IEMs as well as headphones with 4.4mm termination.
DELIVERING POWER OUTPUT WITH LOW SIGNAL TO NOISE RATIO

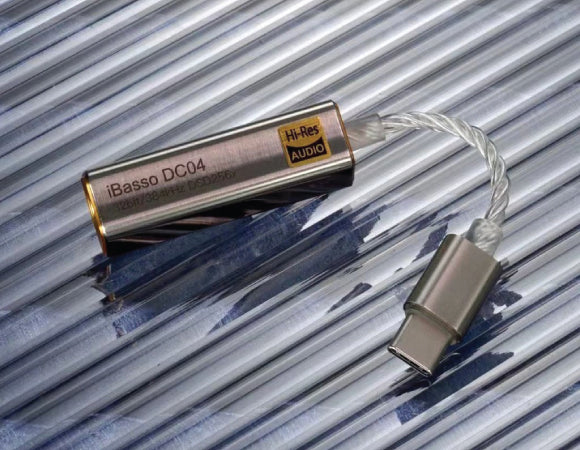

iBasso DC04 is designed to drive headphones and IEMS with ease through a high level of power output. It offers an output power rating of 195mW @ 32惟 of the load. At 300惟 of load, while it has an output power of 4Vrms. Additionally, with a high Signal to Noise Ratio of 133 dB, the background noise is at the minimum.
FINER VOLUME ADJUSTMENT WITH CUSTOM APPLICATION

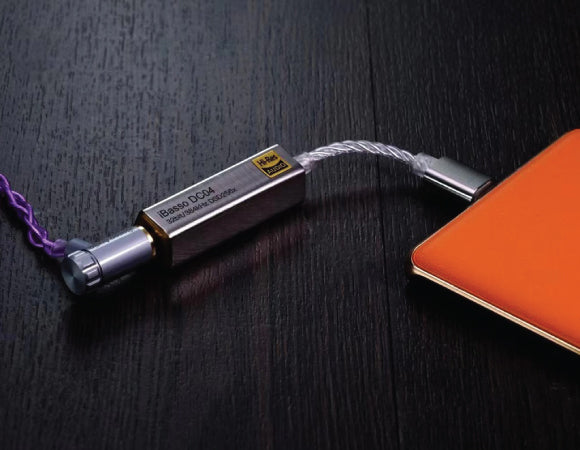

Apart from a strong power output of 4Vrms at 300惟, iBasso DC04 offers a dedicated application which allows you to manage volume with over 64 levels of volume adjustment. iBasso DC04 has been designed to drive even the most sensitive headphones and IEMs.
SPECS
| DAC CHIP | CS43131*2 |
| INPUT | 1x Male USB-C |
| OUTPUT | 1x Female Balanced Jack 4.4mm |
| THD+N | 锕�0.00028%(32惟 load, 1.2Vrms) 0.00039%(32惟) |
| OUTPUT POWER | 195mW @ 32惟 |
| SNR | 133dB |
| FREQUENCY RESPONSE | 20Hz - 40kHz 卤0.5dB |
| BOTTOM NOISE | 0.9 渭V |
| OUTPUT IMPEDANCE | 锕�0.12惟 |
| PCM | PCM up to 32bit 384kHz |
| DSD | Native DSD up to DSD256 |
| WEIGHT | 11g |
| DIMENSIONS | 110 x 43.5mm |

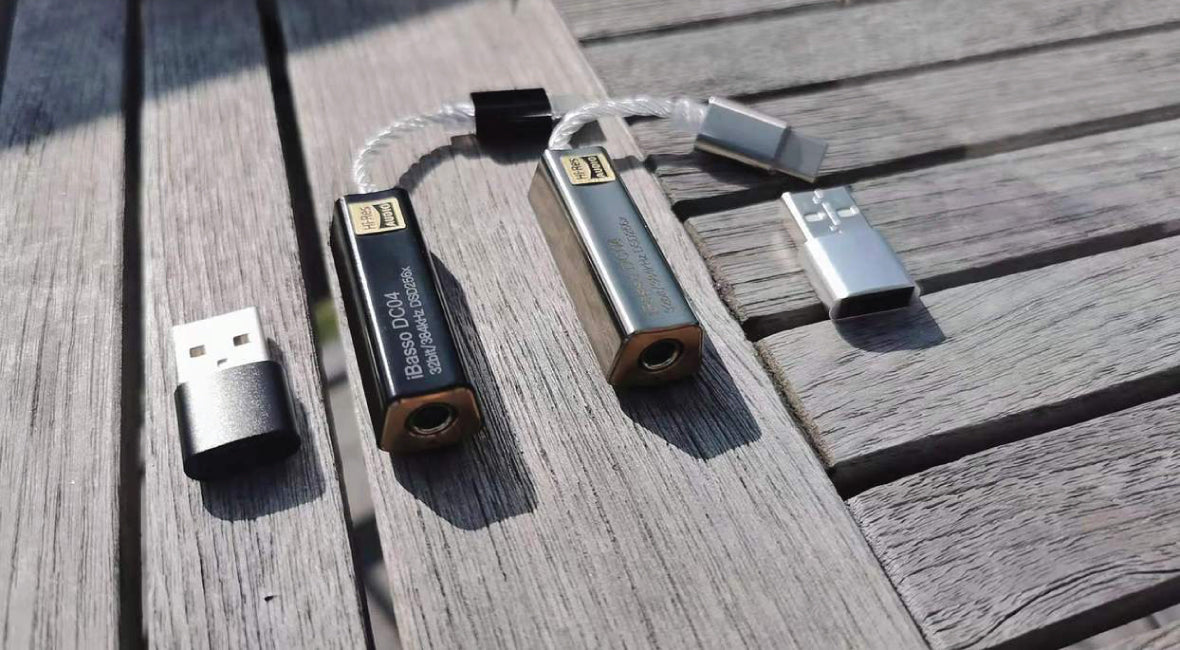

| BOX CONTENTS | 1. iBasso DC04 |
| 2. USB-C to USB-A adapter |
COMPARISONS
 iBasso - DC04 �� 6,999/- |

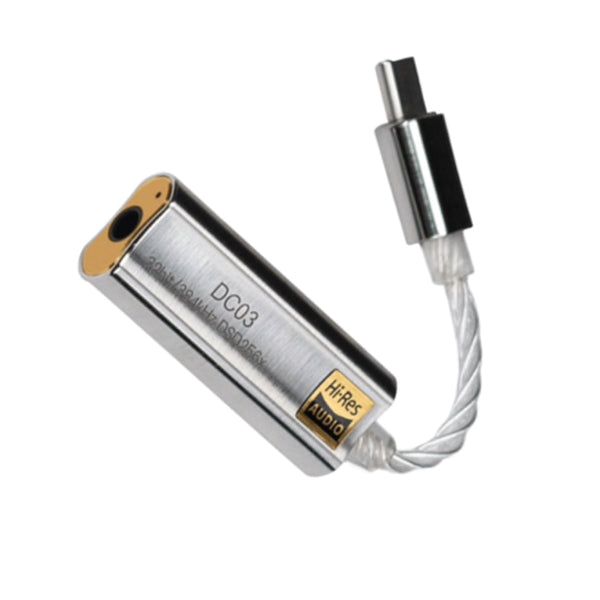

 iBasso - DC03 �� 4,999/- |
 SoundMAGIC - A30 �� 5,499/- �� 7,999/- |

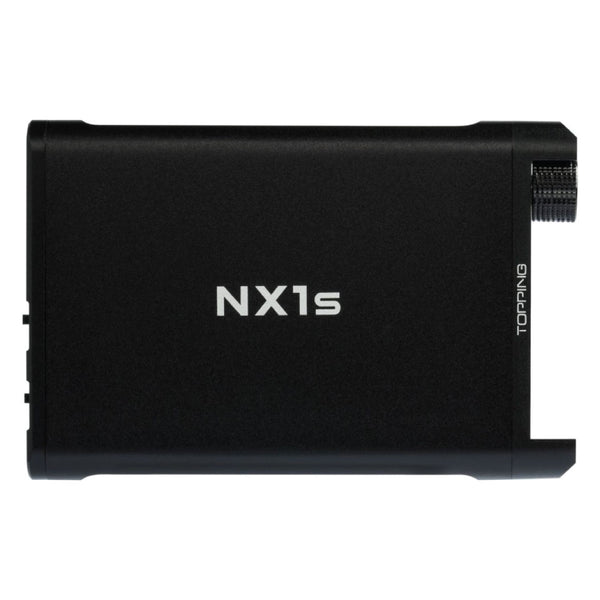

 TOPPING - NX1s �� 3,999/- |
|
| Warranty |  |
|
|
|
| Ideal For | Smartphone | Smartphone | Smartphone | Smartphone |
| Weight | 11g | 11g | 11.1g | 78g |
| DAC Chip | Dual Cirrus Logic CS43131 | Dual Cirrus Logic CS43131 | Cirrus Logic CS43131 |  |
| Sample Rate | 32Bit/384kHz | 32Bit/384kHz | 32Hz/384KHz |  |
| Inbuilt Battery |  |
 |
 |
 |
| Battery Life |  |
 |
 |
40 Hours |
| Balanced Outputs |  |
 |
 |
 |
| Outputs | 4.4mm | 3.5mm | 3.5mm | 3.5mm |
| Digital Inputs | USB Type-C | USB Type-C | USB Type-C | Mirco USB |
| Output level | 195mW@32惟 | 1.61Vrms(32惟 load) |  |
150mW@32ohm |
| Signal to Noise Ratio | 133dB | 127dB | 120dB | 117dB |
| MQA Support |  |
 |
 |
 |
| Volume Control |  |
 |
 |
 |
| Expert Verdict |  |
 |
 |
'It��s a nifty little device that allows for a wide range of headphones to be used even when paired with a portable source. It��s solidly built and its affordable price only makes it sweeter.' Soundphile Review |
FAQs
WARRANTY & MEDIA REVIEWS
1 Year Warranty
Don't sweat it, this iBasso DC04 comes with a 1 year warranty from iBasso that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about iBasso's warranty in India.
