HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX - MMCX

Smart mounting VTX, fits both 20x20 and 30x30 mounting patterns.

Checkout our VTX section and our full collection of HGLRC products!

Specifications

• Built-in Microphone
• Input voltage: DC 6-26V
• Output voltage:5V/2A
• PIT@94mA
• 25mW@169mA/14dBm
• 100mW@199mA/20dBm
• 200mW@216mA/23dBm
• 400mW@279mA/26dBm
• 800mW@387mA/29dBm
• Antenna interface: MMCX
• Output power: PIT/25/100/200/400/800mW
• Frequency: 5.8GHz 5 bands, 40 channels
• Installing Hole: 20X20/30X30mm.M3
• Size: 37mm x 37mm x 5mm
• Weight: 4.8g

Includes

• 1x HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX With MMCX to SMA Adapter

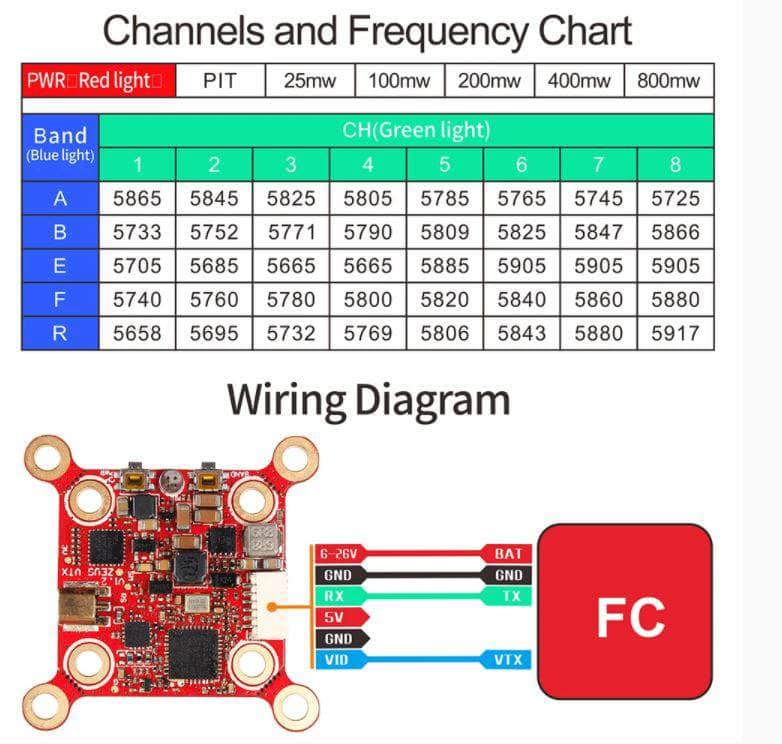

Wiring Diagram
