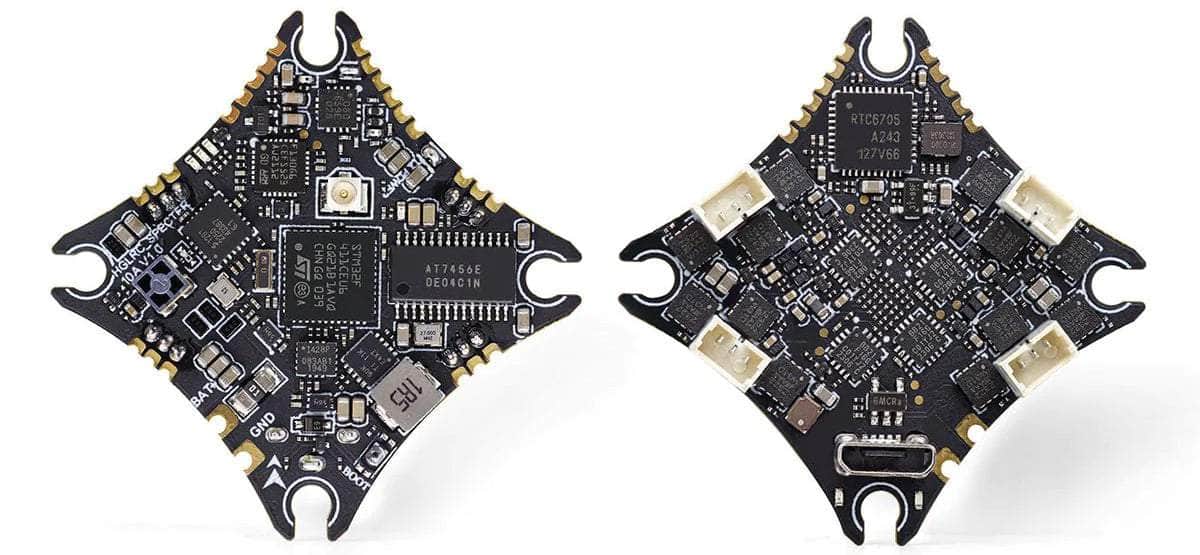

This ultra-light F411 10A 1-2S AIO integrated flight controller comes with ExpressLRS 2.4G receiver and 400mW 5.8GHz adjustable power video transmission. The SPI ELRS receiver uses ceramic antennas for superior short-distance performance compared to older D8/D16 protocols. The built-in receiver offers high sensitivity, refresh rate and low latency — perfect for FPV enthusiasts. Compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames.
Check out all of our HGLRC products and all our whoop flight controllers.
Features
- Built-in SPI ELRS receiver/or external CRSF protocol receiver
- Built-in integrated TBS 400mW 5.8GHz analog video transmission
- Independent 3P socket, which can be directly connected to the motor
- By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone
- Compatible with all 65mm-85mm hoop/toothpick frames
- Maximum support for an input voltage of 1-2S
Specifications
- Product name: SPECTER 10A 1-2S AIO
- MCU: STM32F411
- MPU: IXM42688
- BEC: 5V1.5A
- OSD: support
- LED: support
- Buzzer: support
- UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF
- protocol receiver/ VTX HD
- Built-in receiver: SPI ExpressLRS 2.4G
- Built-in receiver frequency: 2.4GHZ
- Built-in image transmission: 25-REC-100-400mW (adjustable)
- Built-in image transmission frequency: 48CH-5.8ghz
- Continuous current: 10A
- Peak current: 13A (10s)
- ESC protocol: Dshot600, Oneshot, Multishot
- Flight control firmware: HGLRCF411SX1280 V2
- ESC firmware: Z-H-30 (Bluejay)
- Input voltage: 1-2S 3.7V-7.4V (Lipo)
- Size: 32x32mm
- Mounting hole: 25.5X25.5mm.M2
- Weight: 4.9g
Includes
- 1x SPECTER 10A 1-2S AIO
- 1x XT30U-M 22AWG 70mm male power cord
- 1x PH2.0-2P 22AWG 35mm male power cord
- 1x MX1.25-3P 30AWG 75mm camera cable
- 4x M2x6.6 Shock-absorbing column

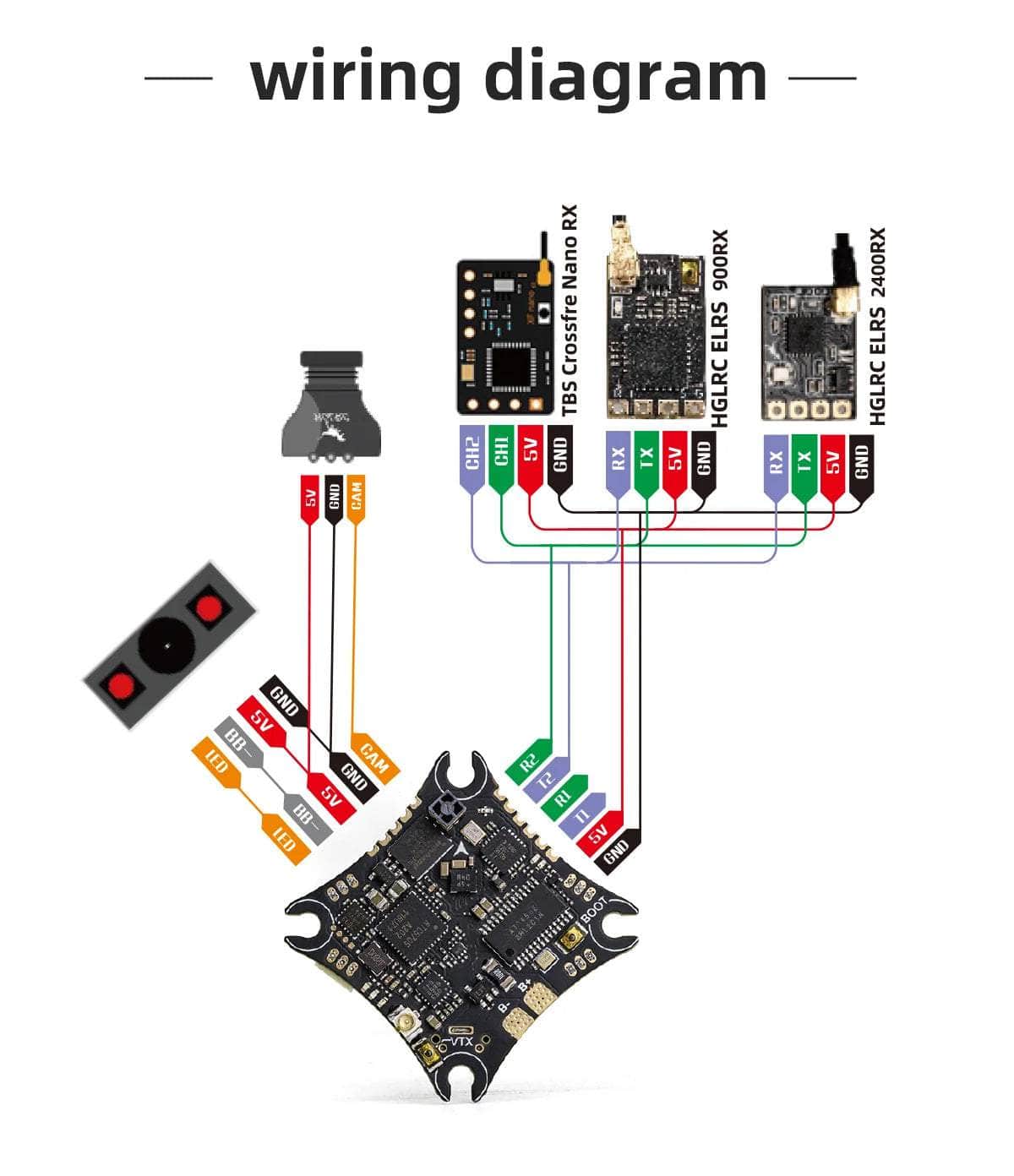

Wiring Diagram
