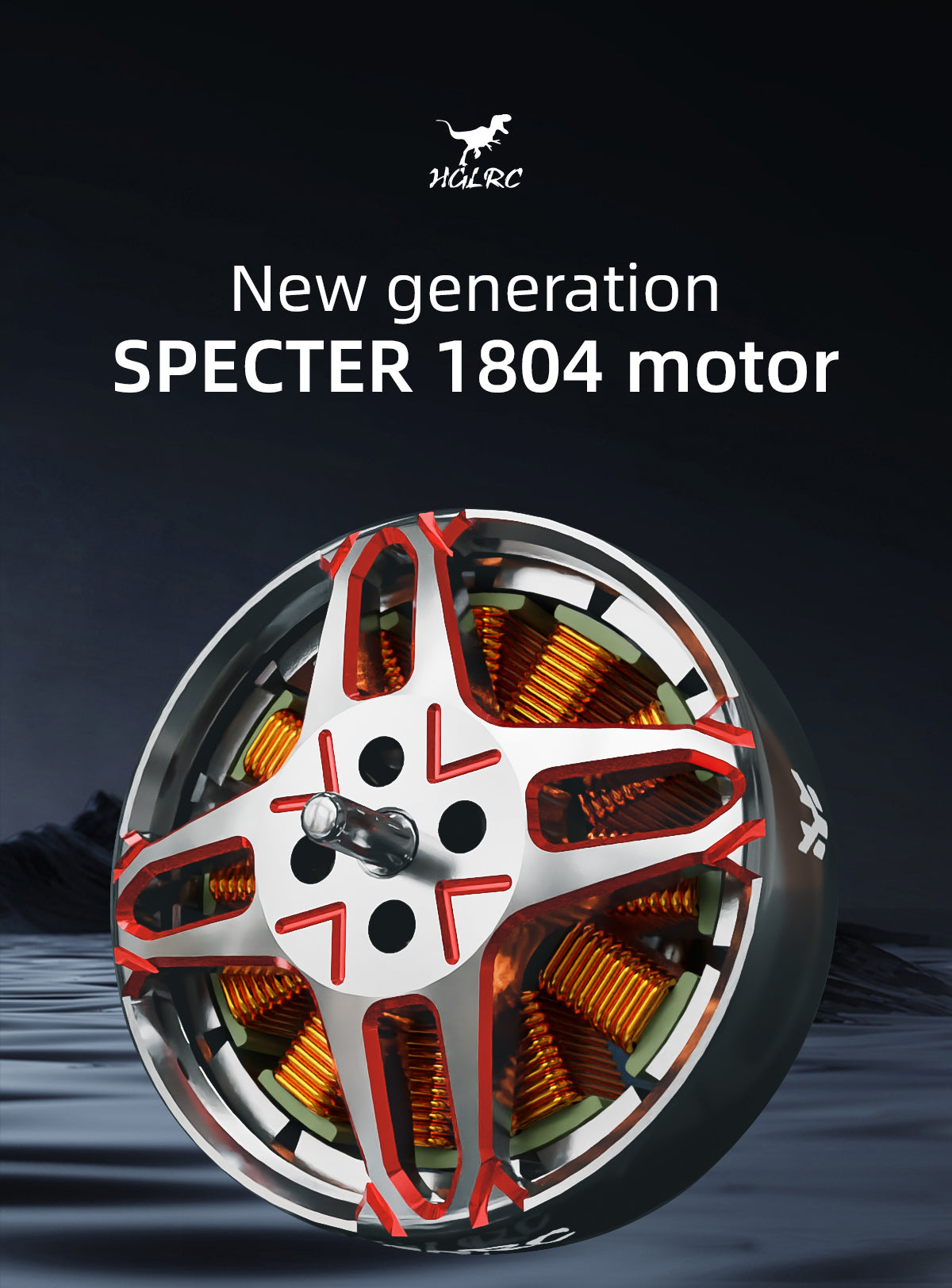

HGLRC SPECTER 1804 2450Kv Micro Motor

Check out our vast brushless motors selection, and all our HGLRC products!

Features

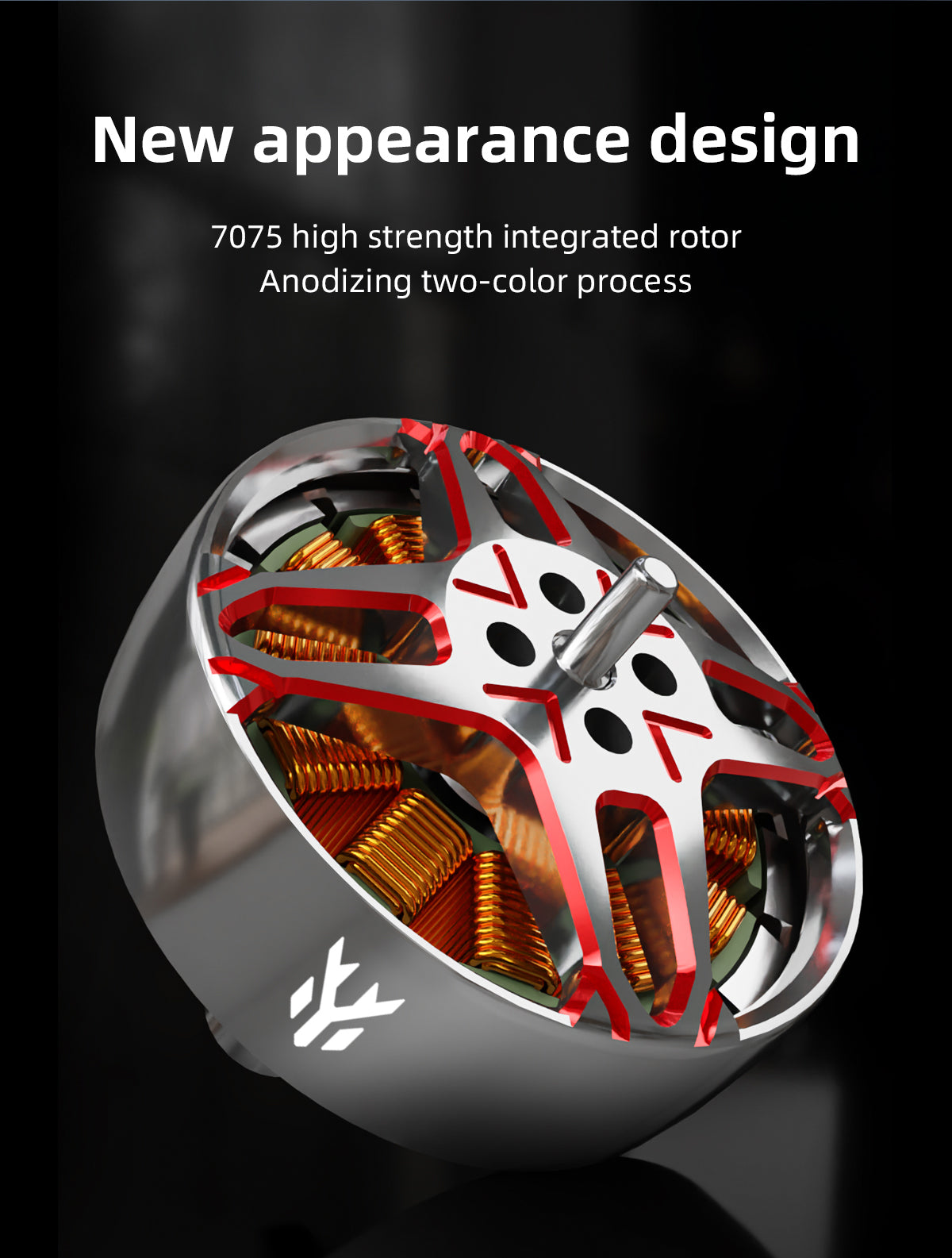

• Brand new rotor appearance design, anodized two-color process

• 7075 aviation aluminum material, high-strength one-piece rotor

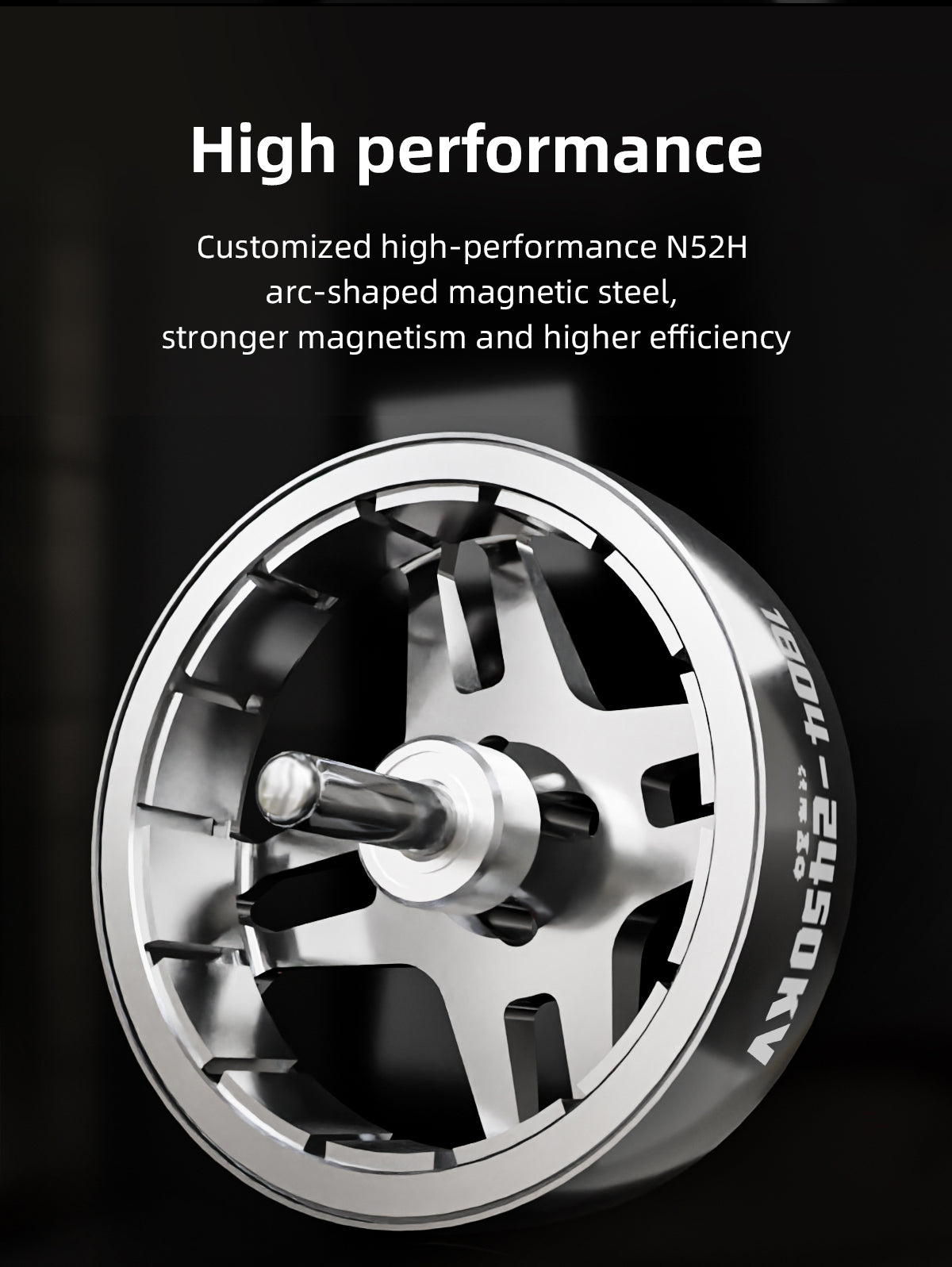

• Customized N52H curved magnetic steel, strong magnetism, large torque

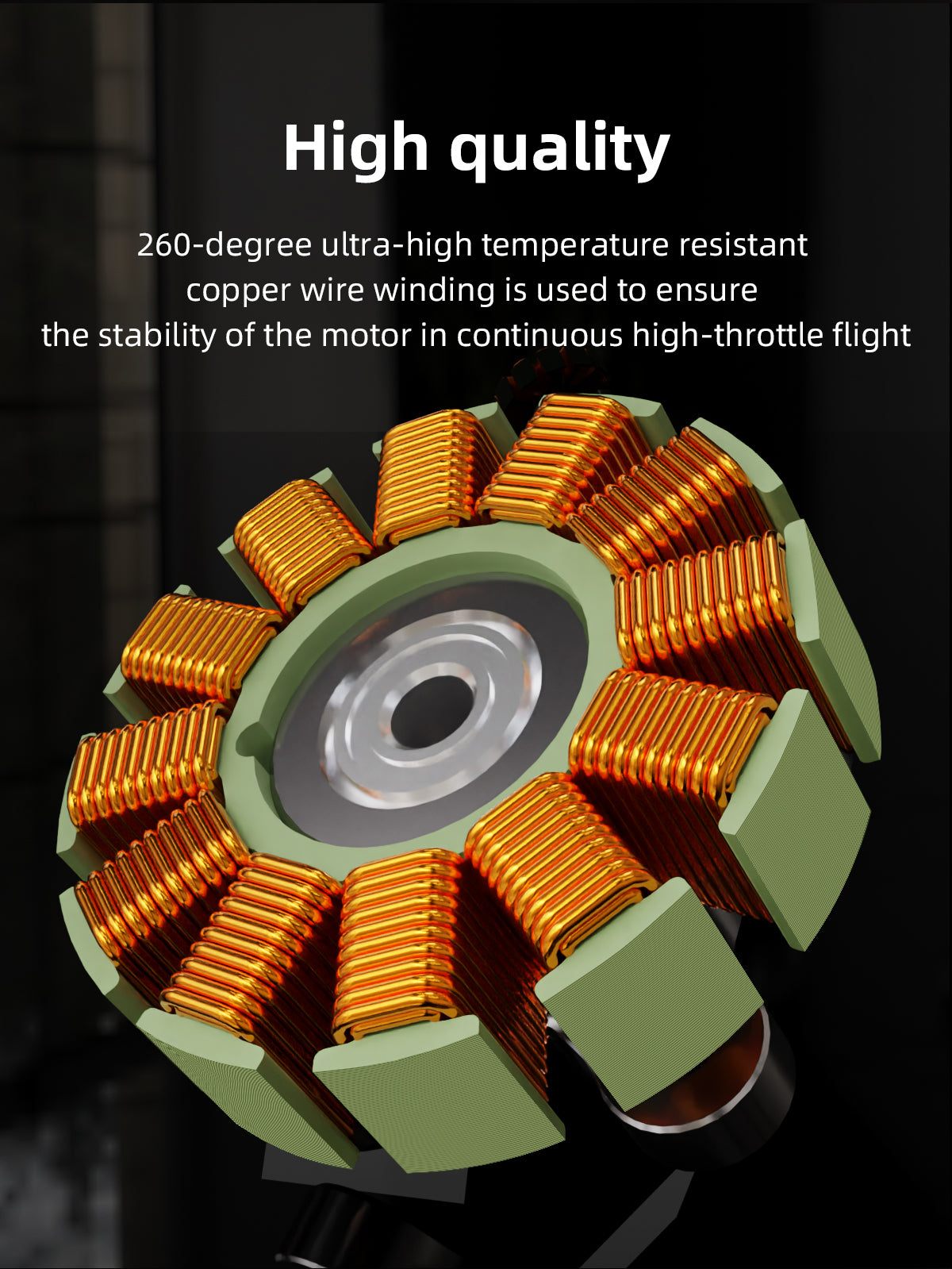

• Super high temperature resistant 260° copper wire winding, the motor runs more stably

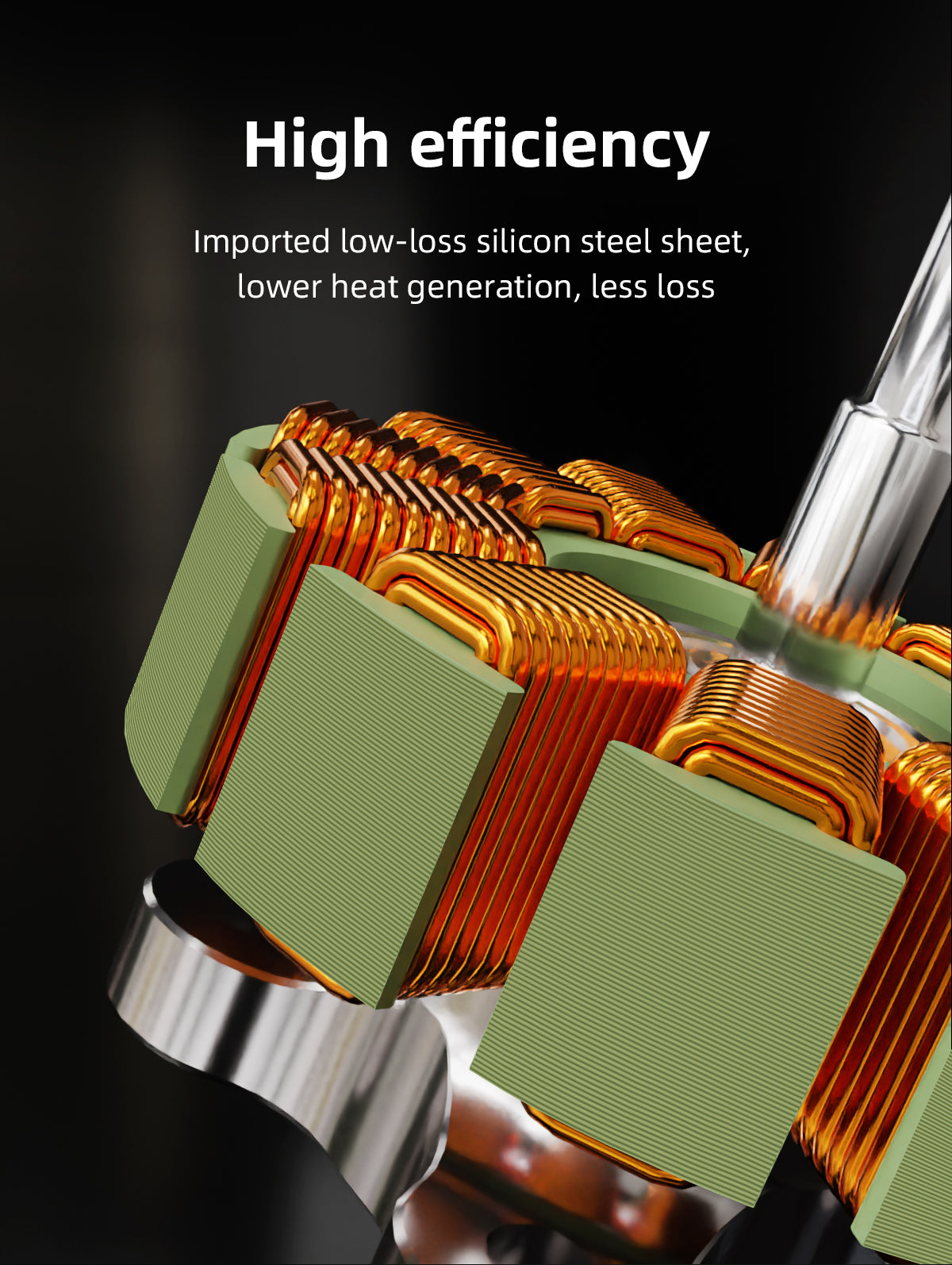

• Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency

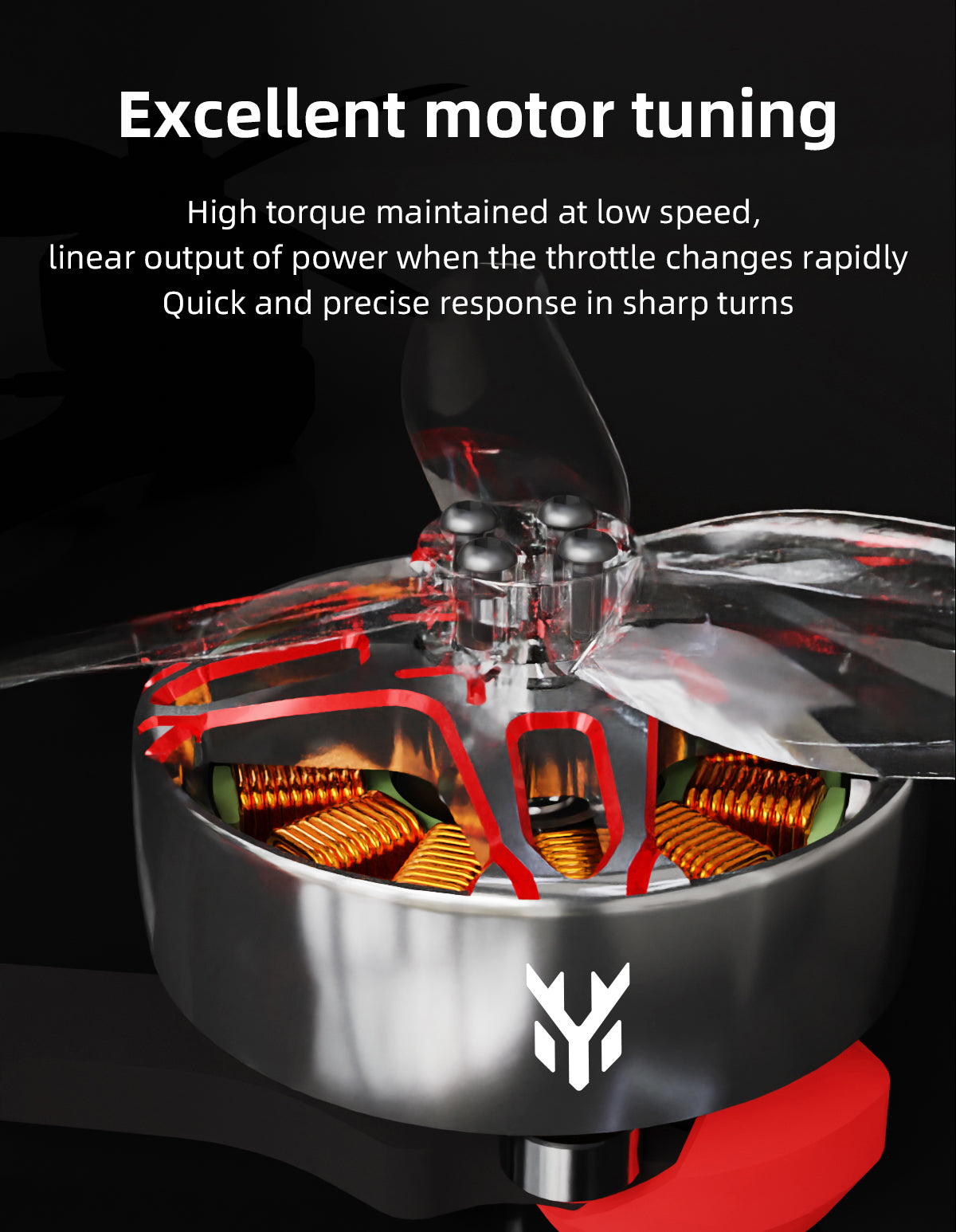

• New optimized adjustment and calibration, maintain high torque at low speed, linear
• power output when the throttle changes rapidly, precise and quick response when turning

• Titanium alloy shaft, high strength and reduce the weight of the drone

• Applicable to 3-3.5inch freestyle drones and 3-3.5inch racing drones

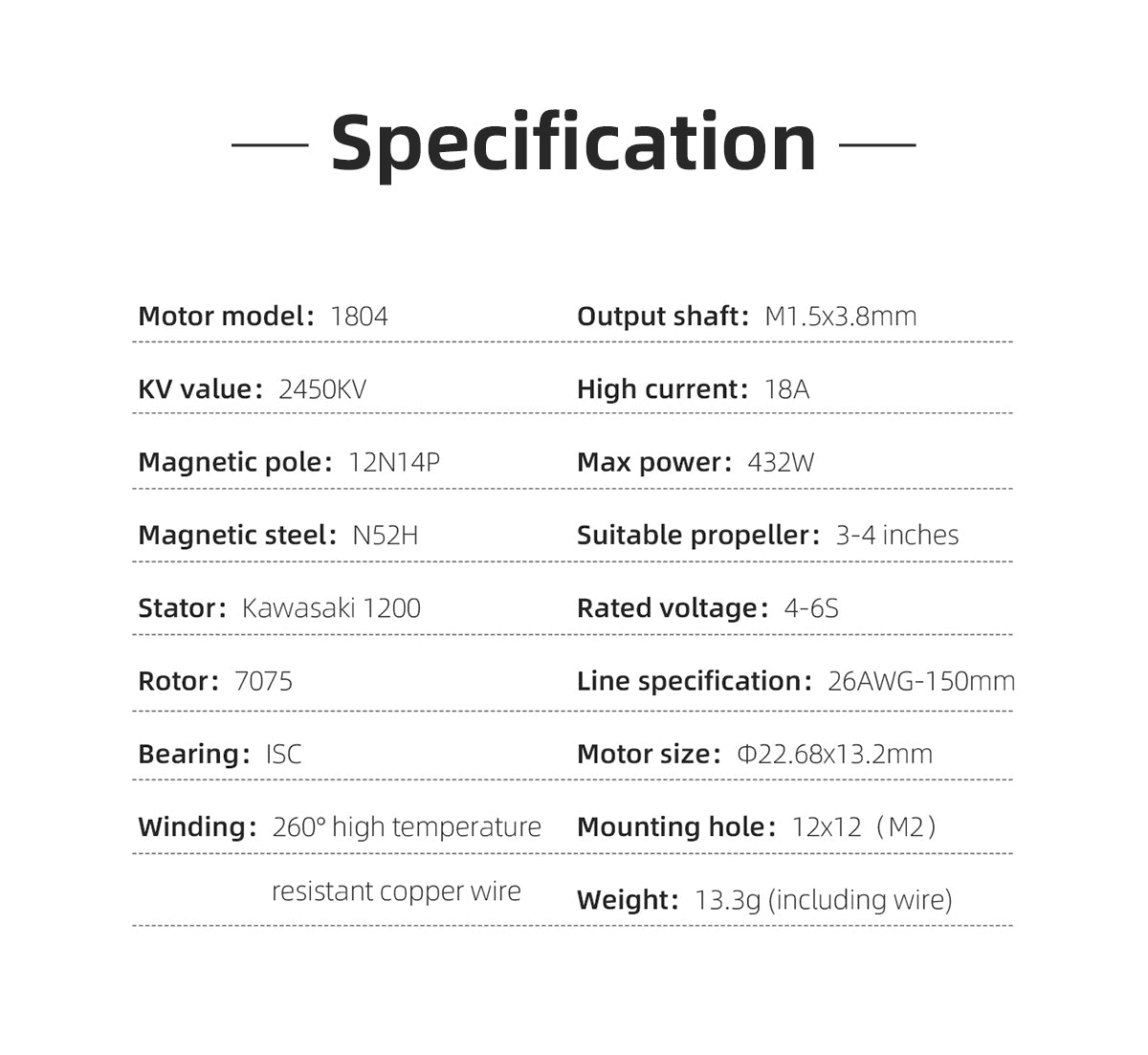

Specifications

• Motor model: 1804

• KV value: 2450KV

• Magnetic pole: 12N14P

• Magnetic steel: N52H

• Stator: Kawasaki 1200

• Rotor: 7075

• Bearing: ISC

• Winding: 260° high temperature resistant copper wire

• Output shaft: M1.5x3.8mm

• Max current: 18A

• Max power: 432W

• Suitable propeller: 3-3.5 inch

• voltage: 4-6S

• Outlet specification: 26AWG-150mm

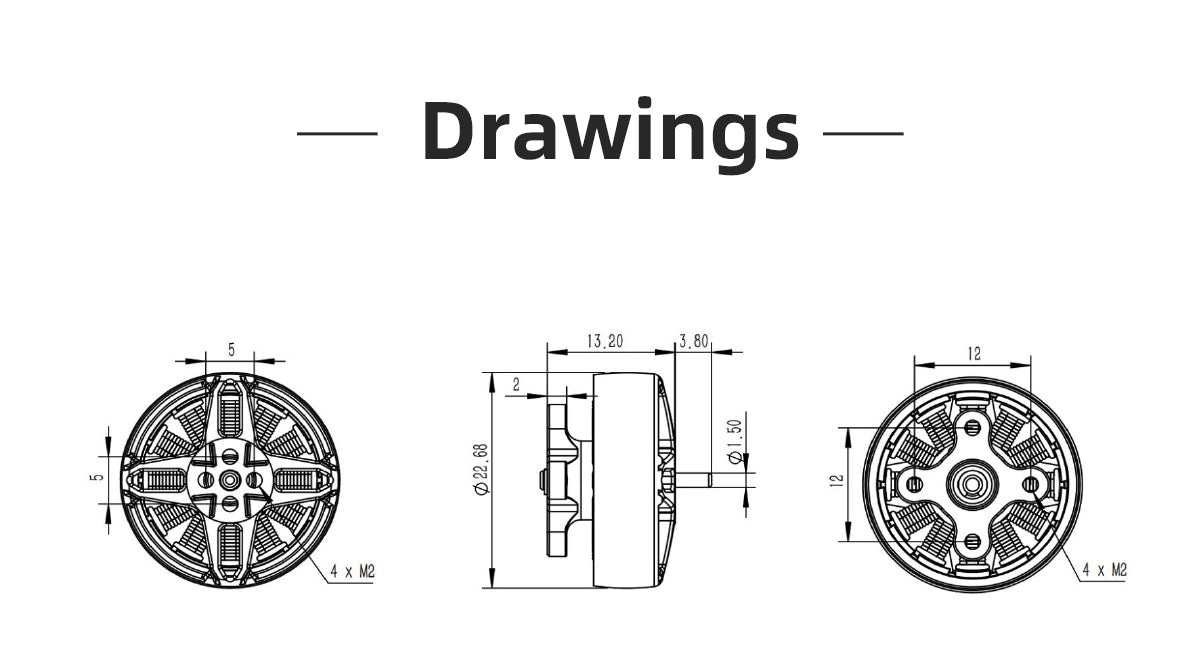

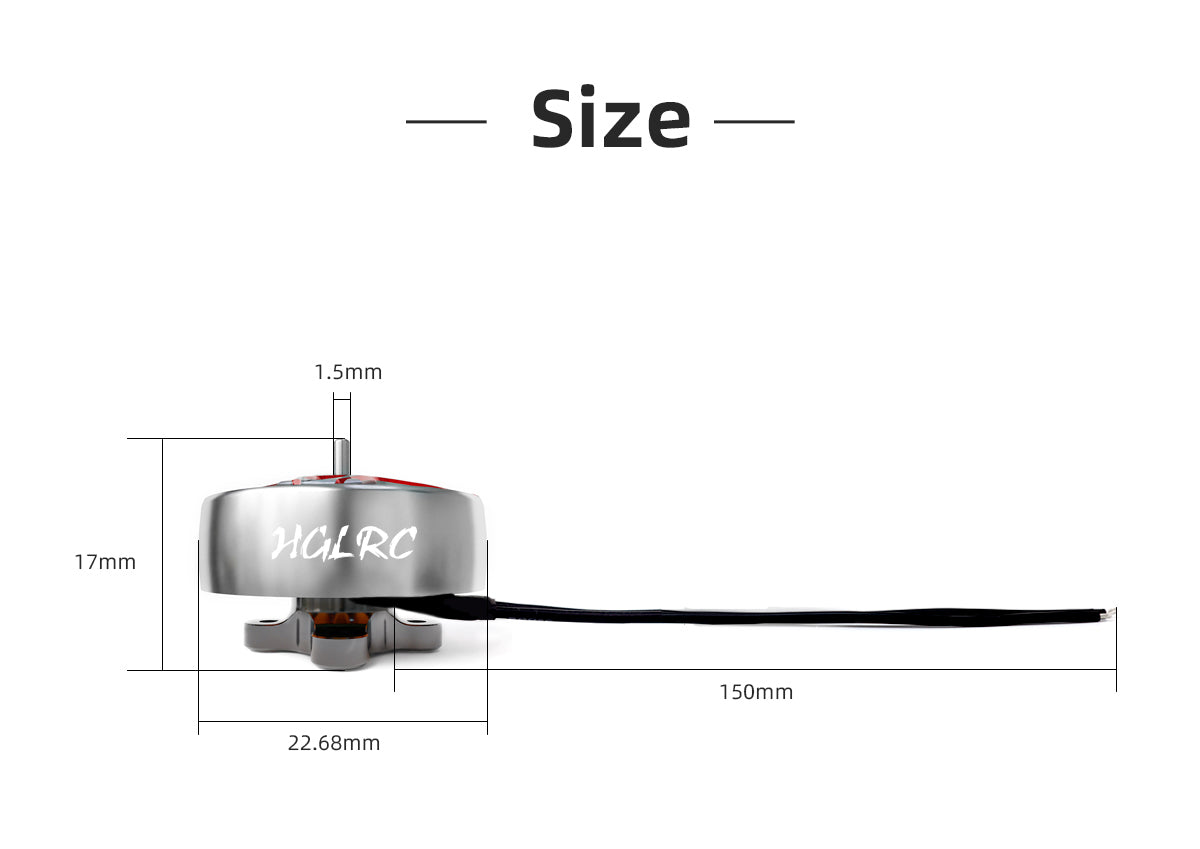

• Motor size: Φ22.68x13.2mm

• Mounting hole: 12x12（M2）

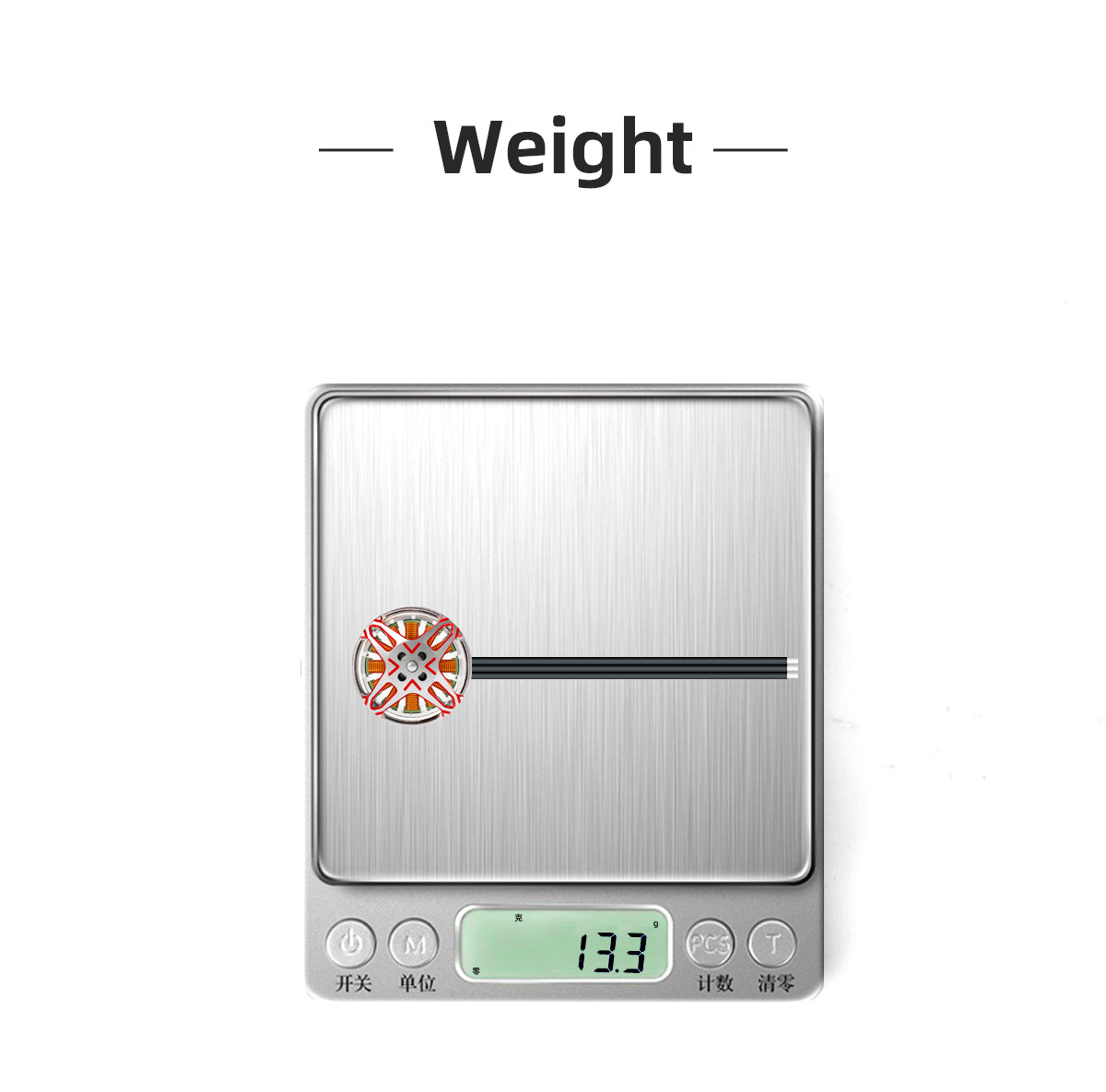

• Weight: 13.3g (including wire)

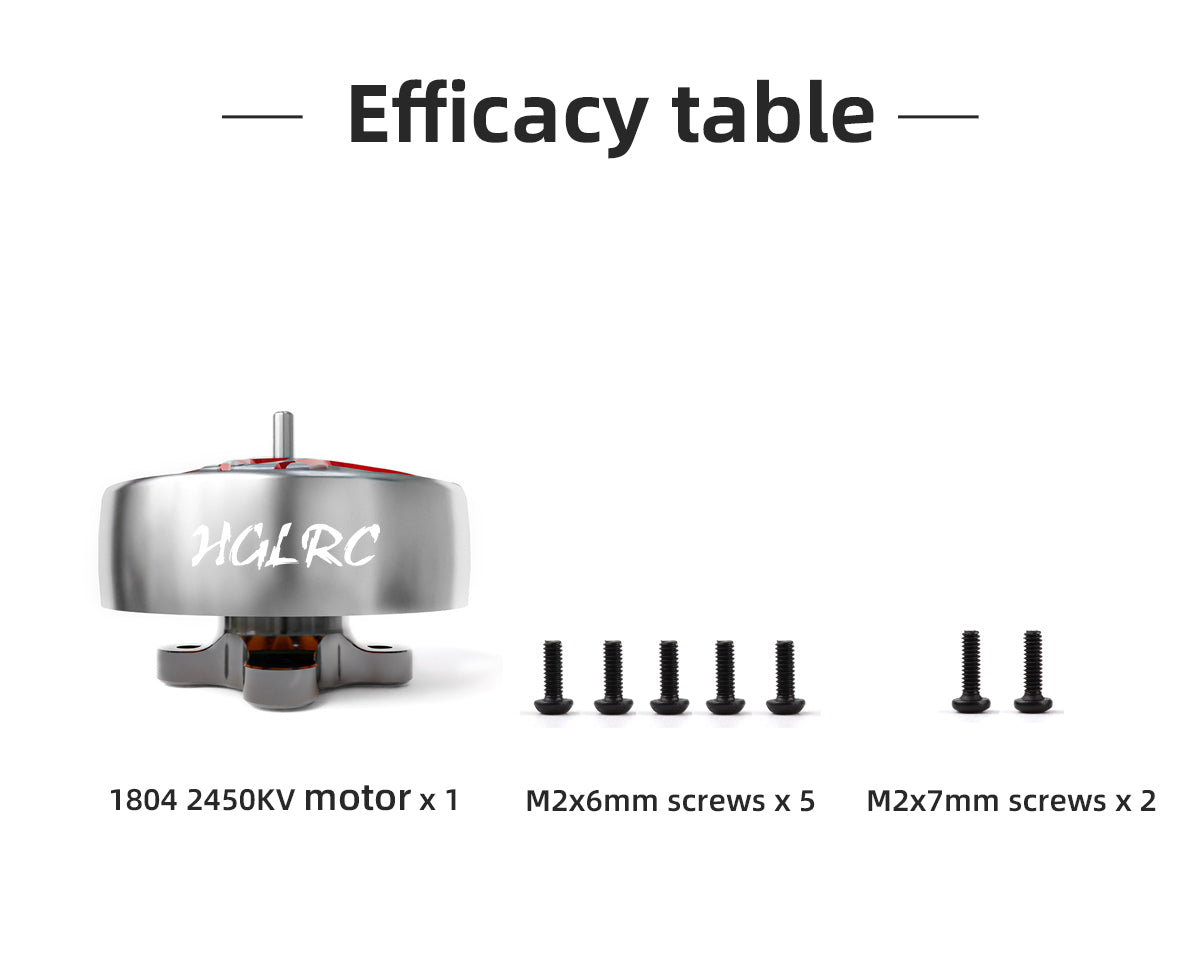

Includes

• 1x HGLRC SPECTER 1804 2450Kv Micro Motor
• 5x M2x6mm round head screw

• 2x M2x7mm round head screw
