HEQ UAV G-Port 3-Axis Camera Gimbal - DJI O4

Introducing the HEQ UAV G-Port 3-Axis Gimbal for DJI 04 Camera. The G-Port, engineered by HEQ, caters to FPV enthusiasts and fixed-wing drone hobbyists alike. Renowned for its impeccable stability, this gimbal supports both upright and inverted installations, ensuring flexibility in usage. Compatible with DJI O4 Air Unit, it features 3 input options: mavlink, sbus, and PWM. Its adaptability extends to diverse flight platforms, empowering users to effortlessly assemble their customized gimbal camera setup.

Check out all our replacement cam parts & lenses and everything DJI!

Features

• Enhanced FPV Experience
• Multiple Input Options
• Precision Engineering
• Versatile Installation
• Impeccable Stability
• Easy Assembly
• Compatible with DJI O4 Air Unit

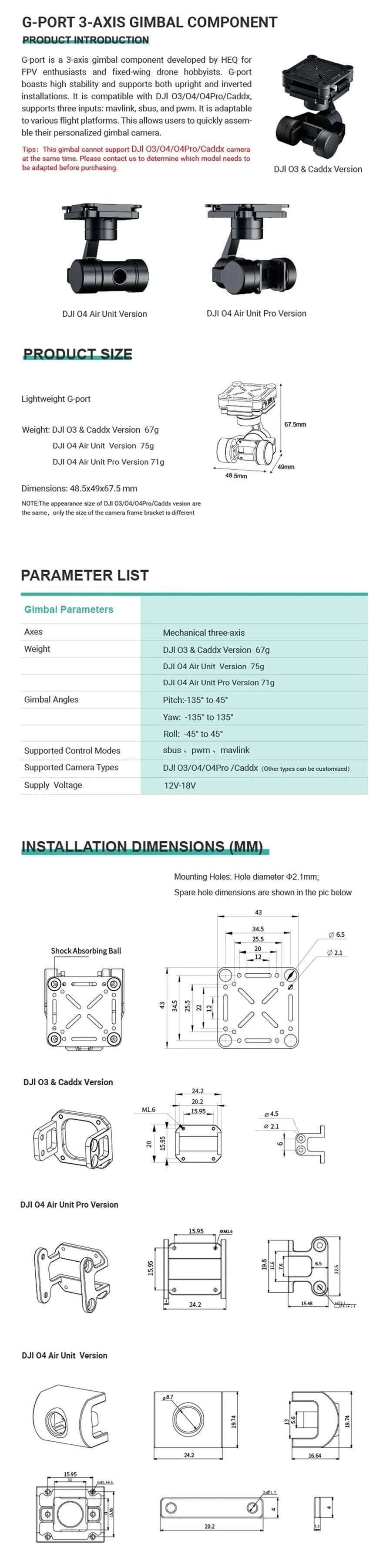

Specifications

• Supported Control Modes: sbus, PWM, mavlink
• Supported Camera Types: DJI 04
• Axes: Mechanical three-axis
• Supply Voltage: 12-18V
• Weight: 75g
• Gimbal Angles
• Yaw: -135° to 135°
• Pitch: -135° to 45°
• Roll: -45° to 45°

Important Notes:

• Do not exeed 18V input or risk burning the internal board.
• This gimbal cannot support DJI O3/O4/O4Pro Air Unit and Caddx camera at the same time.
• Please contact customer service to determine which model needs to be adapted before purchasing.
• Other types camera need to contact the HEQ official to confirm.
• Detailed tutorials can be viewed on the HEQUAV Youtube channel: G-port playlist
• Go to the download center of HEQUAV official website to download the latest Assistant software and firmware or manual.

Includes

• 1x G-Port Gimbal Component - DJI O4
• 1x Bracket Carbon Plate
• 4x Shock Absorbing Ball
• 6x Matching Screws
• 3x G-Port Cable
• 1x Manual
