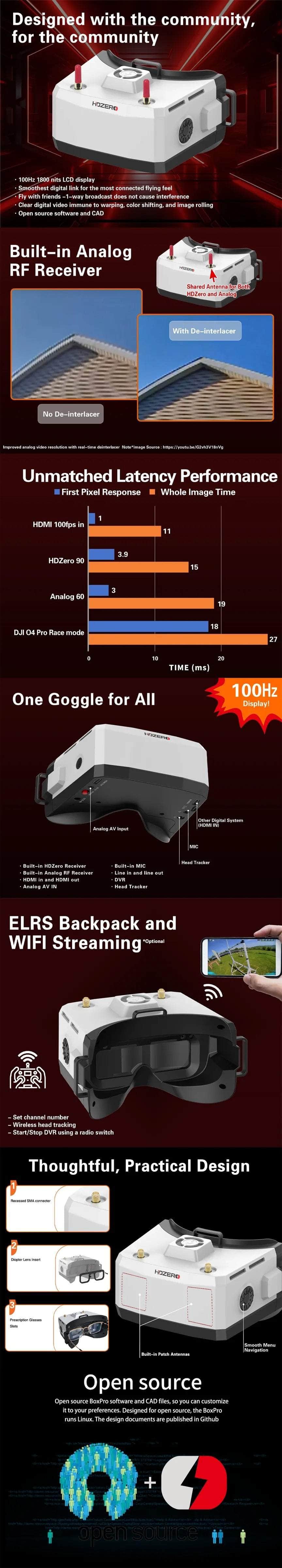

The HDZero BoxPro+ Goggles deliver high-performance FPV footage straight to your eyeballs! These versatile box-style goggles support digital, analog, and HDMI video with a 100Hz, 1800 nits LCD for bright, smooth viewing. With inputs and outputs matching HDZero's flagship OLED goggles, plus a built-in analog receiver and four antennas, they offer excellent reception out of the box. Ideal for analog tiny whoops and 90Hz HDZero racing, the BoxPro+ packs flagship features without the premium cost.
Check out all our FPV Goggles and our HDZero selection.
Features
- Built-in Analog RF Receiver
- Built-in HDZero Receiver
- HDMI In and HDMI Out
- Line In and Line Out
- Analog AV In
- Head Tracker
- Built-in MIC
- DVR
Specifications
COMFORT & OPTICS
- Diopter Lens Insert: Optional, custom-made, and screw-secured into the faceplate
- Eyeglasses Compatibility: Yes
VIDEO SUPPORT
- Digital Receiver: Integrated HDZero with 4 antennas, supports all HDZero modes
- Analog Receiver: Built-in high-sensitivity analog receiver
- HDMI: Mini HDMI input & output
- Head Tracker Output: 3.5mm
- AV Input: 3.5mm
POWER & COOLING
- Cooling: Adjustable fan speed for internal cooling and anti-fog prevention
- Battery Support: 2S-6S via XT60 connector (battery not included)
SOFTWARE & CUSTOMIZATION
- Development: Community-driven with ongoing improvements and support
- Customization: Full access to user interface code
- Platform: Linux-based open-source firmware
DVR & RECORDING
- Supported Recording Formats: HDZero, analog, and HDMI
- Recording Modes: Automatic and manual
- DVR: Built-in H.265 DVR
- Encoding: H.264/H.265
ELRS BACKPACK MODULE
- ELRS Backpack Module: ESP32 ExpressLRS
COMPATIBLE DEVICES via WiFi VIDEO Streaming
- iPhone: VLC or FPV Mate App
- Android: VLC
- PC/Mac: VLC
RESOLUTIONS
- Audio Sources: Built-in mic, line-in, AV-in
- 1280x720p60
- 1280x720p90
- 1280x720p100
- 1920x1080p60
DISPLAY & LATENCY
- HDZero Camera Latency: 4ms
- Analog Camera Latency: 3ms
- HDMI Input Latency: 1ms
- Field of View (FOV): 56°
- Brightness: 1800 nits
- Refresh Rate: 100Hz
IMPORTANT NOTES
- WiFi streaming and ELRS backpack features are exclusive to the BoxPro+ model.
Includes
- 1x HDZero BoxPro+ Goggles
