Happymodel Mobula7 Whoop HD w/ HDZero Lux - ELRS 2.4GHz - Freestyle

The Happymodel Mobula7 Freestyle BNF is whooping ready for freestyle! A 75mm ultra-light (24.5g) package, HDZero AIO5, and high-speed RS0802 KV25000 brushless motors all packed into this performance whoop ready to deliver enhanced freestyle flight.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• HDZero Lux Camera
• Freestyle-Optimized
• High-Speed Motors
• Compact Design
• HDZero AIO5
• Lightweight

Specifications

• Recommended Battery: 1S 450mAh / 550mAh / 650mAh
• Propeller Size: 40mm
• Weight: 24.5g

AIO FC

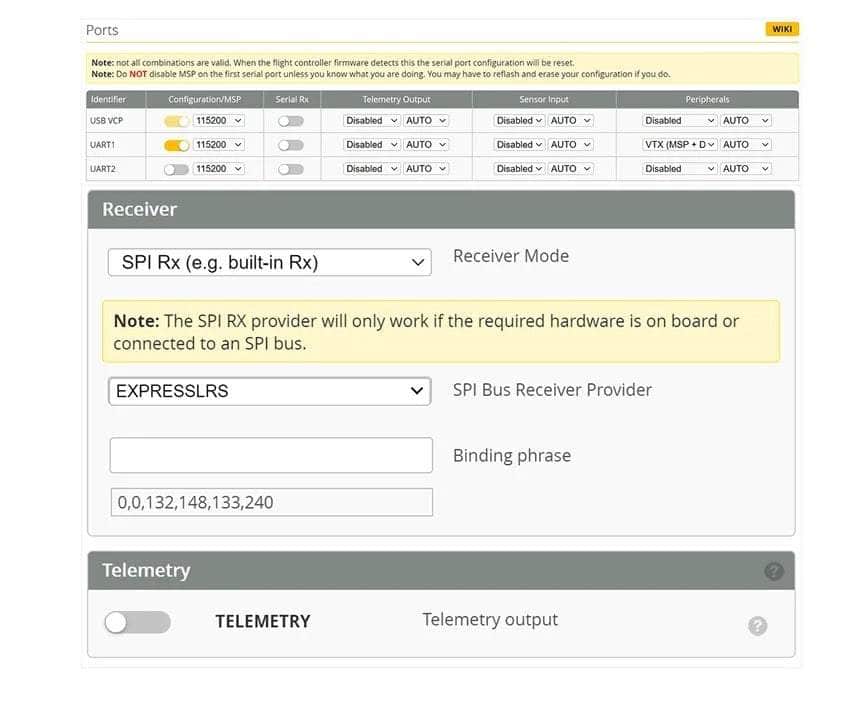

• Built-in SPI ExpressLRS 2.4GHz receiver (compatible with ExpressLRS v3.0)
• Board Size: 28.5 × 28.5mm with a 25.5 × 25.5mm mounting hole size
• Betaflight Firmware: CRAZYBEEF4SX1280 4.4.2 (pre-installed)
• MCU: STM32F411 (100MHz, 512K Flash)
• Onboard voltage and amperage meters
• Built-in 5A (each) BLHeli_S 4-in-1 ESC
• Bluejay ESC firmware pre-installed
• Built-in 5.8G HDZero VTX
• Built-in 5V 1A BEC
• Gyro: ICM42688P

HDZERO LUX CAMERA

• Resolution: 720p60 (4:3 and 16:9)
• Sensor Size: 1/2 inch
• Field of View (FOV):

  • 16:9: D: 145° / H: 126° / V: 70°
  • 4:3: D: 155° / H: 126° / V: 94°
  • WDR

MOTORS

• Shaft Diameter: Φ1.5mm
• Stator Diameter: 8mm
• Stator Length: 2mm
• Model: RS0802
• Weight: 2.0g
• Kv: 25000

Includes

• 1x Happymodel Mobula7 Whoop HD w/ HDZero Lux - ELRS 2.4GHz - Freestyle
• 1x Spare Propeller (Set)
• 1x Hardware Kit
