HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

53.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          HappyModel continues to impress with yet another fantastic AIO for whoop applications! Check out the HappyModel CrossF4 1-2S AIO Whoop Flight Controller (F4 FC / 5A 4in1 ESC) - Featuring  F411 Flight Controller, with a built in serial UART ELRS for V3.0.

          Browse the rest of our Whoop AIO Boards and all of our Happy Model products!

          Features

          • BMI270 IMU (SPI connection)
          • Serial UART ELRS V3.0 receiver
          • Built-in 5V 1A BEC

          Specifications: AIO FC

          • Firmware target: CRAZYBEEF4DX4.3.2
          • MCU:STM32F411CEU6 (100MHz, 512K FLASH)
          • Sensor: BMI270(SPI connection)
          • Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V)
          • Built-in 5A(each) Blheli_S 4in1 ESC Dshot300 ready
          • Built-in Betaflight OSD(SPI Control)
          • Built-in UART ExpressLRS 2.4Ghz receiver(Default firmware ExpressLRS v3.0.1)
          • Built-in 5V 1A BEC
          • Built-in voltage detection and current sensor
          • Built-in Onboard flash 16Mb for Blackbox
          Onboard 4in1 ESC
          • MCU: EFM8BB21
          • Power supply: 1-2S LiPo/LiPo HV (2.8v~8.7v)
          • Currents: 5A continuous peak 6A (5 seconds)
          • Support BLHeliSuite programmable
          • Default Factory firmware: S_H_50_REV16_8.HEX
          • Support ESC Protocol: DSHOT150/DSHOT300/DSHOT600

           Onboard UART ExpressLRS 2.4GHz Receiver

          • Packet Rate: 25Hz/50Hz/150Hz/250Hz/500Hz
          • RF Frequency: 2.4GHz
          • Antenna: enameled copper wire 31mm length
          • Telemetry output Power: <12dBm
          • Receiver protocol: CRSF
          • Default firmware version: ExpressLRS V3.0.1
          • The same hardware with Happymodel EP1
          • Could update firmware via ExpressLRS configurator

          Includes

          • 1x HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4gHz
          • 1x Mounting Hardware
          • 1x Wiring Harness

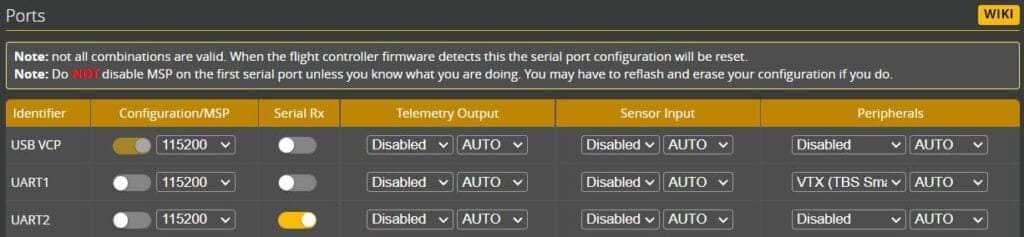

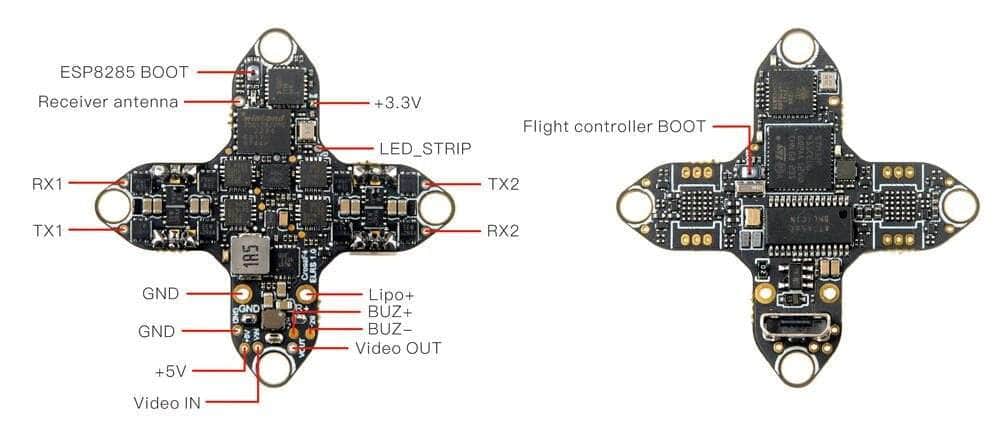

          Wiring Diagram & Betaflight Configuration

          NOTE: Onboard blackbox enable method:
          -Type the following command to CLI:
          -set blackbox_device = SPIFLASH
          -set flash_spi_bus = 2
          -resource FLASH_CS 1 a14

          Pay attention: Bind procedure is the same like Happymodel EP1/EP2 receiver, as you need to upgrade your ExpressLRS TX module to V3.X version first.

          Alternative-Binding-Method-for-UART-Based-ELRS-RX
