HappyModel BNF 2024 V1 Mobula6 ELRS 65mm Ultra Light Brushless Analog Whoop - ELRS 2.4GHz

The Happymodel Mobula6 2024 1S 65mm Ultra Light Micro FPV 1S Whoop comes equipped with a lightweight AIO flight controller and 2.4Ghz ELRS receiver. The drone is Ready to Rip!

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
• Super light 1S 65mm Brushless whoop only 17.7g
• Equipment with the lightest brushless motors-SE0702 only 1.46gram
• FX17-B 1/3 CMOS 800TVL Camera awesome footage
• Smooth and powerful
• Compatible for 1S Lipo/LIHV

Specifications

• Wheelbase: 65mm
• Size: 81mm x 81mm x 37mm
• Weight: 17.7g
• Option:
  -V1 version with SuperX ELRS V1.0 AIO
  -V2 version with SuperX ELRS V2.0 AIO
  The only difference is v2.0 AIO FC comes with motor plug but V1.0 AIO FC is no motor plug.

Motors

• Mode: SE0702 KV28000
• Configu-ration: 9N12P
• Stator Diamter: 7mm
• Stator Length: 2mm
• Shaft Diameter: Φ1mm
• Motor Dimension(Dia.xLen): Φ9.5mm x 14mm
• Weight(g): 1.46g
• No.of Cells(Lipo): 1S only

Propellers

• Materials: PC
• Inch: 31mm
• Pitch: 0.8 in
• Weight: 0.21g
• Mount hole diameter:  1mm

AIO

• SuperX ELRS AIO 5-IN-1 Flight controller
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4

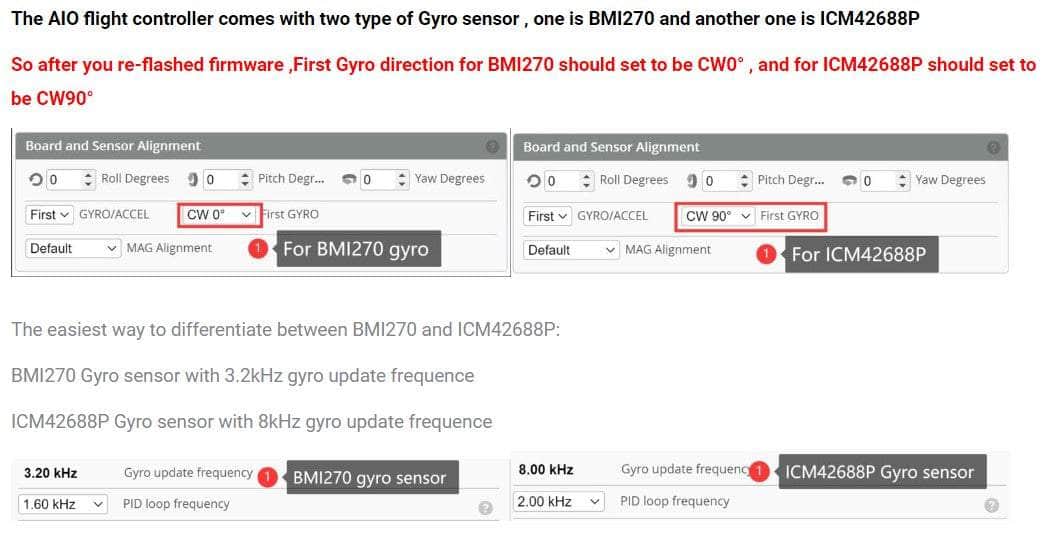

• Sensor:BMI270(SPI connection)

• Mount hole size: 25.5mm x 25.5mm

• Power supply: 1S battery input (DC 2.9V-4.35V)

• Built-in 5A(each) Blheli_S 4in1 ESC

• Built-in Betaflight OSD(SPI Control)

• Built-in 5.8G OpenVTX 0mw~400mw (MSP control)

• Built-in UART ExpressLRS v3.0.0

• Built-in voltage meter sensor , voltage meter scale 110

• Built-in current meter sensor , current meter scale 1175

• Power supply: 1S LiPo/LiPo HV

• Current: 5A continuous peak 6A (3 seconds)

• Support BLHeliSuite programmable

• Factory firmware: Bluejay v0.19.2

• Default protocol: DSHOT300

• Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz

• ExpressLRS Firmware version: V3.0

• RF Frequency: 2.4GHz

• Antenna : Enameled copper wire antenna

• Telemetry output Power: <12dBm

• Receiver protocol: Serial_based CRSF

• Compatible with ExpressLRS V3.x.x TX Module

• Could flash single ELRS receiver firmware by Wifi

• ExpressLRS firmware target: ExpressLRS firmware target:

• HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)

• Available from Expresslrs version 3.4.0 RC2

Onboard VTX

• Firmware version: OPENVTX

• MSP VTX

• PIT Mode support

• Channels:40ch

• Transmitting Power: 0/RCE/25mw/100mw/400mw

• Power supply: DC 5V

• Current (5v): <650ma (400mw)

• Antenna connector: U.FL

FX17-B Camera

• Model: FX17-B
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• FOV 150°
• Signal System: NTSC
• Net Weight: 1.5g
• Dimensions: L14mm x W14mm x H13mm

Includes

• 1x HappyModel BNF 2024 V1 Mobula6 ELRS 65mm Ultra Light Brushless Analog Whoop - ELRS 2.4GHz +Canopy
• 1x Option1: SuperX ELRS AIO 5-IN-1 Flight controller V1.0
• or 1x Option2: SuperX ELRS AIO 5-IN-1 Flight controller V2.0
• 4x SE0702 KV28000 brushless motor
• 1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
• 1x FX17-B 1/3 CMOS 800TVL camera NTSC 4:3
• 1x Onboard 5.8G 25mw~400mw VTX
• 1x Spare canopy
• 1x Propeller disassemble tool
• 1x Screw driver
