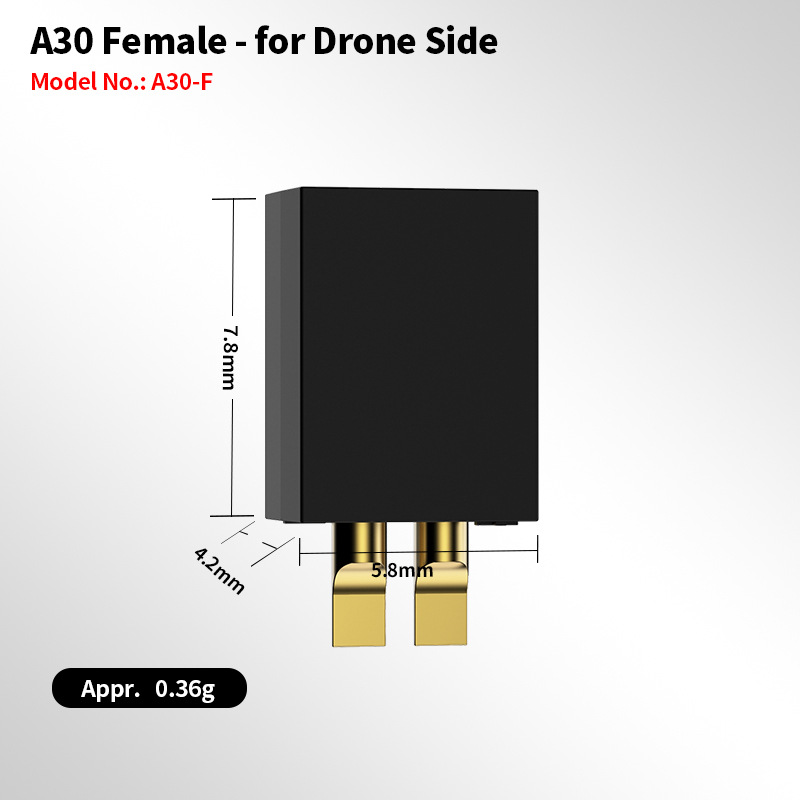

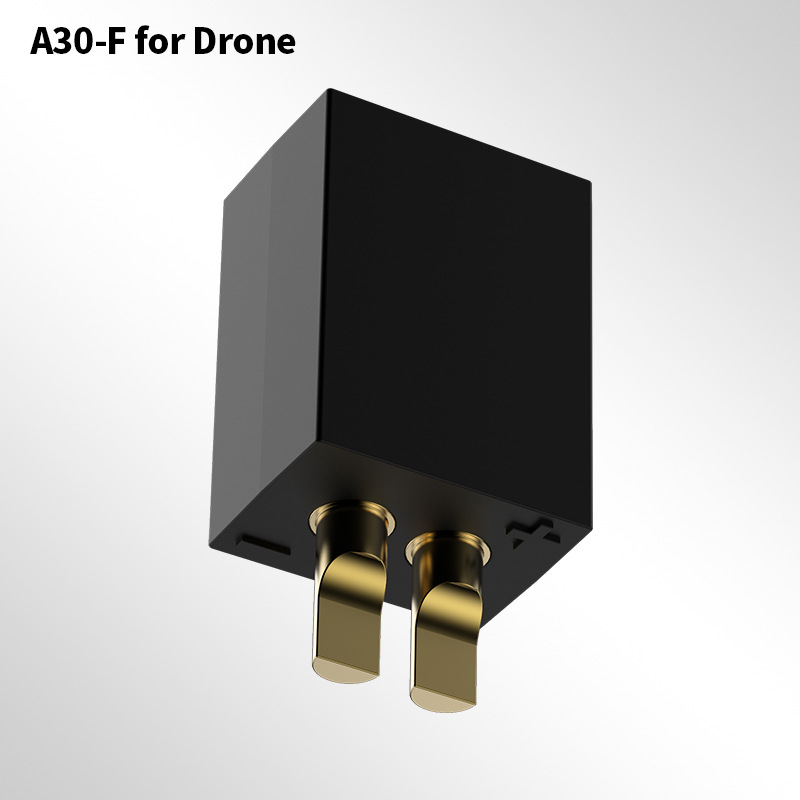

Gaoneng GNB A30 Connector Female 5 Pack

A30 Connectors provide a strong and reliable connection up to 15A of continuous current.

Check out all our pigtails and connectors and our selection of Gaoneng Products!

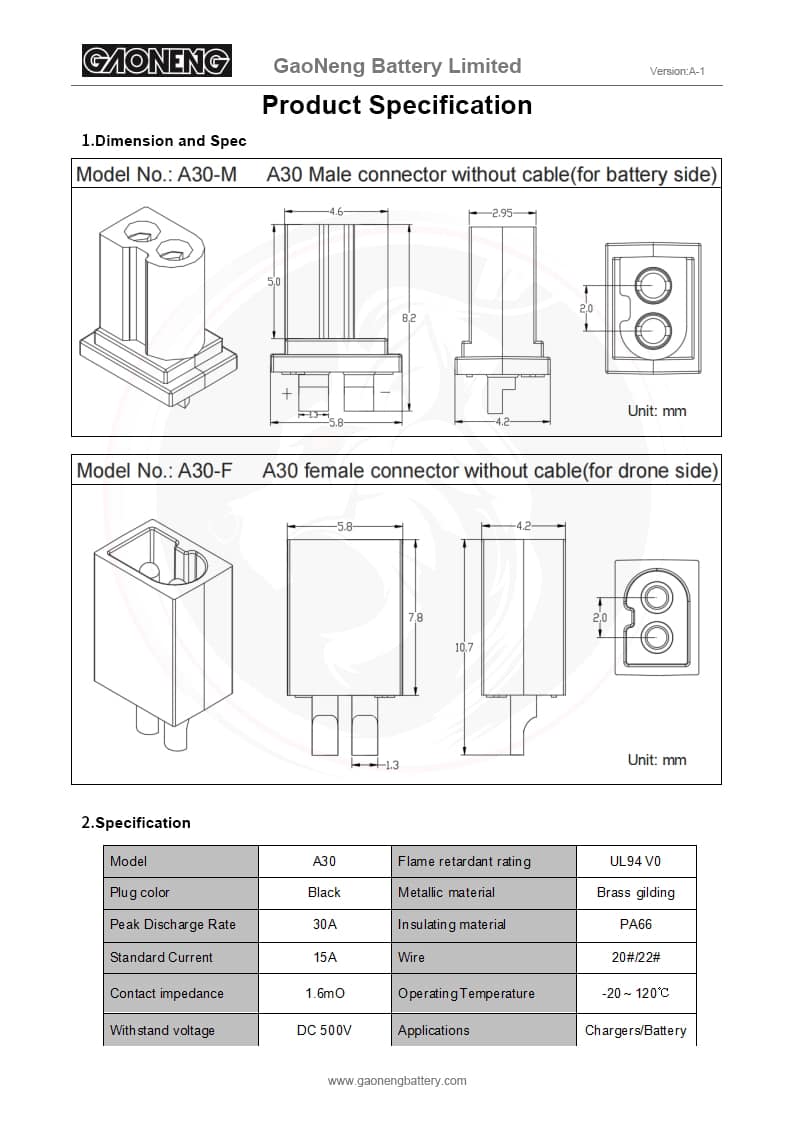

Specifications

• Model: A30
• Plug color: Black
• Peak Discharge Rate: 30A
• Standard Current: 15A
• Contact Impedance 1.6mO
• Withstand voltage: DC 500V
• Flame Retardant rating: UL94 VO
• Metallic Material: Brass gliding
• Insulating material: Brass gliding
• Wire: 20#/22#
• Operating temperature: -20 to 120 °C
• Applications: Chargers/Battery

Includes

• 1x Gaoneng GNB A30 Connector Female 5 Pack
