Frsky Archer Plus GR6 2.4GHz Receiver

The Archer Plus GR6 is ideal for glider pilots. It featuring full-range signal strength, dual antennas, and a compact design for tight spaces. It supports redundant setups via its SBUS In port and pairs effortlessly with telemetry devices using FBUS protocol. An upgraded high-precision variometer ensures accurate altitude and vertical speed data with enhanced audio feedback through FrSky ACCESS. ACCESS also enables OTA firmware updates, extended range, and improved telemetry.

Check out all our RC receivers, and all our FrSky products!

Features

• Over-The-Air (OTA) Firmware Updates
• 6 High-Precision PWM Channel Ports
• Basic Black-Box Functionality
• Upgraded Variometer Sensor
• External Voltage Detection
• Enhanced RF Performance
• Dual Mode Support
• Telemetry Support
• SBUS Ports

Specifications

• Voltage Measurement Range via AIN2 (External device): 0–35V (Battery Voltage Divider Ratio: 1:10)

• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

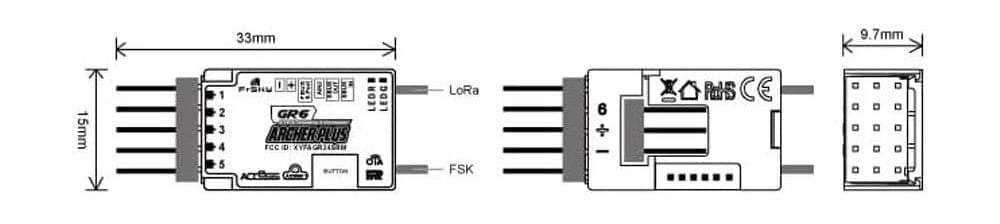

• Dimensions: 33 × 15 × 9.7mm (L × W × H)

• Antenna Connector: IPEX4

• Weight: 4.3g

• Operating Range: >2km (Full range) (*Range may vary based on local conditions.)

  • Operating Voltage Range: 3.5–10V

  • Operating Current: <65mA @ 5V

• Number of Channels: 6/24 channels

  • ACCESS Mode: 6 high-precision PWM & 24 SBUS channels

  • D16 Mode: 6 high-precision PWM & 16 SBUS channels

• Variometer Measurement Range:

  • Altimeter Range & Resolution: -700m to 10,000m & 0.1m

  • Vertical Speed Range: ±10m/s

Includes

• 1x Frsky Archer Plus GR6 2.4GHz Receiver
