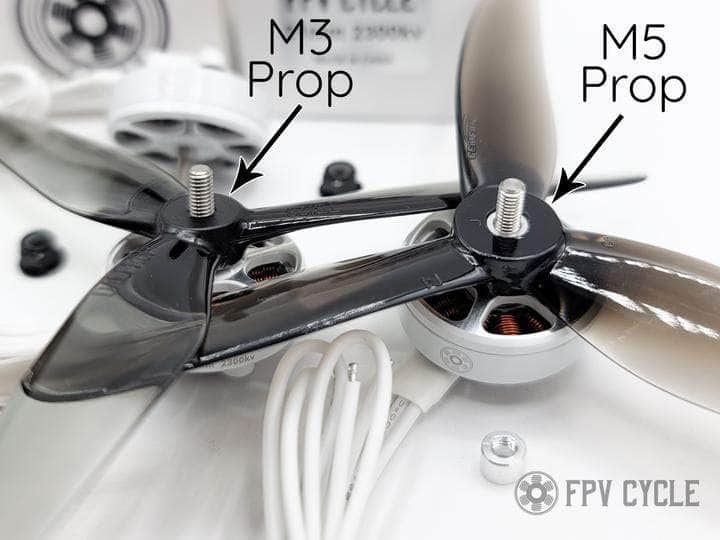

FPV Cycle 23mm Short 3450Kv Motor - M3 Prop Shaft w/ M5 Adapter

This motor is the first of its kind in that it’s a full 5” performance size motor with a 12x12 M2 mount platform and M3 Prop shaft. (M5 adapter included) Pair this motor with the Gemfan F3 or F4 prop and a sub 500g AUW 5” frame for a truly stellar level of control performance.

This motor is specifically designed for the following uses:

• 3” Ducted whoop
• 4” Anything
• 5” Light blade and low general AUW for 5”

Tall version w/ M5 shaft also available!

Check out our other motors, and all our FPVCycle selection!

Specifications

• Kv: 3450Kv
• Input Voltage: 3-5S LiPo
• Configuration: 12N14P
• Motor Dimensions: Φ26mm x 26mm
• Stator Dimensions: Φ23mm
• Shaft Diameter: 3mm w/ 5mm Adapter
• Mounting Pattern: Φ12mm M2
• Wire Dimensions: 22AWG x 250mm
• Weight: 29g

Includes

• 1x FPVCycle 23mm Short 3450Kv Motor - M3 Mount w/ M5 Adapter
