Foxeer Reaper F4 128K 32Bit 65A 3-8S 30x30 4in1 ESC

The Foxeer Reaper F4 128K is the next evolution of the Reaper ESC series. With its low heat generation and high-quality mosfets, this new version has a smoother flight, with fewer desyncs.

Check out the rest of our 30x30 ESCs, as well as the rest of our Foxeer offerings!

Specifications

• Input Voltage: 3-8S LiPo
• Max. Continuous Current: 65A
• Max Burst Current: 100A
• Telemetry: Yes
• Firmware: BLHeli_32
• Target: FOXEER_Reaper4IN1_F4_65A_128_Multi_32_9
• Input Signal: DShot 150/300/600/1200/MultiShot/OneShot
• BEC: No
• Mounting Pattern: 30x30mm M3
• Dimensions: 42.5x42.5mm
• Weight: 14.8g

Includes

• 1x Foxeer Reaper F4 128K 32Bit 65A 3-8S 30x30 4in1 ESC

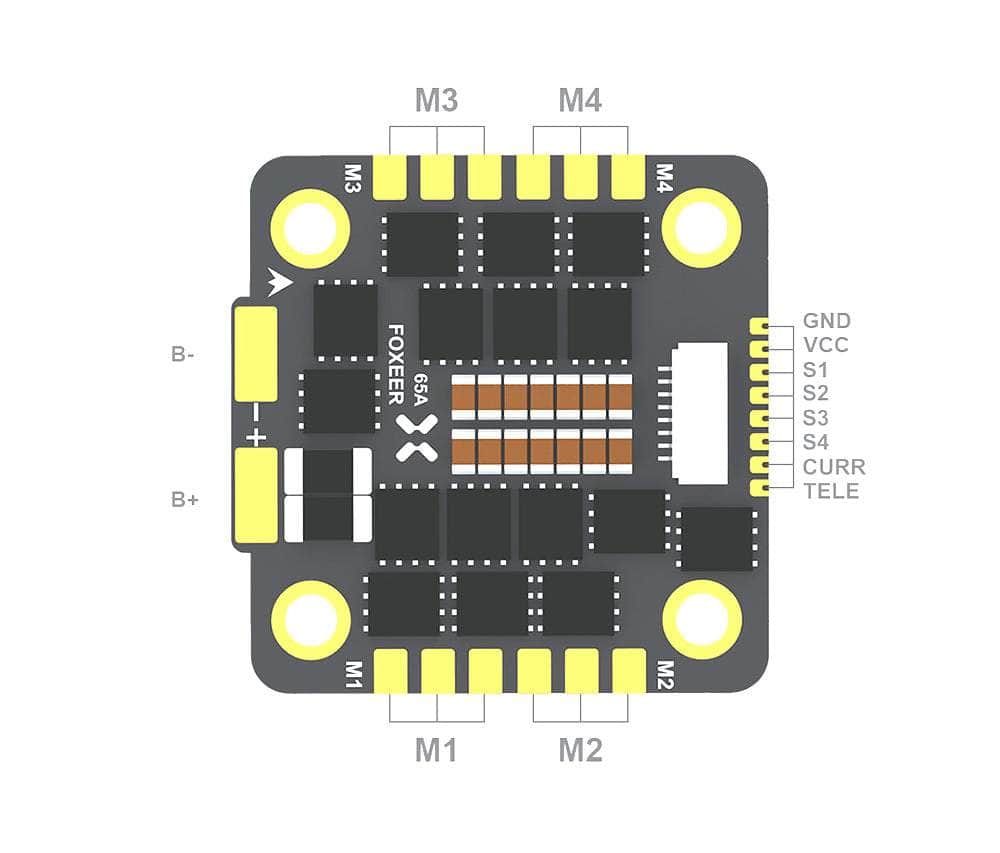

Wiring Diagram
