Foxeer Razer Mini 1200TVL CMOS 16:9 PAL/NTSC FPV Camera (2.1mm) - Black

The Foxeer Razer is an incredible value! The image quality and performance are on par with much more expensive cameras. This is the new benchmark for a budget camera. Check out the test footage below, and in the 'Test Videos' tab above!

We also carry the Razer Mini in 4:3, Razer Micro in 4:3 and Razer Micro in 16:9!

Check out all our Mini FPV Cameras, and all our Foxeer products!

Features

• 1200TVL High Definition Natual Image
• Low Latency
• Good Low Light Performance
• NTSC/PAL Switchable
• Wide Input Voltage Range
• Supports OSD & Menu Remote Control

Specifications

• Sensor Type: CMOS 1/3
• Scale: 16:9
• TV System: PAL/ NTSC Switchable
• Resolution: 1200TVL
• FOV: 4:3 FOV-H 125° FOV-D 15W, 16:9 FOV-H 125° FOV-D 145°
• Shutter Speed(CCD IRIS): PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec
• Video Out: CVBS
• Min. Illumination: 0.01Lux
• Flight OSD: -
• White Balance: Auto
• DNR: 3DNR
• WDR: 90db
• Day / Night Shift: EXT/ Auto/ Color/ B&W
• Power Requirement: DC 4.5V-25V
• Working Temperature: -10°C--,50°C RH 90%
• MAX Working Humidity: 20-80%
• Storage Temperature: -20°C-+70°C
• Storage Humidity: 20-95%

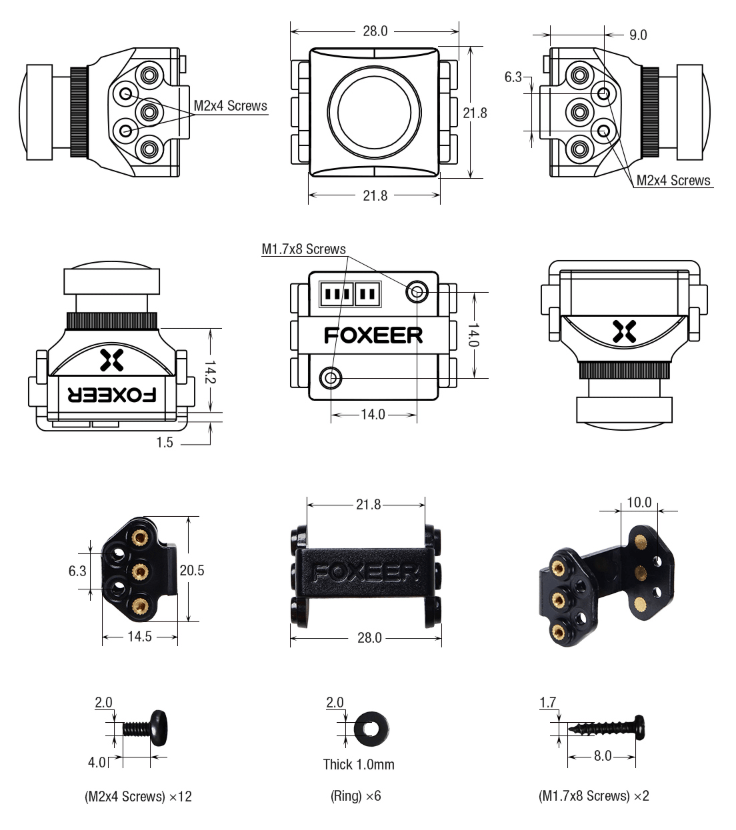

• Dimensions: 21.8x21.8mm (W*L)(w/o bracket)
• Weight: 12g

Includes

• 1x Razer Mini Cam
• 1x Servo Cable
• 1x 2pin OSD Cable
• 1x OSD Board
• 1x Manual
• 1x Screw Set
