Foxeer F722 V4 Mini 20x20 Flight Controller

Foxeer's V4 F7 FC has a clean layout with high quality components. No more worrying about lifting pads during crashes, this FC has through holes for every solder point.

Check out our 20x20 Flight Controllers and all our Foxeer products!

Specifications

• Input Voltage: 2-6S
• CPU: STM32F722RET6
• Gyro: ICM-42688-P
• BEC Output: DC5V/3A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UARTs: 4
• ESC Telemetry: RX4
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Micro USB
• Fireware: FOXEERF722V4
• Dimensions: 26x26mm
• Mounting Pattern: 20x20mm Φ4mm
• Weight: 4g

Includes

• 1x Foxeer F722 V4 Mini 20x20 Flight Controller
• 4x Vibration Gummies

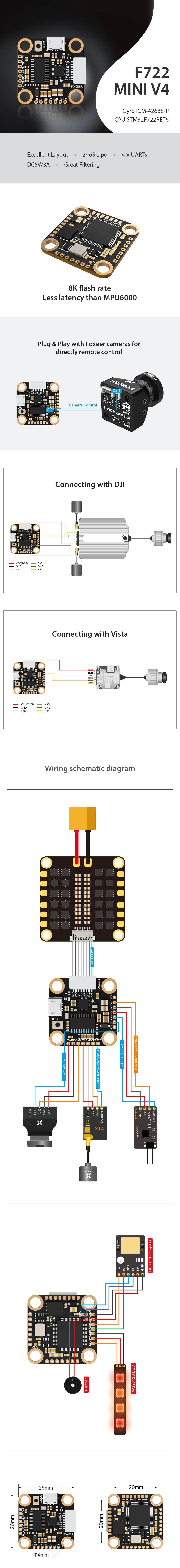

Wiring Diagram
