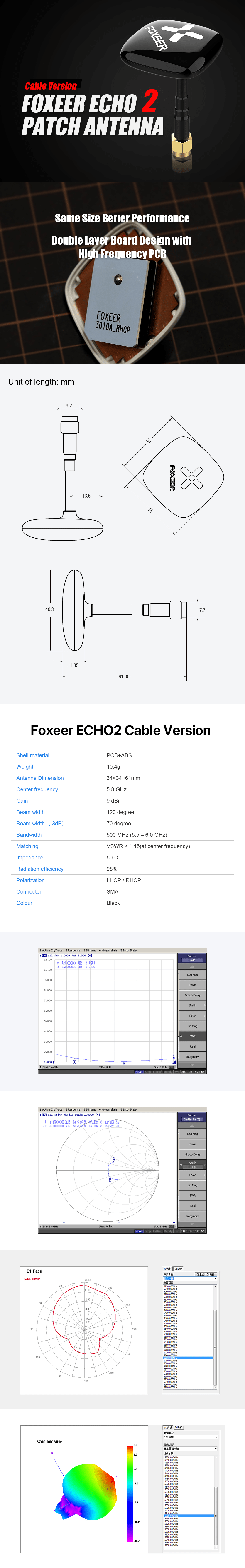

Foxeer Echo 2 5.8Ghz SMA Patch Antenna RHCP - Black

The Foxeer Echo 2 Patch Antenna is designed for maximum power and performance. Constructed of premium materials, it offers impressive signal strength and 9.4dBi gain in a light, durable form factor. Get maximum range with optimal use of your 5.8G signal. This antenna come with right hand polarization and has a SMA connector.

Check out all our VTX antennas, and our ever growing selection of Foxeer products.

Features

• Same size as the old ones, though much better performance
• Double Layer Board Design

Specifications

• Shell Material: PCB+ABS
• Weight: 10.4g
• Antenna Dimension: 34x34x61mm
• Center frequency: 5.8GHz
• Gain: 9bBi
• Beam width: 120 degree
• Beam width (-3dB): 70 degree
• Bandwidth: 500 MHz (5.5-6.0 GHz)
• Matching: VSWR < 1.15  (at center frequency)
• Impedance: 50Ω
• Radiation efficiency: 98%
• Polarization: RHCP
• Connector: SMA
• Color: Black

Includes

• Foxeer Echo 2 5.8Ghz SMA Patch Feeder Antenna RHCP - Black
