Flywoo GOKU HM850 20x20/25x25/30x30 25-850mW 5.8GHz VTX - U.FL

GOKU HM850 850mw VTX is a lightweight, small size, and high-quality 25-850mW VTX. It offers a selectable 25/50/100/200/850mW output power for extreme range FPV flight. With 3 different mounting options, this VTX is perfect for all of your builds.

Check out all our VTXs and our entire Flywoo selection!

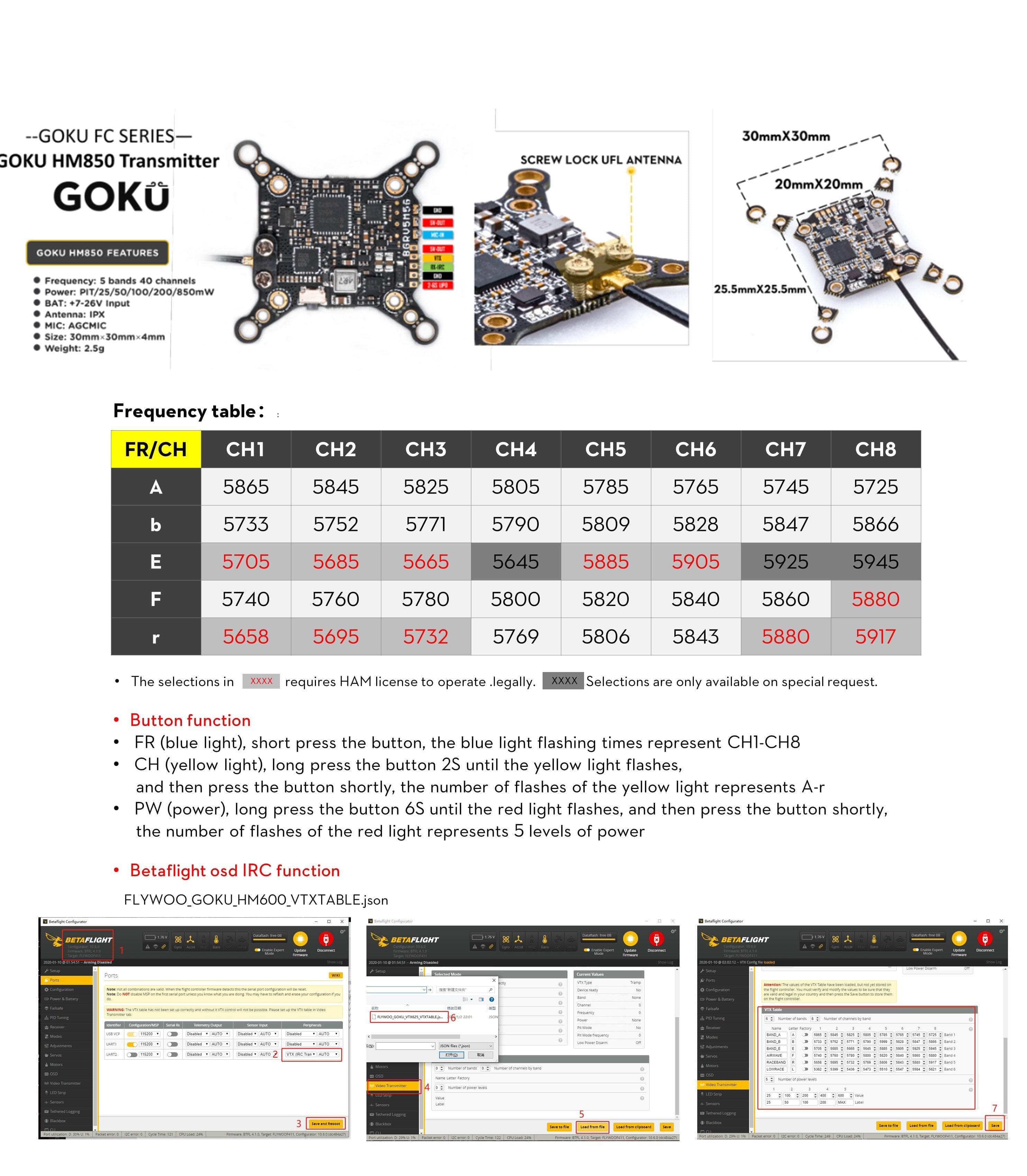

Specifications

• Frequency: 5.8GHz
• Raceband: 5362-5945 MHZ
• Power: PIT/25/50/100/200/850mW switchable
• Control Mode: IRC(RX)/Button
• BAT: 7-28V Input
• Video System: NTSC/PAL
• Antenna Connector: U.FL
• Size: 30.5mm×3.5mm×3mm
• Weight: 3g
• Mounting: 20x20mm / 25x25mm / 30x30mm

Includes

• 1x Flywoo GOKU HM850 /20x20/25x25/30x30 25-850mW 5.8GHz VTX - U.FL

Betaflight VTX Table Download

Setup Instructions
