Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16

41.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

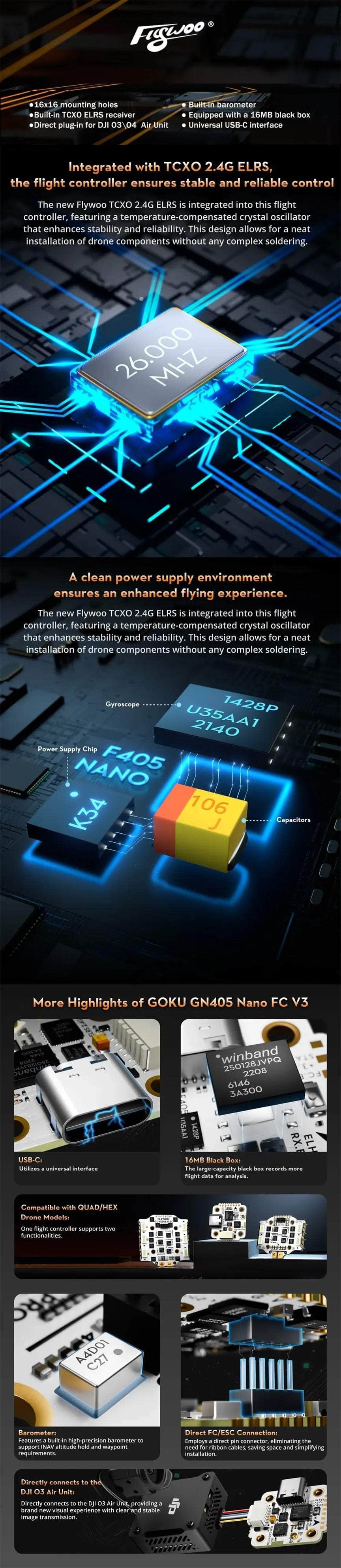

          The Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller has arrived with upgrades. Designed for versatility, it is compatible with various HD VTX systems. The built-in TCXO ELRS receiver is ideal for micro drones. It is compatible with QUAD and HEX setups, making it a powerful choice for FPV enthusiasts.

          Make sure to check out our other Flight Controllers and the rest of our Flywoo selection.

          Features

          • TCXO ELRS High-Precision Receiver
          • Optimized for Micro Drones
          • QUAD & HEX Compatibility
          • DJI O3 Interface Support
          • Upgraded Design
          • Six UART Ports
          • USB-C Port
          Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16

          Specifications

          • Input Voltage: 7.4V - 24V / 2-6S LiPo
          • Hole Position: M2 16x16mm
          • Size: 25mm x 23mm x 8mm
          • IMU (Gyro): ICM-42688P
          • Gyro: ICM-42688P (SPI)
          • MCU: STM32F405 BGA
          • BEC: 5V 2A / 3.3V 0.5A
          • USB Port Type: Type-C
          • UARTs: 1, 2, 3, 4, 5, 6
          • Barometer: DP310
          • Black Box: 16MB
          • Weight: 3g
          • OSD: No

          Includes

          • 1x Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16
          • 1x DJI O3 Connection Cable
          • 1x Shock-Absorbing Ball
          • 1x T-Antenna
