Unleash the power of your drone with Flywoo's GOKU GN405 Nano 35A STACK! This tiny, but powerful flight controller is packed with features, such as a barometer, 16MB blackbox, 6 serial ports, I2C functionality and WS2812 LEDs. All these amazing features on 16x16mm platform with this Flywoo stack!
Check out all our 16x16 stacks, and our Flywoo gear selection!
Features
- F405 BGA MCU
- Barometer
- 5V 2A BEC
- Black Box 16MB
- 6 UARTS
- WS2812LED
Specifications
GOKU GN405 Nano 16x16 FC
- MCU: STM32F405 BGA
- IMU: ICM42688
- Barometer: DPS310
- input voltage: 2-6S
- Onboard LED: WS2812x4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 22x22mm
- Mounting Holes: Standard 16/16mm square to center of holes
- Weight: 2.3g
- Firrmware : FLYWOOF405NANO
BS35A BLheli_S 2-4S 4in1
- Weight: 2.5g
- Mounting Hole: 16x16mm (M3)
- Input voltage: 2-6S
- Support Oneshot, Multishot, DShot150/300/600
Includes
- 1x Flywoo GOKU GN405 F405 Nano 2-6S AIO 16x16 Flight Controller w/ 35A 8Bit 4in1 ESC

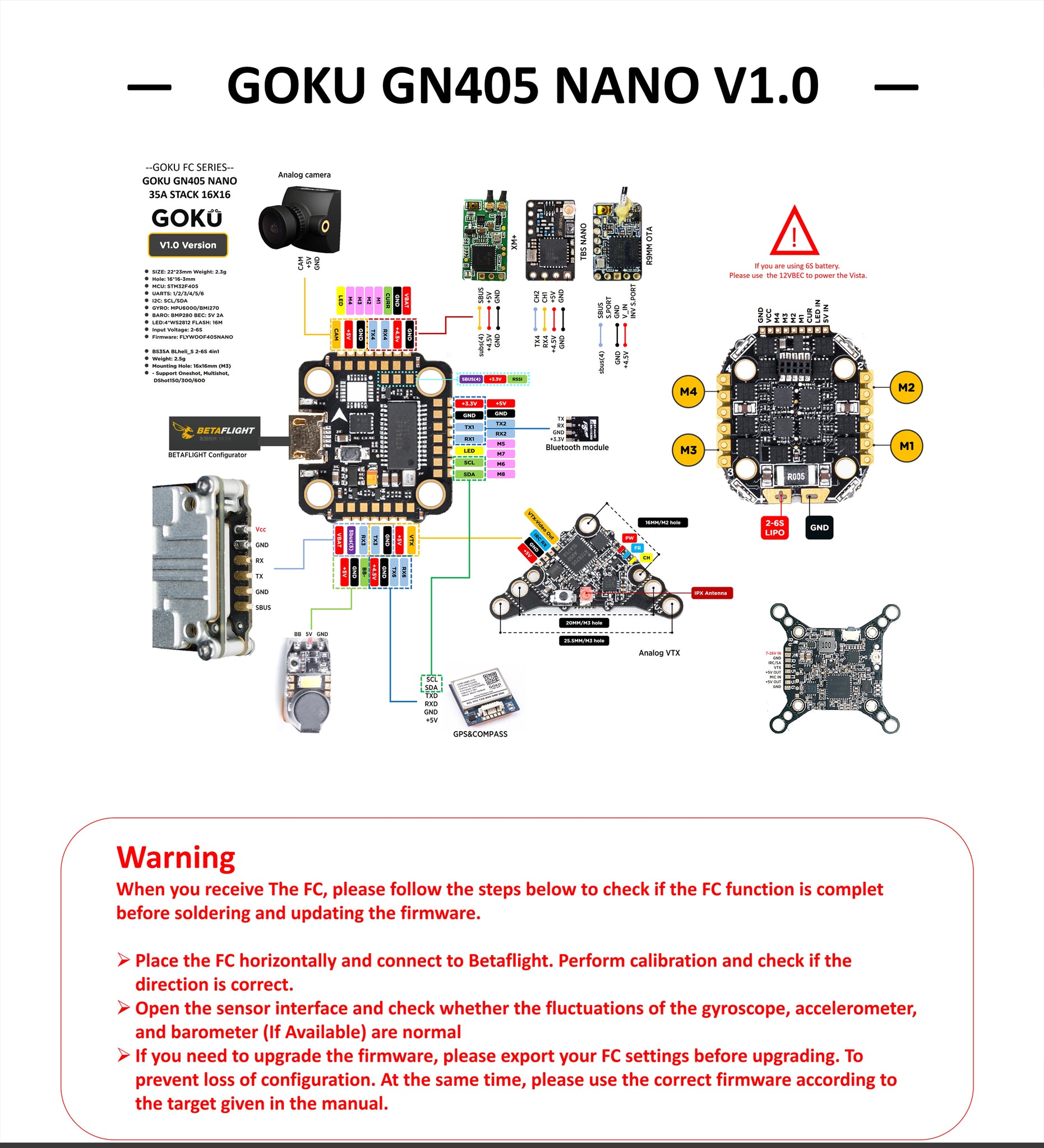

Wiring Diagram
