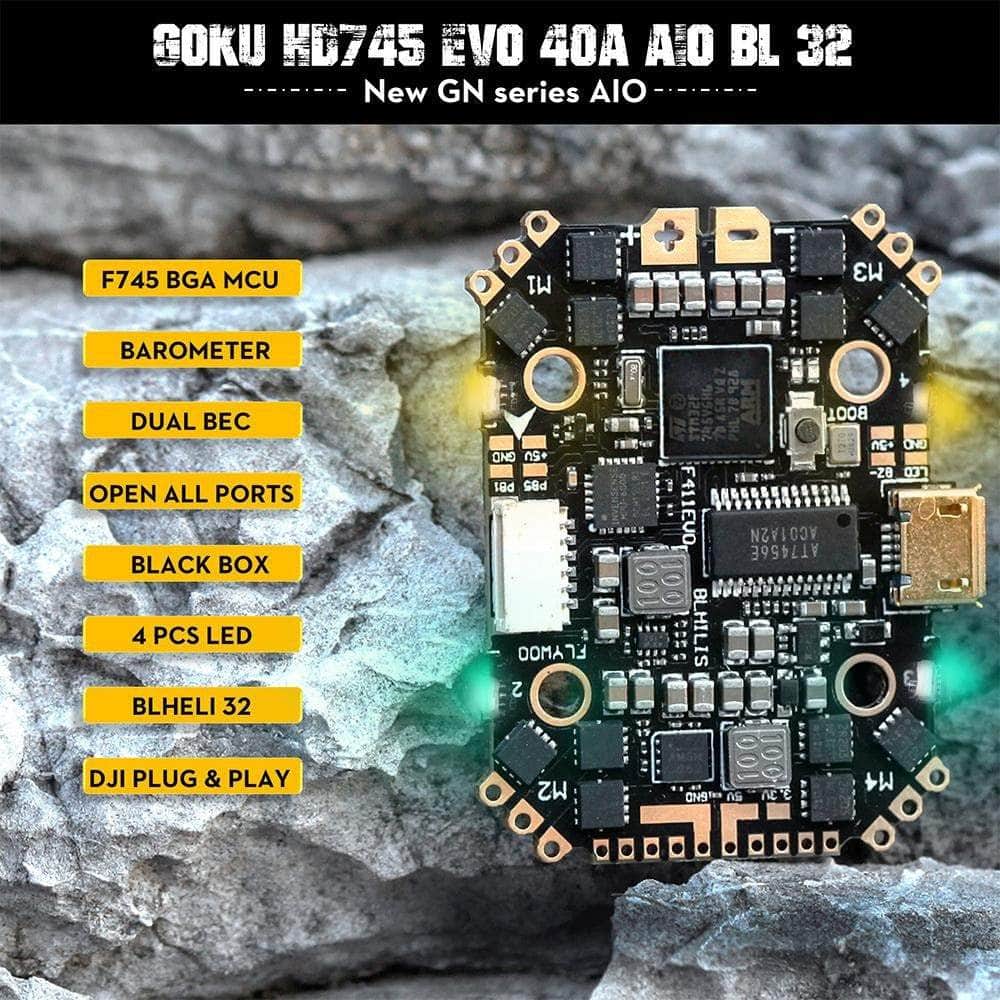

Experience a superior flight performance with the Flywoo GOKU GN F745 EVO HD AIO Flight Controller. This 20x20 board combines a F745 BGA chip with BLHELI-32 ESC firmware, and a dual BEC that supports 5V and 9V. Plug & Play solution for DJI, allows for less wires to solder and makes your quad an ease to work on. Furthermore, it has a barometer, black box, WS2812 LED, and 7 serial ports, so you get the most out of your all in one. The GOKU GN F745 EVO HD is the ultimate choice for AIOs!
Note: Works for both DJI and analog FPV setups.
Check out our other AIO boards as well as the rest of our Flywoo selection.
Features
- Perfect for super-light quads that need a low-profile 20x20 FC that doesn't skimp on features.
- F745 BGA chip and BLHELI_32 ESC firmware
- This AIO come installed with a MPU6000
- Supports 7 complete hardware serial ports
- Integrated 5V/9V Dual BEC
- Featuring a Black Box
- Current sensor
- Support BLheli / BLHELI_32
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire).
Specifications
- MCU: STM32F745 32-bit processor, 216MHz, 512Kbytes Flash
- IMU: MPU6000
- Barometer: BMP280
- Onboard LED：WS2812x4
- Onbord Storage: 8Mbytes for Blackbox logging
- 9V Power Out: 1.5A max（3S voltage input）
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 41x32mm
- Mounting Holes: 20x20mm
- Weight: 8.5g
- ESC: Built-in 40A BL_32 4in1 ESC
- Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_32
Includes
- Flywoo GOKU GN F745 EVO HD 2-6S AIO 20x20 AIO Flight Controller w/ 40A 32Bit 4in1 ESC
- 1x XT60H-M Power Lead
- 4x Black M2 grommets
- 1x Capacitor
- 1x Sticker

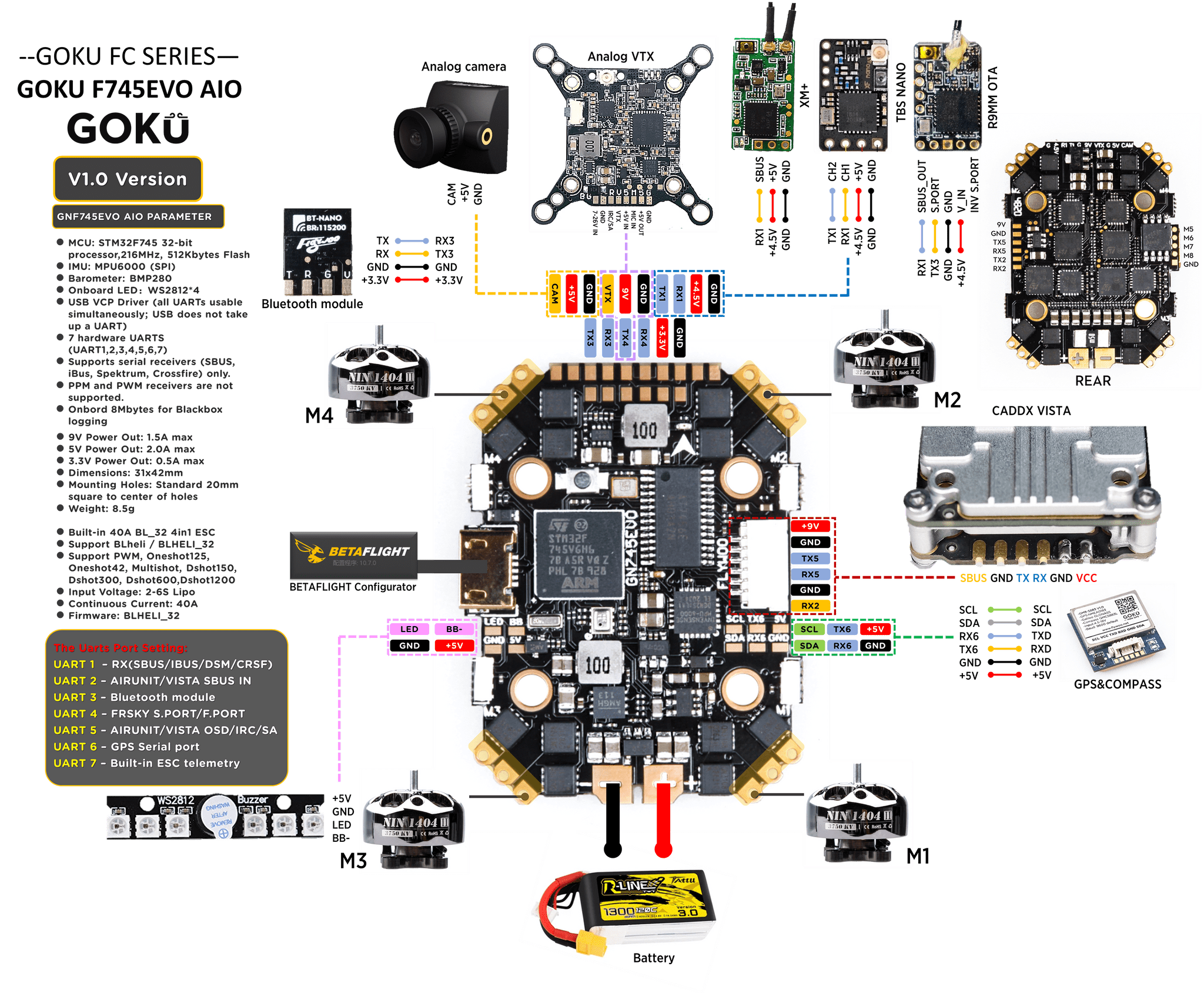

Wiring Diagram
